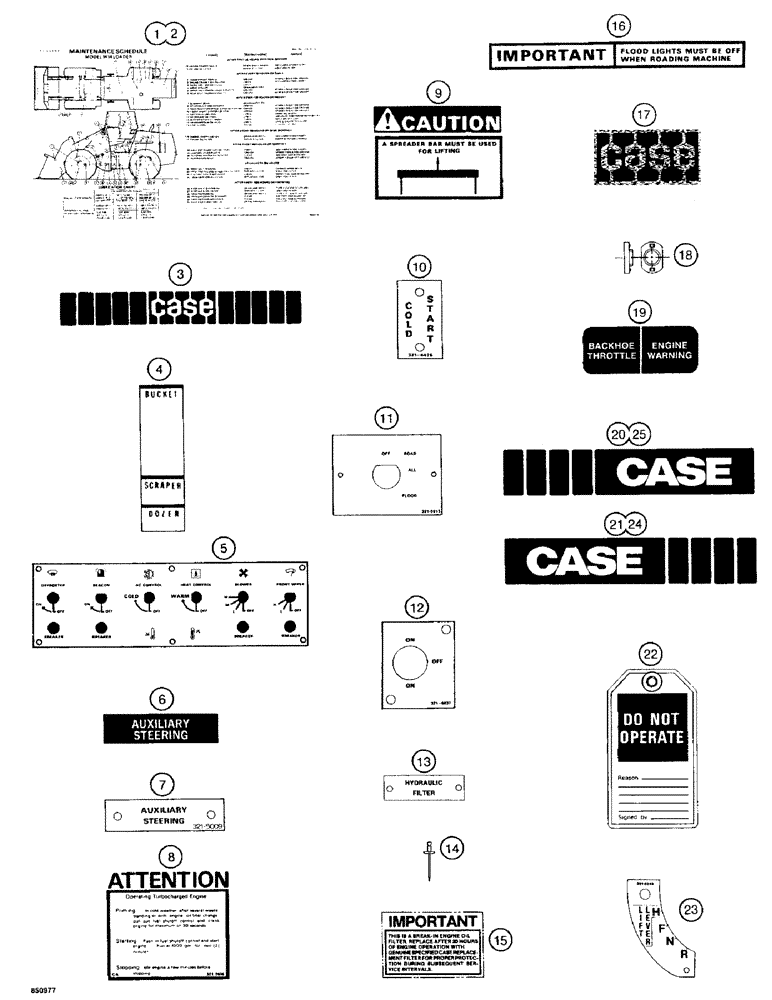

Запчасти Case W14 (648) - DECALS, FOR TAN AND YELLOW TRACTORS (09) - CHASSIS/ATTACHMENTS

1

L109628

INSTRUCTION

MAINTENANCE CHART - used on models with external hydraulic filter

1шт.

2

L109805

INSTRUCTION

MAINTENANCE CHART - used on models with backhoe

1шт.

3

321-3126

DECAL

- Case, front, if used, see Ref. 7 figure 644 for other available style

1шт.

4

321-2090

DECAL

- clam bucket position

1шт.

5

321-4137

DECAL

- cab switches, if used

1шт.

6

321-4479

DECAL

- auxiliary steering, if used

1шт.

7

321-5009

DECAL

PLATE - decal, auxiliary steering, if used

1шт.

8

321-2605

DECAL

- turbocharger protection

1шт.

9

321-3574

DECAL

- Caution, lift and tiedown instructions

2шт.

10

321-4425

DECAL

PLATE - decal, cold start

1шт.

11

321-5913

DECAL

PLATE - decal, Off-Road-All-Flood switch

1шт.

12

321-6037

DECAL

PLATE - decal, On-Off-On

1шт.

13

321-6313

DECAL

PLATE - decal, hydraulic filter

1шт.

14

151-525

RIVET,Pop, 1/8" x .275"

POP RIVET - used to fasten appropriate decals

1шт.

15

321-3863

DECAL

- oil filter

1шт.

16

321-4632

DECAL

- Important, floodlamp

1шт.

17

321-4739

EMBLEM

MEDALLION - Case

1шт.

18

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - special, push on, medallion

2шт.

19

321-1261

DECAL

- Warning and throttle, backhoe models only

1шт.

20

321-5129

DECAL

- Case, backhoe models

1шт.

21

321-5130

DECAL

- Case, backhoe models

1шт.

22

321-4614

TAG

- do not operate

1шт.

23

321-6243

DECAL

- transmission control, if used, see Ref. 6 figure 644 for alternate control decal

1шт.

24

L111854

DECAL

- Case, backhoe dipper

1шт.

25

L111855

DECAL

- Case, backhoe dipper

1шт.
