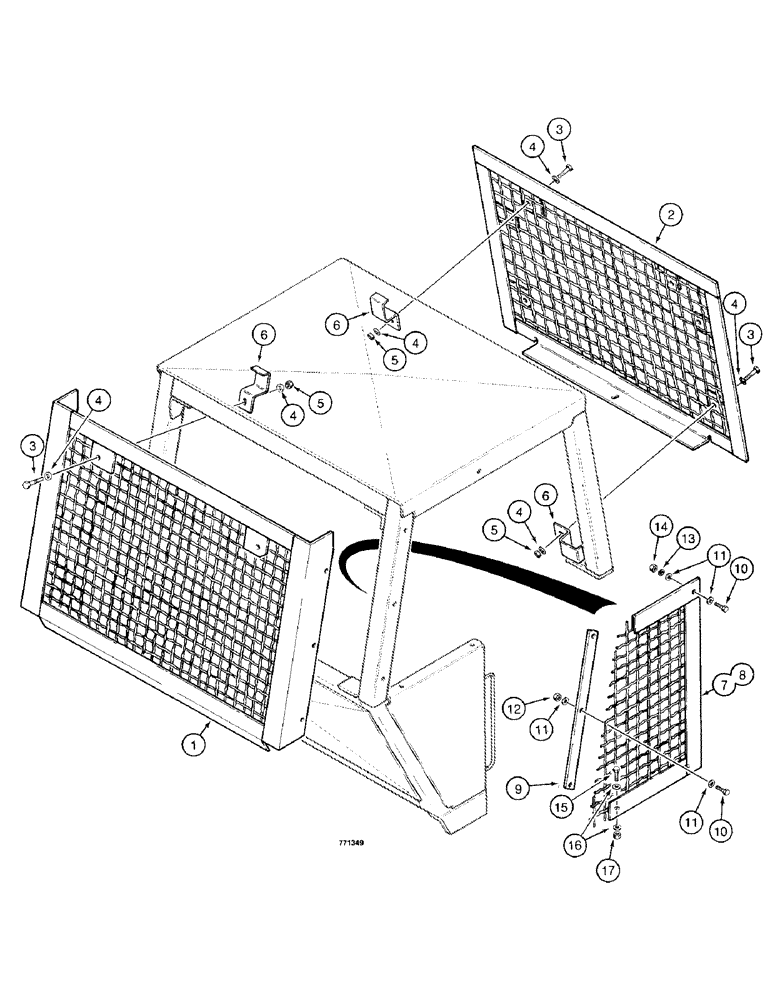

Запчасти Case W14 (643A) - CANOPY SCREENS, FORESTRY MODELS (09) - CHASSIS/ATTACHMENTS

1

L111500

SCREEN

- rear

1шт.

2

L111497

SCREEN

- front

1шт.

3

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

8шт.

4

95-8

WASHER,1/2"

flat 1/2"

16шт.

5

131-72

LOCK NUT,1/2"-13

NUT - hex, self-locking, NC 1/2"-13

8шт.

6

L76358

BRACKET - screen mounting

8шт.

7

L111498

SCREEN

- side, right-hand

1шт.

8

L111499

SCREEN

- side, left-hand

1шт.

9

L74980

PLATE

- screen mounting

2шт.

10

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2"-13 NC x 1-3/4"

8шт.

11

95-8

WASHER,1/2"

flat 1/2"

16шт.

12

131-72

LOCK NUT,1/2"-13

NUT - hex, self-locking, NC 1/2"-13

6шт.

13

92-8

LOCK WASHER,1/2"

2шт.

14

25-108

NUT,1/2"-13, G5

- hex, 1/2"-13 NC

3шт.

15

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

5шт.

16

95-6

WASHER,3/8"

- flat, 1/2"

9шт.

17

25-108

NUT,1/2"-13, G5

- hex, 1/2-13 NC

4шт.
