Запчасти Case W14 (642) - ROPS CANOPY (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

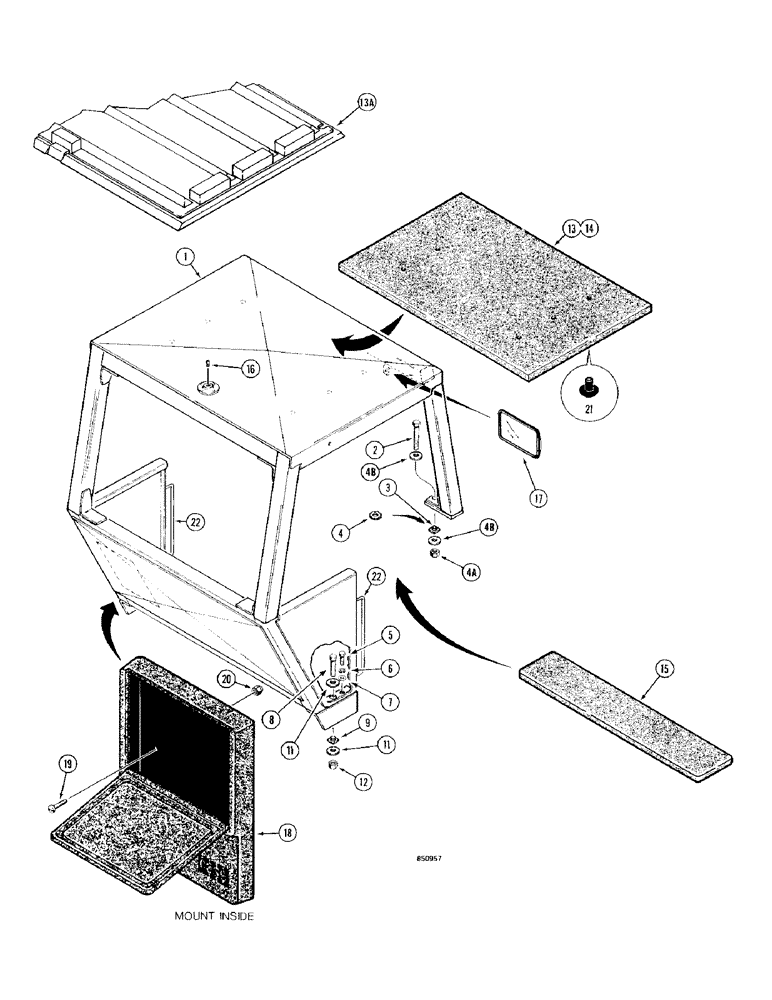

CANOPY - ROPS, machinery item, see figure 2 for ordering

1шт.

2

L114725

BOLT

- hex head, 3/4"-10 NC x 3-1/4", grade 8, special

2шт.

3

L52734

WASHER

- square, flat, 3/4"

2шт.

4

L74506

WASHER

- hardened, external tooth lock, if used, order L79179 washer

4шт.

4a

129-572

NUT,3/4"-10, G8

2шт.

4b

L79179

WASHER

- flat, 13/16", hardened

4шт.

5

26-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex head, 1/2"-13 NC x 1-3/4", grade 8

2шт.

6

92-8

LOCK WASHER,1/2"

2шт.

7

95-8

WASHER,1/2"

flat 1/2"

2шт.

8

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex head, 3/4"-10 NC x 2-1/2", grade 8

2шт.

9

L52734

WASHER

- square, flat, 3/4"

2шт.

10

RESERVED

1шт.

11

L79179

WASHER

- flat, 13/16", hardened

4шт.

12

129-572

NUT,3/4"-10, G8

2шт.

13

L105964

ROOF

HEADLINER - canopy, yellow, attaches to canopy weld studs with Ref. 21 retainer, if used

1шт.

13a

L114070

ROOF

HEADLINER - canopy, brown, self-retaining, used with L36277 headliner kit, if used

1шт.

14

345-57

ADHESIVE

- vinyl, Scotchgrip No. 1099, 1 pint, L105964 headliner, if used

1шт.

15

D55216

PAD,2" x 9"

PAD - non-skid, floor

4шт.

16

221-1036

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - square socket head, 1" NPT, if used

1шт.

17

L74714

MIRROR

ASSEMBLY - rear view, includes hardware

1шт.

18

A177376

BOX

- operators manual

1шт.

19

182-202

SCREW,Sl Pan Hd, 1/4" - 20 x 1/2"

MACHINE SCREW - pan head slotted, 1/4"-20 NC x 1/2"

3шт.

20

129-501

NUT,Crown, 1/4"-20

DOME NUT - 1/4"-20 NC

3шт.

21

R37161

RETAINER

- L105964 headliner, if used

6шт.

22

L52012

HOLDER

HANDRAIL -, Serial Range: welded-ROPS

2шт.

L36277

ROOF LINING

KIT - L114070 headliner retainer, includes (1) L114146 beacon switch bracket, shown on figure 206, (2) H429373 bar retainers which weld to the canopy, not shown, and installation instructions

1шт.
