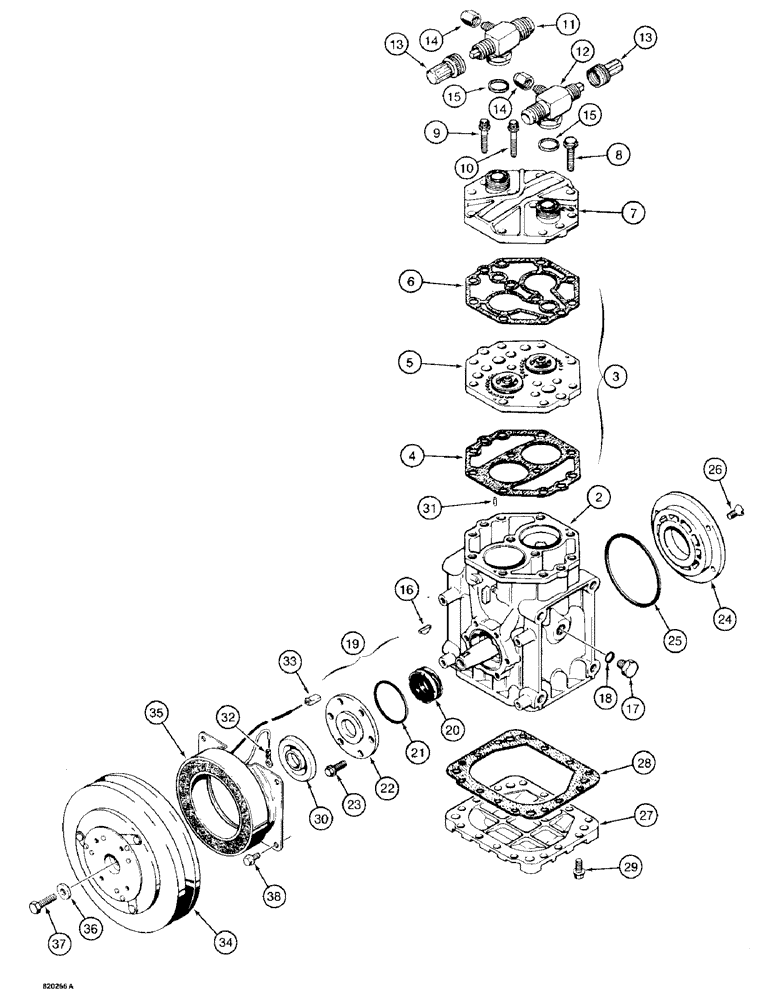

Запчасти Case W14 (640) - AIR CONDITIONING COMPRESSOR, AIR CONDITIONER CLUTCH (09) - CHASSIS/ATTACHMENTS

A177564

COMPRESSOR

COMPRESSOR ASSEMBLY - York No. ER201L-20186 (replaces A141060), Includes: Ref. 1 and 2

1шт.

417888C93

COMPRESSOR

Compressor Assy., A/C

1шт.

1924004C2

REMAN-A/C COMPRESSOR

Remanufactured Compressor

1шт.

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

1

RESERVED

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING, SHAFT AND PISTON ASSEMBLY - air compressor, Includes: Ref. 3 - 29

1шт.

3

A45420

VALVE

KIT - valve plate, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

GASKET - valve, Serial Range: plate-crankcase

1шт.

Part of gasket kit, P/N A42964

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - valve

1шт.

6

NSS

NOT SOLD SEPARAT

GASKET - cylinder head to valve plate

1шт.

Part of gasket kit, P/N A42964

1шт.

7

NSS

NOT SOLD SEPARAT

CYLINDER HEAD - compressor

1шт.

8

A42949

FLANGE BOLT

BOLT - hex, flange head, 5/16"-18 NC x 1-3/8"

8шт.

9

A42947

SCREW,5/16" - 18 x 1.375", Grade 6, Steel

SPARE PART SCREW - Ferry head, 5/16"-18 NC x 1-3/8", 12 point cap

2шт.

10

A42948

12 PT SCREW,5/16" - 18 x 1.516", Gr 6

SCREW - Ferry head, 5/16"-18 NC x 1-17/32", 12 point cap

2шт.

11

A42936

VALVE

VALVE ASSEMBLY - discharge, 1/2" port, Includes: Ref. 13 and 14

1шт.

12

A42937

VALVE

VALVE ASSEMBLY - suction, Includes: Ref. 13 and 14

1шт.

13

A42944

CAP

CAP - sleeve, valve stem

2шт.

14

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - hex, valve stem

2шт.

15

A42938

GASKET

GASKET - cylinder head

2шт.

16

A42939

KEY

KEY - crankshaft, No. 6

1шт.

17

114-210

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5, Full Thd

BOLT - hex head, 3/8"-24 NF x 1/2", plated, crankcase, filler and level

2шт.

18

NSS

NOT SOLD SEPARAT

O-RING - used with 114-210 bolt, Ref. 17

2шт.

Part of gasket kit, P/N A42964

1шт.

19

A48248

SEAL

KIT - seal, front crankshaft, Includes: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - crankshaft

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

Part of gasket kit, P/N A42964

1шт.

22

NSS

NOT SOLD SEPARAT

PLATE - seal retaining

1шт.

23

A42961

CAPTIVE WASHER SCREW,Hex, #10 - 24 x 0.469", Full Thd

BOLT - hex, flange head, 1/4"-20 NC x 11/16"

6шт.

24

NSS

NOT SOLD SEPARAT

HOUSING - crankcase, rear

1шт.

25

NSS

NOT SOLD SEPARAT

GASKET - rear housing

1шт.

Part of gasket kit, P/N A42964

1шт.

26

NSS

NOT SOLD SEPARAT

SCREW - rear, Serial Range: housing-crankcase

4шт.

27

NSS

NOT SOLD SEPARAT

PLATE - crankcase base

1шт.

28

NSS

NOT SOLD SEPARAT

GASKET - base plate

1шт.

Part of gasket kit, P/N A42964

1шт.

29

NSS

NOT SOLD SEPARAT

BOLT - base, Serial Range: plate-crankcase

12шт.

30

A42965

CAP

CAP - dust, crankshaft oil seal

1шт.

31

138-56

LOCK PIN,1/8" x 11/16", Slotted

PIN, 1/8" x 11/16", Slotted

2шт.

L70226

CLUTCH

CLUTCH ASSEMBLY - air conditioner compressor, Includes: Ref. 32 - 38

1шт.

32

223-95

TERMINAL CONNECTOR,Female, 14 - 16

TERMINAL - female, air conditioner clutch

1шт.

33

223-154

CONNECTOR, ELEC

CONNECTOR CONNECTOR - male, air condtioner clutch

1шт.

34

NSS

NOT SOLD SEPARAT

PULLEY - clutch, air conditioner

1шт.

35

D75864

COIL ASSY.

FIELD ASSEMBLY - clutch, air conditioner

1шт.

36

195-2019

WASHER

WASHER - flat, 5/16", special, air conditioner clutch

1шт.

37

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

BOLT, , Air conditioner clutch Hex, 5/16"-24 x 1 1/4", G5

1шт.

38

113-7

BOLT,Locking, 1/4" - 20 x 1/2", Gr 5, Full Thd

BOLT, Locking, 1/4"-20 x 1/2", G5, Full Thd, Air conditioner clutch

4шт.

A42964

GASKET

KIT - gasket, complete compressor overhaul, Includes: Refs. 4, 6, 18, 21, 25 and 28, air conditioner clutch

1шт.
