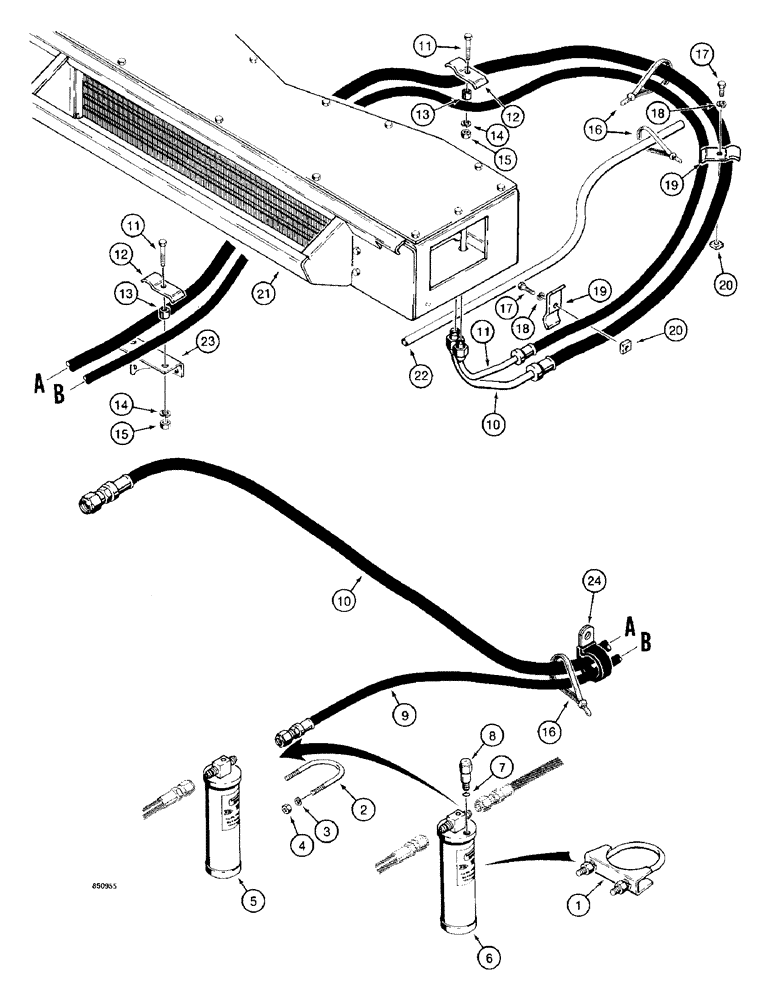

Запчасти Case W14 (638) - AIR CONDITIONING LINES (09) - CHASSIS/ATTACHMENTS

1

L72884

CLAMP

ASSEMBLY - includes hardware, if used

1шт.

2

L58772

U-BOLT

- if used

1шт.

3

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

4

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

5

L109036

EVAPORATOR

DRYER - includes relief valve

1шт.

5

L70154

CLEANER ASSY.

DRYER - without relief valve, order L109036

1шт.

6

L77169

CLEANER ASSY.

DRYER - with relief valve, order L109036

1шт.

7

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

- used with L77169

1шт.

8

L77168

LOCK VALVE

RELIEF VALVE - used with L77169

1шт.

9

L77029

HOSE ASSY.

HOSE - 131" (3327 mm) long, high pressure

1шт.

10

L77030

HOSE ASSY.

HOSE - 123" (3124 mm) long, low pressure

1шт.

11

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

12

L79797

CLAMP

- hose

2шт.

13

33126

BUSHING

SPACER - clamp

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

17

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

L79797

CLAMP

- hose

2шт.

20

25-286

NUT,Sq, 3/8"-16, G2, Hvy

- square, heavy, 3/8"-16 NC

2шт.

21

REF

INSTRUCTION

PLENUM - see figures 630 and 632

1шт.

22

L71740

TUBE,0.5" ID x 29" L

- drain

2шт.

23

L73911

BRACKET

- hose support

1шт.

24

R14192

CLAMP,2", Insul, 3/8" Bolt

- hose

1шт.
