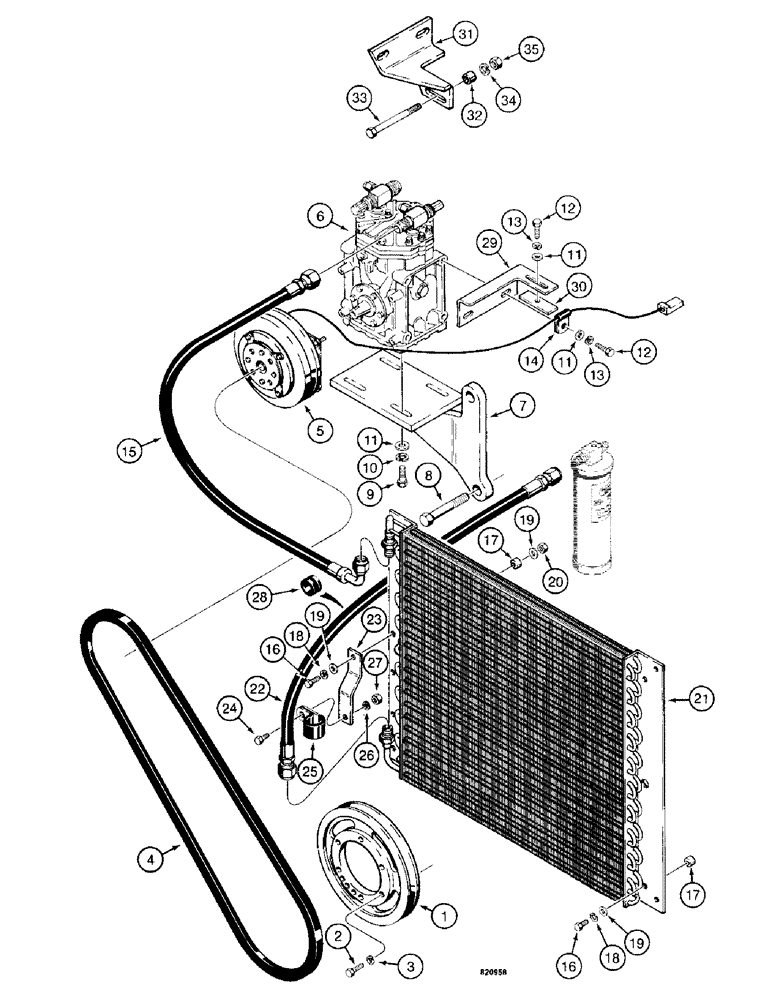

Запчасти Case W14 (636) - AIR CONDITIONING LINES (09) - CHASSIS/ATTACHMENTS

1

L72402

PULLEY

SPARE PART PULLEY - air conditioner drive

1шт.

2

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

3

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

6шт.

4

L59350

V-BELT,0.60" W x 56.00" L

V-BELT , Compressor 0.60" W x 56.00" L

1шт.

5

L70226

CLUTCH

CLUTCH ASSEMBLY - parts list figure 640

1шт.

6

A141060

COMPRESSOR

COMPRESSOR - air conditioning, parts list figure 640

1шт.

6

417888C93

COMPRESSOR

Compressor Assy., A/C

1шт.

6

1924004C2

REMAN-A/C COMPRESSOR

Reman For New P/N 417888C93

1шт.

6

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

7

L59346

SUPPORT

SUPPORT - compressor

1шт.

8

113-717

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

BOLT, Hex, 3/4"-10 x 3 1/2", G5

2шт.

9

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

BOLT, Hex, 3/8"-16 x 1 3/4", G5

4шт.

10

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

11

95-6

WASHER,3/8"

WASHER - flat, 3/8"

6-7шт.

12

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2-3шт.

13

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2-3шт.

14

D43839

CLAMP

CLAMP - wire

1шт.

15

L59076

HOSE ASSY.

HOSE - 24" (610 mm) long, Serial Range: compressor-condenser

1шт.

16

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/2", G5

4шт.

17

L52597

SPACER

SPACER - condenser

4шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

19

195-103

WASHER,5/16"

WASHER - flat, , plated 5/16"

6шт.

20

9635082

NUT,5/16" - 18, Gr 5

NUT, , LH side only 5/16"-18, G5

2шт.

21

L59400

CONDENSER

CONDENSER - air conditioner

1шт.

22

L59153

A/C HOSE,0.41" ID x 18.00", SAE J51 Type A

Condenser to dryer

1шт.

23

L70335

BRACKET

SPARE PART BRACKET - hose support

1шт.

24

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

25

D20302

CLAMP,7/8", Insul, 3/8" Bolt

CLAMP - hose

1шт.

26

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

27

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

28

D35078

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

GROMMET - hose

1шт.

29

L73478

SUPPORT

SUPPORT - compressor, no longer available, order Refs. 31 - 35

1шт.

30

L73654

SPACER

SPACER - used with L73478 support

1шт.

31

L74701

SUPPORT

SUPPORT - compressor

1шт.

32

L74703

SPACER

SPACER - used with L74701 support

1шт.

33

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

BOLT, Hex, 3/8"-16 x 4 1/2", G5

1шт.

34

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

35

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.
