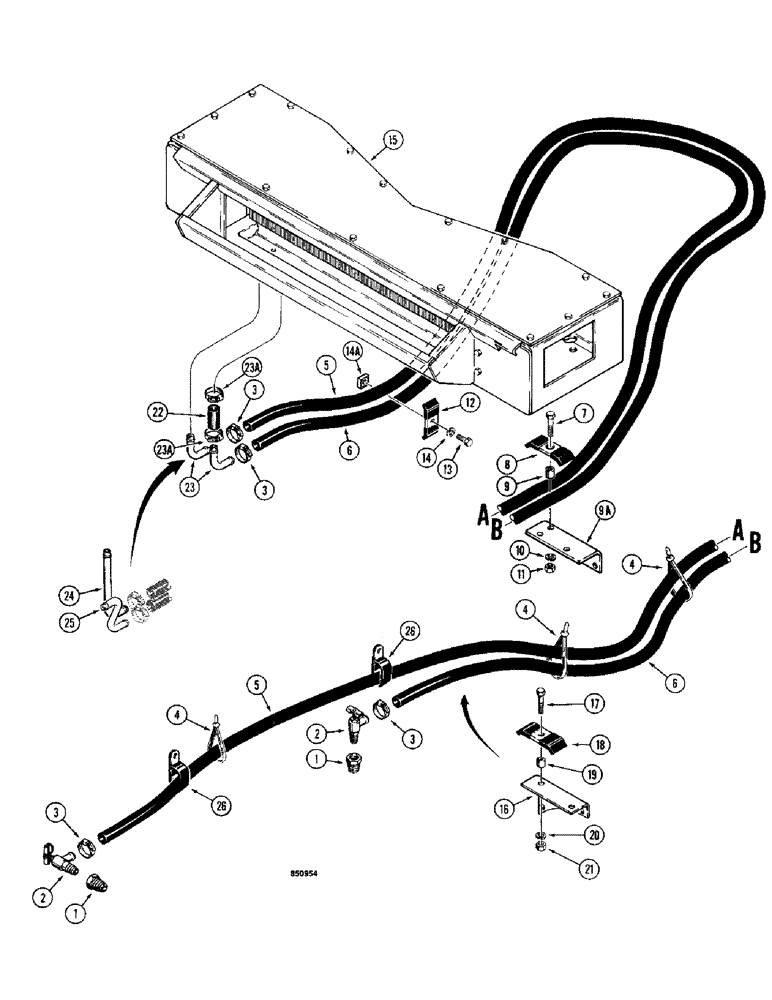

Запчасти Case W14 (634) - HEATER LINES, USED WITH BOX TYPE PLENUM, SEE PAGE 630, USED (09) - CHASSIS/ATTACHMENTS

1

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

- 1/2" x 3/8" NPT

2шт.

2

A16764

VALVE

- shutoff

2шт.

3

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

4шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

5

L53241

HOSE,3251.00 mm, SAE 20R3

HEATER HOSE 3251.00 mm, SAE 20R3

1шт.

Cut from Bulk Roll, P/N A42610

1шт.

6

L18327

HOSE,0.63" ID x 108.00", SAE 20R3

- 5/8", 16 mm, ID x 95", 2413 mm, long

1шт.

Cut from Bulk Roll, P/N A42610

1шт.

7

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

8

D40236

CLAMP

- hose

1шт.

9

33126

BUSHING

SPACER - clamp

1шт.

9a

L114711

BRACKET

- hose support

1шт.

10

92-6

LOCK WASHER,3/8"

1шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

12

D40236

CLAMP

- hose

1шт.

13

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

14

92-6

LOCK WASHER,3/8"

1шт.

14a

25-286

NUT,Sq, 3/8"-16, G2, Hvy

- square, heavy, 3/8"-16 NC

1шт.

15

REF

INSTRUCTION

PLENUM - see pages 630 and 632

1шт.

16

L73911

BRACKET

- hose support

1шт.

17

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

18

D40236

CLAMP

- hose

1шт.

19

33126

BUSHING

SPACER - clamp

1шт.

20

92-6

LOCK WASHER,3/8"

1шт.

21

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

1шт.

22

REF

INSTRUCTION

HOSE - 5/8", 16 mm, ID x 2", 51 mm, long, heater, used with box type plenum, see figure 630

1шт.

Cut from Bulk Roll, P/N A42610

1шт.

23

A60823

ELBOW

- 90 degree, used with box type plenum, see figure 630

2шт.

23a

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, used with box type plenum, see figure 630

2шт.

24

L100842

HEATER TUBE,147.5, 63.5 mm L

TUBE - inlet, used with open type plenum, see figure 632

1шт.

25

L100843

HEATER TUBE,127, 95 mm L

TUBE - outlet, used with open type plenum, see figure 632

1шт.

26

51200320

CLAMP

- hose, used with open type plenum, see figure 632

1шт.

A42610

LARGE HOSE

HOSE - bulk roll, not shown, 5/8", 16 mm, ID x 50 ft., 15.2 m, long, used with open type plenum, see figure 632

1шт.
