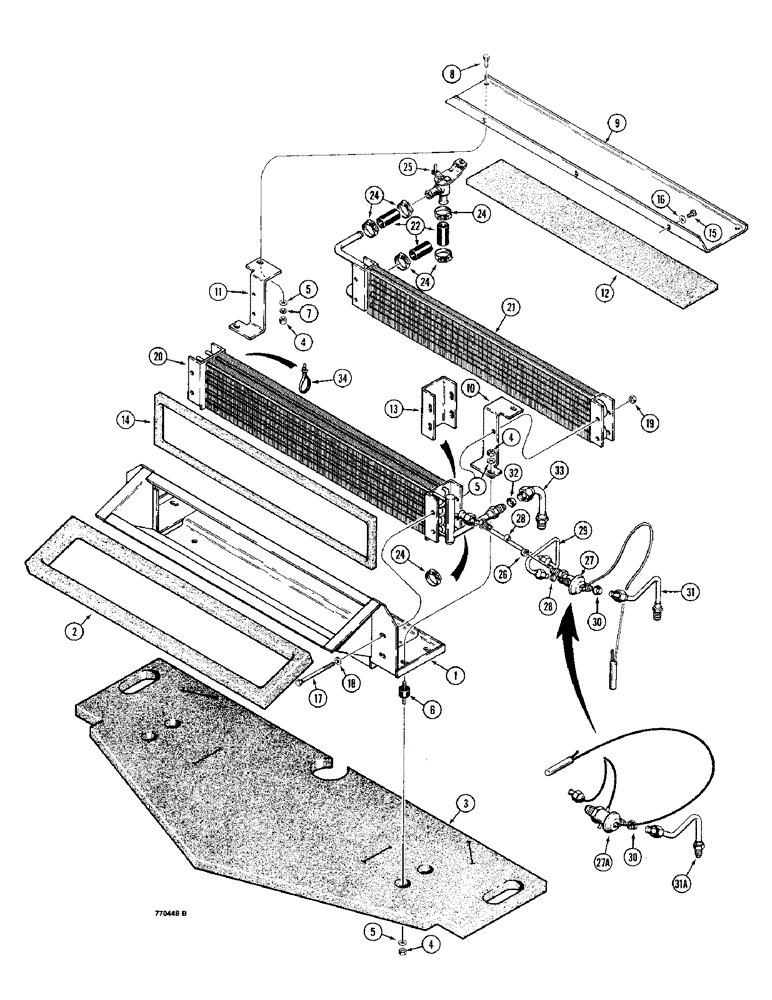

Запчасти Case W14 (632) - HEATER AND AIR CONDITIONING PLENUM AND RELATED PARTS, USED (09) - CHASSIS/ATTACHMENTS

1

L74336

PLATE

PLENUM - heater and air conditioning, for box type plenum, see figure 630

1шт.

2

L74265

SEAL

- plenum

1шт.

3

L74335

SEAL

- floor

1шт.

4

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

10шт.

5

195-102

WASHER,1/4"

- flat, , plated 1/4"

10шт.

6

F43229

MOUNTING PARTS

MOUNT - rubber

4шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

8

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

9

L74224

COVER

- plenum

1шт.

10

L76407

BRACKET

- right-hand

1шт.

11

L76408

BRACKET

- left-hand

1шт.

12

L74250

SEAL

- top

1шт.

13

L74228

BRACKET

SPACER - core, if used

2шт.

14

L74249

SEAL

SEAL - rear

1шт.

15

187-1054

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - hex slotted washer head, self-tapping, No. 10 - 16 NC x 1/2", plated

3шт.

16

195-513

WASHER,#10

- flat, No. 10

3шт.

17

13-460

BOLT - hex head, 1/4"-20 NC x 3-3/4", if used Hex, 1/4"-20 x 3 3/4", G5

4шт.

17

13-480

CAP,Hex, 1/4" - 20 x 5", Gr 5

BOLT - hex head, 1/4"-20 NC x 5", if used

4шт.

18

195-102

WASHER,1/4"

- flat, , plated 1/4"

4шт.

19

131-2

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4"-20 NC

4шт.

20

F63646

EVAPORATOR

- evaporator

1шт.

21

L77526

CORE

- heater

1шт.

22

REF

INSTRUCTION

HOSE - 5/8", 16 mm, ID x 2", 51 mm, long, see below

3шт.

Cut from Bulk Roll, P/N A42610

1шт.

23

RESERVED

1шт.

24

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

6шт.

25

F63865

VALVE

- heater temperature control

1шт.

26

222-994

GASKET,1/2 Tube, Fl, Copper

- copper, 1/2" (13 mm)

1шт.

27

F63726

VALVE

- expansion, no longer available, order F64389, Ref. 27A, and L107772, Ref. 31A

1шт.

27a

F64389

VALVE

- expansion

1шт.

28

222-991

GASKET,1/4 Tube, Fl, Copper

- copper, 1/4" (6 mm)

2шт.

29

F43391

TUBE,0.25" OD

- used with F63726 valve, Ref. 27

1шт.

30

222-993

GASKET,3/8 Tube, Fl, Copper

(9 mm) 3/8 Tube, Fl, Copper

1шт.

31

F43389

TUBE,0.375" OD

- coolant, used with F63726 valve, Ref. 27

1шт.

31a

L107772

TUBE,0.375" OD

- high pressure assembly, used with F64389 valve, Ref. 27A

1шт.

32

222-995

SEALING WASHER,15.88mm ID

- copper, 5/8" (16 mm)

1шт.

33

F43390

TUBE,0.625" OD x 2.1, 3.92" L

- gas, low pressure core

1шт.

34

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

A42610

LARGE HOSE

HOSE - bulk roll, not shown, 5/8", 16 mm, ID x 50 ft., 15.2 m, long

1шт.
