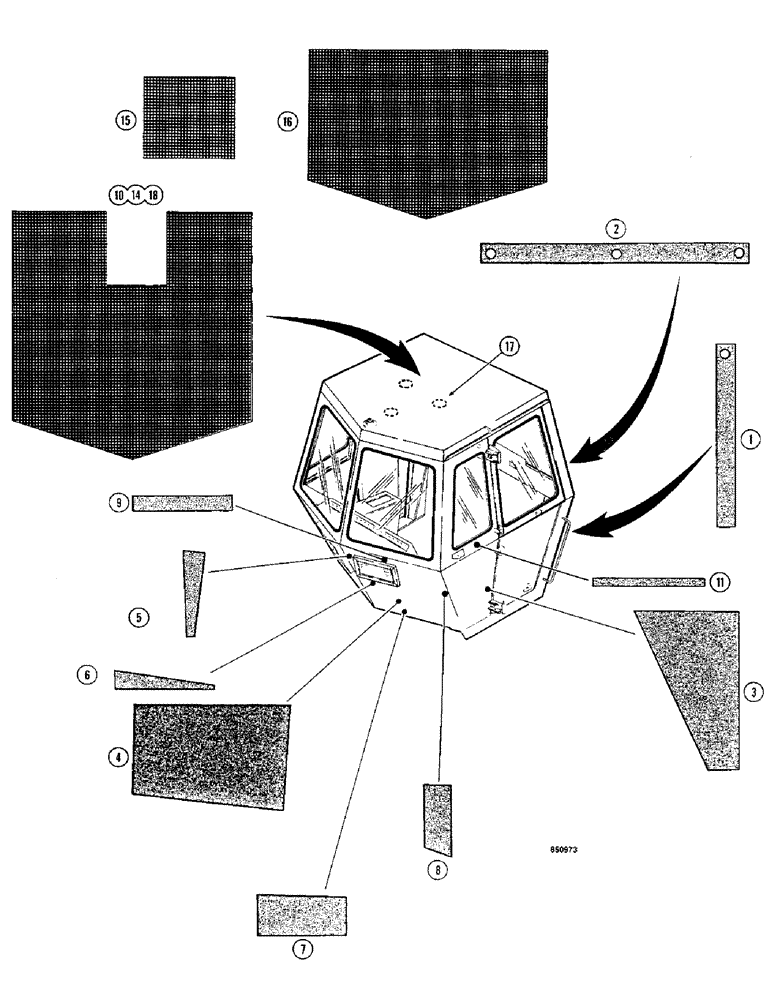

Запчасти Case W14 (626) - CAB SEALS AND PADS, USED BEFORE CAB SN 27750 (09) - CHASSIS/ATTACHMENTS

1

D87127

FOAM

- cowl

2шт.

2

N9062

INSULATOR

SEAL - rubber, cab to tractor, under windshield

1шт.

3

D71526

FOAM

- side panel, rear

2шт.

4

D72726

FOAM

- rear, lower

2шт.

5

D71531

FOAM

- center, between filters

2шт.

6

D71532

FOAM

- center, below filters

2шт.

7

D78387

FOAM

- outer sides of filters

2шт.

8

D71534

FOAM

- rear, outer side edges

2шт.

9

D70706

FOAM

- above filters, cut to desired width

2шт.

10

D71508

HEADLINER - one-piece, orange, foam without vinyl surface, no longer used, order N8644, Ref. 18

2шт.

11

REF

INSTRUCTION

FOAM - 17" (432 mm) long, at window hold back latch, cut from L35756 bulk (Ref. 12)

4шт.

12

L35756

SEALING STRIP

FOAM - bulk, 3/8" x 1" x 50 ft. (10 mm x 25 mm x 15.2 metres), not shown

1шт.

13

A55582

PAD

- non-skid, door, not shown

2шт.

14

D83140

ROOF

HEADLINER - one-piece, orange, foam with vinyl surface, 2" thick, no longer available, order N8644, Ref. 18

1шт.

15

D76961

ROOF

HEADLINER - sectioned, front, no longer used, order N8644, Ref. 18

2шт.

16

D76960

ROOF

HEADLINER - sectioned, rear, no longer used, order N8644, Ref. 18

1шт.

17

R37161

RETAINER

BUTTON - headliner

3шт.

18

N8644

FOAM

HEADLINER - yellow, 1" thick, if used

1шт.
