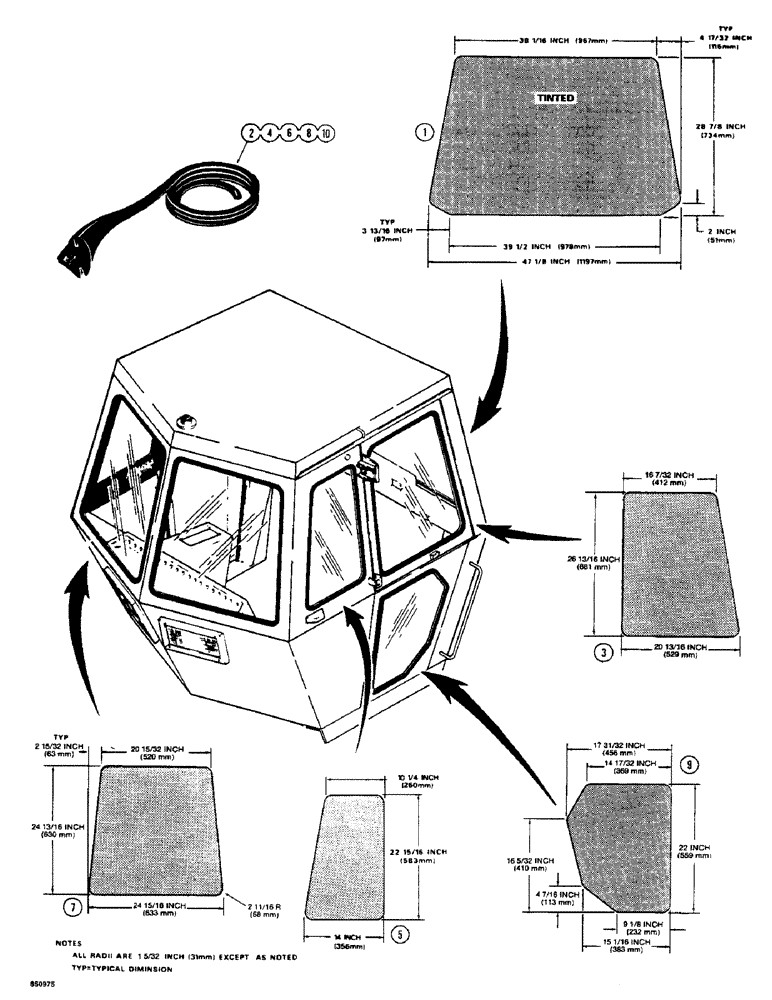

Запчасти Case W14 (624) - CAB GLASS AND MOLDINGS, CAB SERIAL NUMBER 53700 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

GLASS - windshield

1шт.

2

REF

INSTRUCTION

MOULDING - windshield, 140-1/8", 3559 mm, long

1шт.

Cut from Bulk, P/N L35717

1шт.

3

NSS

NOT SOLD SEPARAT

GLASS - upper door

2шт.

4

REF

INSTRUCTION

MOULDING - upper door glass, 91-1/8", 2315 mm, long

2шт.

Cut from Bulk, P/N L35717

1шт.

5

NSS

NOT SOLD SEPARAT

GLASS - side panel

2шт.

6

REF

INSTRUCTION

MOULDING - side panel glass, 76", 1930 mm, long

2шт.

Cut from Bulk, P/N L35717

1шт.

7

NSS

NOT SOLD SEPARAT

GLASS - rear window

2шт.

8

REF

INSTRUCTION

MOULDING - rear window glass, 97", 2464 mm, long

2шт.

Cut from Bulk, P/N L35717

1шт.

9

NSS

NOT SOLD SEPARAT

GLASS - lower left hand door and lower right hand panel

2шт.

10

REF

INSTRUCTION

MOULDING - lower glass, 73-1/2", 1867 mm, long

2шт.

Cut from Bulk, P/N L35717

1шт.

L35717

GASKET

MOULDING - bulk, 50 ft., 15.2 m, roll

1шт.
