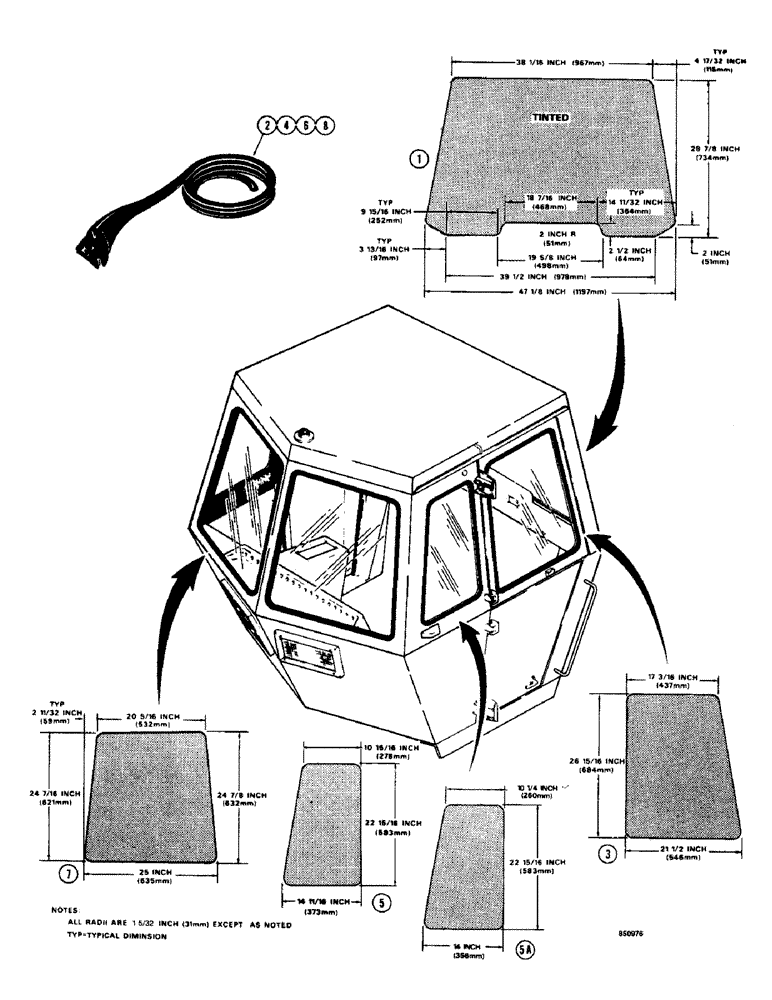

Запчасти Case W14 (622) - CAB GLASS AND MOLDINGS, BEFORE CAB SERIAL NUMBER 53700 (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

GLASS - windshield

1шт.

2

REF

INSTRUCTION

MOLDING - windshield, 149", 3785 mm, long, used before cab SN 27750

1шт.

Cut from Bulk, P/N A42677

1шт.

2

REF

INSTRUCTION

MOLDING - windshield, 149", 3785 mm, long, used on cab SN 27750 thru 53699

1шт.

Cut from Bulk, P/N L35717

1шт.

3

NSS

NOT SOLD SEPARAT

GLASS - door

2шт.

4

REF

INSTRUCTION

MOLDING - door, 96", 2438 mm, long, used before cab SN 27750

2шт.

Cut from Bulk, P/N A42677

1шт.

4

REF

INSTRUCTION

MOLDING - door, 96", 2438 mm, long, used on cab SN 27750 thru 53699

2шт.

Cut from Bulk, P/N L35717

1шт.

5

NSS

NOT SOLD SEPARAT

GLASS - side panel, used before cab SN 27750

2шт.

5a

NSS

NOT SOLD SEPARAT

GLASS - side panel, used on cab SN 27750 thru 53699

2шт.

6

REF

INSTRUCTION

MOLDING - side panel, 73", 1854 mm, long, used before cab SN 27750

2шт.

Cut from Bulk, P/N A42677

1шт.

6

REF

INSTRUCTION

MOLDING - side panel, 73", 1854 mm, used on cab SN 27750 thru 53699

2шт.

Cut from Bulk, P/N L35717

1шт.

7

NSS

NOT SOLD SEPARAT

GLASS - rear window

2шт.

8

REF

INSTRUCTION

MOLDING - rear window, 98", 2489 mm, long, used before cab SN 27750

2шт.

Cut from Bulk, P/N A42677

1шт.

8

REF

INSTRUCTION

MOLDING - rear window, 98", 2489 mm, long, used on cab SN 27750 thru 53699

2шт.

Cut from Bulk, P/N L35717

1шт.

A42677

MOLDING

- bulk, 50 ft. (15.2 m) roll

1шт.

L35717

GASKET

MOLDING - bulk, 50 ft. (15.2 m) roll

1шт.
