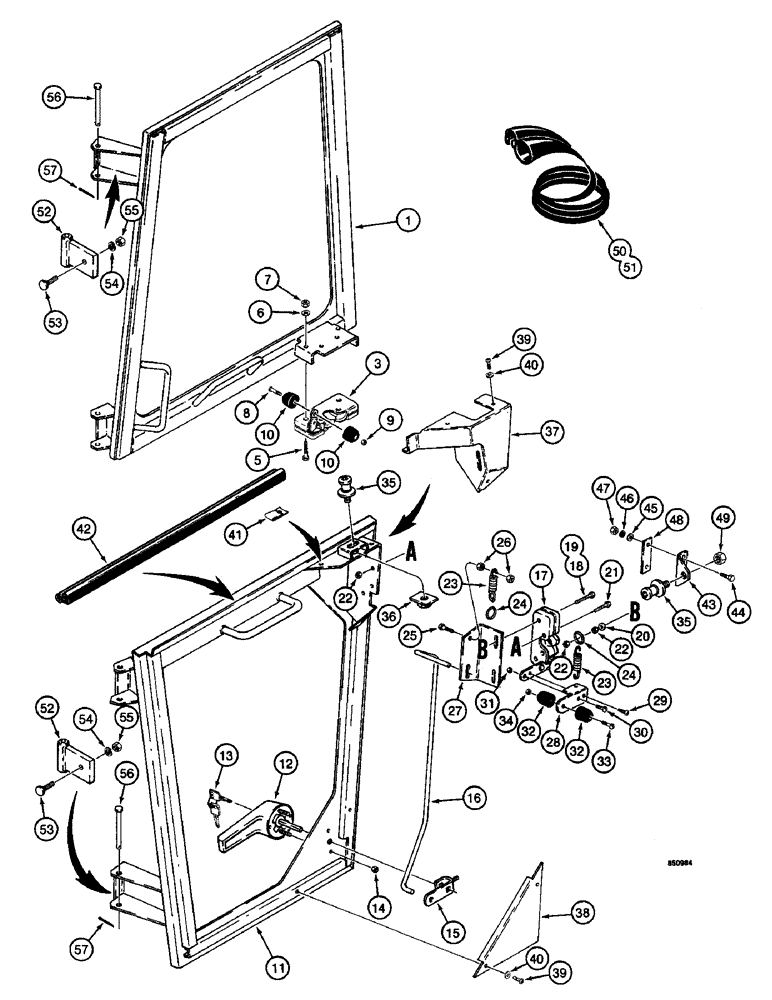

Запчасти Case W14 (618) - CAB DOORS, CAB SN 53700 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

N9849

DOOR ASSY.

DOOR ASSEMBLY - upper, left-hand, Includes: Ref. 3 - 10

1шт.

2

N9850

DOOR ASSY.

DOOR ASSEMBLY - upper, right-hand, not shown, Includes: Ref. 3 - 10

1шт.

3

F45136

LATCH ASSY.

LATCH - upper door, left-hand

1шт.

4

F44925

LATCH

- upper door , right-hand, not shown

1шт.

5

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.

6

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

4шт.

7

86625061

NUT,1/4"-20, GB

NUT - hex, 1/4"-20 NC, plated

4шт.

8

182-544

SCREW,Slotted Pan Hd, #10-24 x 1 1/4"

MACHINE SCREW - pan head slotted, No. 10 - 24 NC x 1-1/4", plated

1шт.

9

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

1шт.

10

L35871

FENDER

BUMPER - rubber

2шт.

11

N9851

DOOR

ASSEMBLY - lower, left-hand, includes Refs. 12 - 42

1шт.

12

F66157

HANDLE

- outside, locking

1шт.

13

A77313

SET OF 2 KEYS

KEY - handle, set of two, same as ignition key

1шт.

14

86632551

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

15

N9879

ARM

- latch, lower

1шт.

16

N9880

ROD

- latch pull

1шт.

17

F44925

LATCH

- lower door

1шт.

18

113-132

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex head, 1/4"-20 NC x 1-3/4", plated, upper

1шт.

19

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5, Lower

1шт.

20

195-518

WASHER,1/4", SAE

- flat, 1/4", plated, upper and lower bolts only

2шт.

21

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Center Hex, 1/4"-20 x 1 1/4", G5

2шт.

22

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4"-20 NC, plated

4шт.

23

L35748

SPRING

- latch pull

2шт.

24

N9883

OIL SEAL

RING - spring retaining

2шт.

25

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Spring Hex, 1/4"-20 x 1", G5

1шт.

26

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4"-20 NC, plated

2шт.

27

N9882

BRACKET

- latch and spring mounting

1шт.

28

N9884

LEVER

- latch release

1шт.

29

187-1109

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW - pan Phillips head, self-tapping, No. 8 - 32 NC x 1/2", plated

1шт.

30

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

MACHINE SCREW - pan head slotted, No. 10 - 24 NC x 1/2", plated

1шт.

31

86632551

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

1шт.

32

L35871

FENDER

BUMPER - rubber

2шт.

33

182-578

SCREW,Slotted Pan Hd, #10-24 x 1"

MACHINE SCREW - pan head slotted, No. 10 - 24 NC x 1", plated

1шт.

34

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

1шт.

35

N8637

LATCH

STRIKER - door

3шт.

36

N9876

PLATE ASSY.

PLATE - with weld nut, for upper door striker

2шт.

37

L115318

COVER

- upper, door latch

1шт.

38

N9881

COVER

- lower, door handle

1шт.

39

182-559

SCREW,Cross Pan Hd, #10-24 x 3/4"

MACHINE SCREW - pan Phillips head, No. 10 - 24 NC x 3/4", plated

5шт.

40

195-516

WASHER,#12

- flat, No. 10, plated

5шт.

41

131-619

SPRING NUT,J, #10 - 24, 0.031" Thk

- J-type, No. 10 - 24 NC

3шт.

42

REF

INSTRUCTION

SEAL - top of lower door, inside striker area, 24-1/2", 622 mm, long

1шт.

Cut from Bulk Roll, P/N F43086

1шт.

43

N9877

BRACKET

- striker mounting, for lower left-hand door holdback

1шт.

44

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

45

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

2шт.

46

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

47

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

48

N8632

SHIM

- striker

1шт.

49

131-926

NUT,Flg, USR, 7/16"-14

- self-locking, flange type, 7/16"-14 NC, plated

1шт.

50

REF

INSTRUCTION

SEAL - left-hand door frame, 155-1/4", 3943 mm, long

1шт.

Cut from Bulk Roll, P/N F43086

1шт.

51

REF

INSTRUCTION

SEAL - right-hand upper door frame, 108-1/2", 2756 mm

1шт.

Cut from Bulk Roll, P/N F43086

1шт.

52

D71528

HINGE

- door, bolt-on

3шт.

53

111-316

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G5

3шт.

54

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

55

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

56

N6990

AXLE PIN

PIN - hinge

6шт.

57

N6991

PIN

COTTER PIN - 5/32" x 3/4", brass

6шт.

F43086

SEAL

- rubber, bulk roll, 100 ft., 30.48 m, long

1шт.
