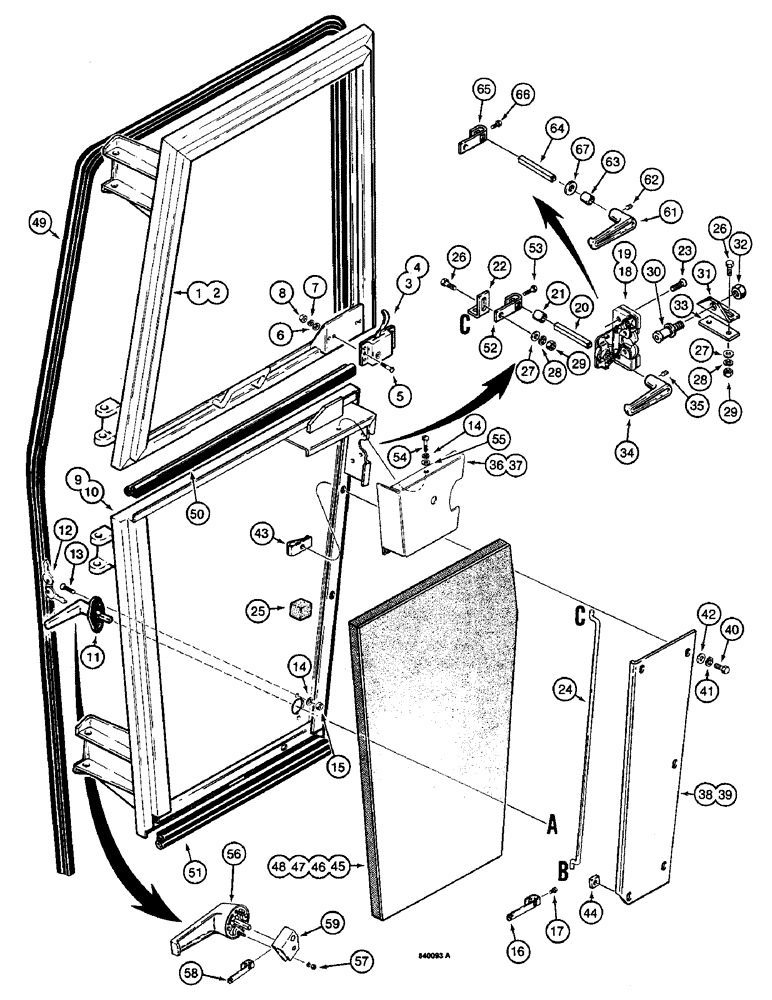

Запчасти Case W14 (614) - CAB DOORS, CAB SN 44769 THRU 53699 (09) - CHASSIS/ATTACHMENTS

1

N6994

DOOR

ASSEMBLY - upper, right-hand, service replacement, not shown, includes Refs. 24-29 on figure 604, and all Refs. on figure 608

1шт.

2

N6995

DOOR

ASSEMBLY - upper, left-hand, service replacement, includes Refs. 24-29 on figure 604, and all Refs. on figure 608

1шт.

3

D71511

LATCH

- upper door, left-hand, not shown

1шт.

4

D71512

LATCH

- upper door, right-hand

1шт.

5

187-582

SELF-TAP SCREW,0.19"-32 x 1/2"

SCREW - hex head, self-tapping, No. 10 - 32 NF x 1/2"

4шт.

6

195-513

WASHER,#10

- flat, No. 10, plated

4шт.

7

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

WASHER, LOCK, #10

4шт.

8

129-37

NUT,#10-32

4шт.

9

N8622

DOOR

ASSEMBLY - lower, right-hand, not shown

1шт.

10

N8621

DOOR

ASSEMBLY - lower, left-hand

1шт.

11

D83139

HANDLE

ASSEMBLY - outside, locking, mounting holes on 1-13/16" centers, includes D83205 keys, see repair kit on figure 614, Includes: Ref. 12

2шт.

12

D83205

KEY

- set of two

1шт.

13

182-532

SCREW,Sl Pan Hd, #10 - 32 x 3/4"

MACHINE SCREW - pan head slotted, No. 10 - 32 NF x 3/4"

4шт.

14

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

6шт.

15

129-37

NUT,#10-32

4шт.

16

N9750

LATCH

ARM - latch, bottom

2шт.

17

22-48

SELF-TAP SCREW,Hex, 1/4" - 20 x 1/2", Gr 2

BOLT - hex head, self-tapping, 1/4"-20 NC x 1/2"

2шт.

18

D88774

LATCH ASSY.

LATCH - door, left-hand

2шт.

19

D88776

LATCH ASSY.

LATCH - door, right-hand

2шт.

20

N8634

PIN

SHAFT - door latch

2шт.

21

N8633

SPACER

- door latch

2шт.

22

N8642

BRACKET

- latch rod

2шт.

23

443-12512

SCREW,Cross Flat Hd, 1/4"-20 x 3/4"

(Replaces 171-250 ) Cross Flat Hd, 1/4"-20 x 3/4"

8шт.

24

D71516

ROD

- latch pull

2шт.

25

REF

INSTRUCTION

STRIP - foam, 1" (25 mm) long, if used, cut from L35741 bulk, see bottom of figure 614

2шт.

26

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

27

195-102

WASHER,1/4"

- flat, 1/4"

6шт.

28

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

29

25-104

NUT,1/4"-20, G5

6шт.

30

N8637

LATCH

STRIKER - door

2шт.

31

N8641

BRACKET

- striker

2шт.

32

131-926

NUT,Flg, USR, 7/16"-14

- hex, self-locking, 7/16"-14 NC

2шт.

33

N9632

HUB

SHIM - bracket

1шт.

34

F63925

HANDLE

- inside, includes set screw, see repair kit on figure 614, Includes: Ref. 35

2шт.

35

176-48

SET SCREW,5/16"-18 x 1 1/4", Slotted

- slotted, cone point 5/16"-18 NC x 1/4"

1шт.

36

N8639

COVER

- latch, left-hand

1шт.

37

N8640

COVER

- latch, right-hand, not shown

1шт.

38

N8630

PANEL

- door cover, right-hand, not shown

1шт.

39

N8629

PANEL

- door cover, left-hand

1шт.

40

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

10шт.

41

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

10шт.

42

195-102

WASHER,1/4"

- flat, 1/4"

10шт.

43

131-646

SPRING NUT,Tinn, U, 1/4"-20

- U-type

8шт.

44

129-504

NUT,Sq, 1/4"-20

- square, 1/4"-20 NC

2шт.

45

D71514

FOAM

- lower door, right hand, not shown, black

1шт.

46

D71515

INSULATOR

FOAM - lower door, left hand, black

1шт.

47

N8627

FOAM

- lower door, right hand, not shown, brown

1шт.

48

N8628

FOAM

- lower door, left hand, brown

1шт.

49

REF

INSTRUCTION

SEAL - door frame, 173" (4394 mm) long, cut from F43086 bulk seal, see below

2шт.

Cut from Bulk Roll, P/N F43086

1шт.

50

REF

INSTRUCTION

SEAL - top of lower door, 24" (610 mm) long, cut from F43086 bulk seal, see below

2шт.

Cut from Bulk Roll, P/N F43086

1шт.

51

REF

INSTRUCTION

SEAL - bottom of lower door, 18" (457 mm) long, cut from F43086 bulk seal, see below

2шт.

Cut from Bulk Roll, P/N F43086

1шт.

52

N9750

LATCH

ARM - latch, top

2шт.

53

22-48

SELF-TAP SCREW,Hex, 1/4" - 20 x 1/2", Gr 2

BOLT - hex head, self tapping, 1/4"-20 NC x 1/2", if used

2шт.

54

182-557

SCREW,Cross Pan Hd, #10-32 x 3/4"

- pan head, No. 10 - 32 NF x 3/4"

2шт.

55

195-513

WASHER,#10

- flat, No. 10

2шт.

L36299

KIT

- repair, outside handle, left hand door, Includes: Ref. 56 - 60

1шт.

L36300

KIT

- repair, outside handle, right hand door, not shown, Includes: Ref. 56 - 60

1шт.

56

F66157

HANDLE

- outside, cut shaft to fit as needed, use ignition keys

1шт.

57

86632551

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

58

N9879

ARM

- latch, discard set screw included with arm

1шт.

59

L117073

BRACKET

- support, left-hand door

1шт.

60

L117072

BRACKET

- support, right-hand door, not shown

1шт.

L36298

KIT

- repair, inside handle, right-hand or left-hand door, Includes: Ref. 61 - 67

1шт.

61

F63925

HANDLE

- inside, Includes: Ref. 62 - 67

1шт.

62

176-48

SET SCREW,5/16"-18 x 1 1/4", Slotted

- slotted, cone point, 5/16"-18 NC x 1/4"

1шт.

63

D72729

BUSHING

SPACER - door latch, used before cab SN 44769

1шт.

63

N8633

SPACER

- door latch, used on cab SN 44769 -h 53699

1шт.

64

L117190

AXLE PIN

SHAFT - door handle, short, used before cab SN 44769

1шт.

64

L117185

PIN

SHAFT - door handle, long, used on cab SN 44769 - 53699

1шт.

65

L117184

ARM

- latch

1шт.

66

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

67

195-529

WASHER,7/16", SAE

- flat, 7/16", plated, used as shim

1шт.

L35741

FOAM

- bulk, 50 ft (15.2 m) long

1шт.

F43086

SEAL

- bulk roll, 100 ft., 3048 cm, long

1шт.
