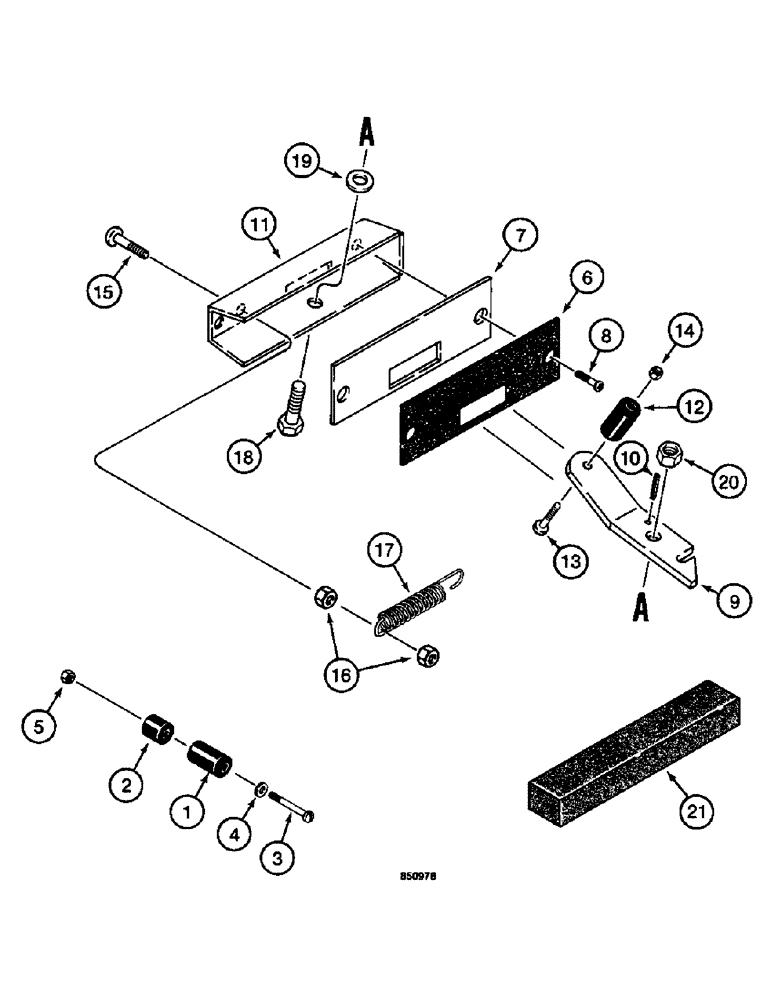

Запчасти Case W14 (606) - CAB DOOR HOLDER LATCHES, CAB SERIAL NUMBER 53700 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

L35871

FENDER

BUMPER - rubber, rounded

2шт.

2

D78393

CUSHION

BUMPER - rubber

2шт.

3

182-544

SCREW,Slotted Pan Hd, #10-24 x 1 1/4"

MACHINE SCREW - pan head slotted, No. 10 - 24 NC x 1-1/4", plated

2шт.

4

195-513

WASHER,#10

- flat, No. 10, plated

2шт.

5

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

2шт.

6

N9874

SEAL

- door holdback latch

2шт.

7

N9873

PLATE

- latch seal

2шт.

8

182-560

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

MACHINE SCREW - pan Phillips head, 1/4"-20 NC x 3/4", plated

4шт.

N9870

BRACKET

LATCH ASSEMBLY - hold back, left-hand, includes Refs. 9-20

1шт.

N9871

BRACKET

LATCH ASSEMBLY - hold back, right-hand, includes Refs. 9-20

1шт.

9

NSS

NOT SOLD SEPARAT

ARM - latch

1шт.

10

138-73

LOCK PIN,5/32" x 3/4", Slotted

PIN, 5/32" x 3/4", Slotted

1шт.

11

NSS

NOT SOLD SEPARAT

BRACKET - latch

1шт.

12

L35871

FENDER

BUMPER - rubber

1шт.

13

182-559

SCREW,Cross Pan Hd, #10-24 x 3/4"

MACHINE SCREW - pan Phillips, head, No. 10 - 24 NC x 3/4", plated

1шт.

14

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC x 3/4", plated

1шт.

15

182-534

SCREW,Sl Pan Hd, 1/4" - 20 x 1"

MACHINE SCREW - pan head slotted, 1/4"-20 NC x 1", plated

1шт.

16

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4"-20 NC, plated

2шт.

17

L35748

SPRING

- latch

1шт.

18

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

19

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

20

131-497

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8"-16 NC, plated

1шт.

21

D78389

INSULATOR

SEAL - below interior ventilation panel

2шт.
