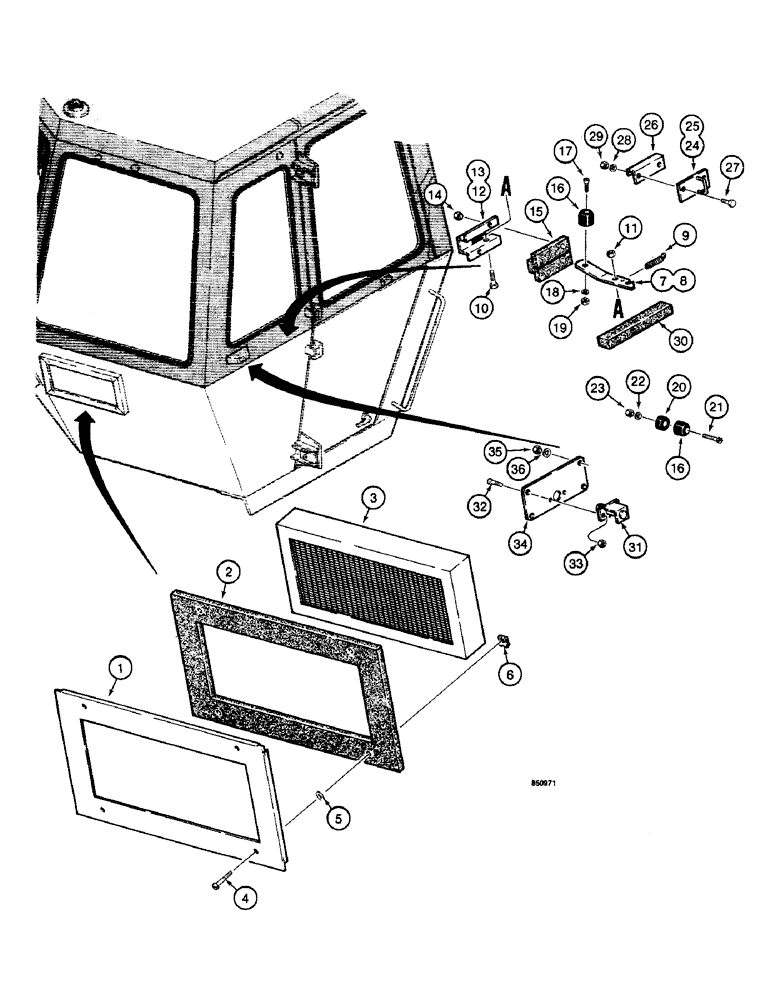

Запчасти Case W14 (604) - CAB FILTER AND DOOR HOLDER LATCHES, DOOR HOLDER LATCHES - (09) - CHASSIS/ATTACHMENTS

1

D78394

COVER

FRAME - filter, cab SN 27750 and after

2шт.

1

D71530

FUNNEL

FRAME - filter, before cab SN 27750

2шт.

2

D78395

SEAL

SEAL - D78394 frame

2шт.

2

F43190

SEAL

- D71530 frame

2шт.

3

D80562

AIR CLEANER

ELEMENT - filter

2шт.

4

173-231

SCREW,Sl Rnd Hd, 5/16" - 18 x 1 1/2"

MACHINE SCREW - round head, 5/16"-18 NC x 1-1/2", plated, used with D78394 frame

8шт.

4

D72843

SCREW

- special, used with D71530 frame

8шт.

5

A61045

RETAINER

WASHER - special, if used

6шт.

6

131-639

SPRING NUT,U, Rtnr, 5/16" - 18

- U-type, 5/16"-18 NC, used with D78394 frame

8шт.

6

A61046

CLIP

RETAINER - used with D71530 frame

8шт.

7

D76957

LATCH

- door holder, on frame, right-hand, before cab SN 53700

1шт.

8

D76956

LATCH

- door holder, on frame, left-hand, not shown, before cab SN 53700

1шт.

9

L35748

SPRING

- door latch, door holder latches - before cab SN 53700

2шт.

10

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Door holder latches - before cab S/N 53700 Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

11

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex, self-locking, 3/8"-16 NC, plated, door holder latches - before cab SN 53700

2шт.

12

D76959

BRACKET

- latch retaining, inside frame, right-hand, door holder latches - before cab SN 53700

1шт.

13

D76958

BRACKET

- latch retaining, inside frame, left-hand, not shown, door holder latches - before cab SN 53700

1шт.

14

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4"-20 NC, plated, door holder latches - before cab SN 53700

4шт.

15

D78396

SEAL

- foam, door holder latch, door holder latches - before cab SN 53700

2шт.

16

L35871

FENDER

BUMPER - rubber, rounded, door holder latches - before cab SN 53700

4шт.

17

182-557

SCREW,Cross Pan Hd, #10-32 x 3/4"

MACHINE SCREW - pan Phillips head, No. 10 - 32 NF x 3/4", plated, door holder latches - before cab SN 53700

2шт.

18

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Door holder latches - before cab S/N 53700 #10

2шт.

19

129-37

NUT,#10-32

Door holder latches - before cab SN 53700 #10-32

2шт.

20

D78393

CUSHION

BUMPER - rubber, door holder latches - before cab SN 53700

2шт.

21

182-151

SCREW,Sl Pan Hd, #10 - 32 x 1 1/4"

MACHINE SCREW - pan head slotted, No. 10 - 32 NF x 1-1/4", door holder latches - before cab SN 53700

2шт.

22

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Door holder latches - before cab S/N 53700 #10

2шт.

23

129-37

NUT,#10-32

Door holder latches - before cab SN 53700 #10-32

2шт.

24

1300-1632

LATCH - on door, right-hand, if used, door holder latches - before cab SN 53700

1шт.

obtain directly from sims

1шт.

Ref. 24 is sims part no. 1300-1632

1шт.

25

1300-1702

LATCH - on door, left-hand, if used, not shown, door holder latches - before cab SN 53700

1шт.

obtain directly from sims

1шт.

Ref. 25 is sims part no. 1300-1702

1шт.

26

1400-9665

BRACKET - on door, latch retaining, if used, door holder latches - before cab SN 53700

2шт.

obtain directly from sims

1шт.

Ref. 26 is sims part no. 1400-9665

1шт.

27

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

If used, door holder latches - before cab SN 53700 Hex, 1/4"-20 x 1/2", G5, Full Thd

4шт.

28

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , If used, door holder latches - before cab S/N 53700 1/4"

4шт.

29

129-104

NUT,7/16"-14, G5

- hex, 1/4"-20 NC, plated, if used, door holder latches - before cab SN 53700

4шт.

30

D78389

INSULATOR

SEAL - below interior ventilation panel, if used, door holder latches - before cab SN 53700

2шт.

31

F43506

LATCH ASSY.

LATCH - door holder, if used, door holder latches - before cab SN 53700

2шт.

32

182-143

SCREW,Cross Pan Hd, #10 - 32 x 3/8"

MACHINE SCREW - pan head slotted, No. 10 - 32 NF x 3/8", if used, door holder latches - before cab SN 53700

4шт.

33

129-37

NUT,#10-32

If used, door holder latches - before cab SN 53700 #10-32

4шт.

34

D71513

PLATE

- latch mounting, if used, door holder latches - before cab SN 53700

2шт.

35

25-104

NUT,1/4"-20, G5

If used, door holder latches - before Cab S/N 53700 1/4"-20, G5

8шт.

36

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , If used, door holder latches - before cab S/N 53700 1/4"

8шт.
