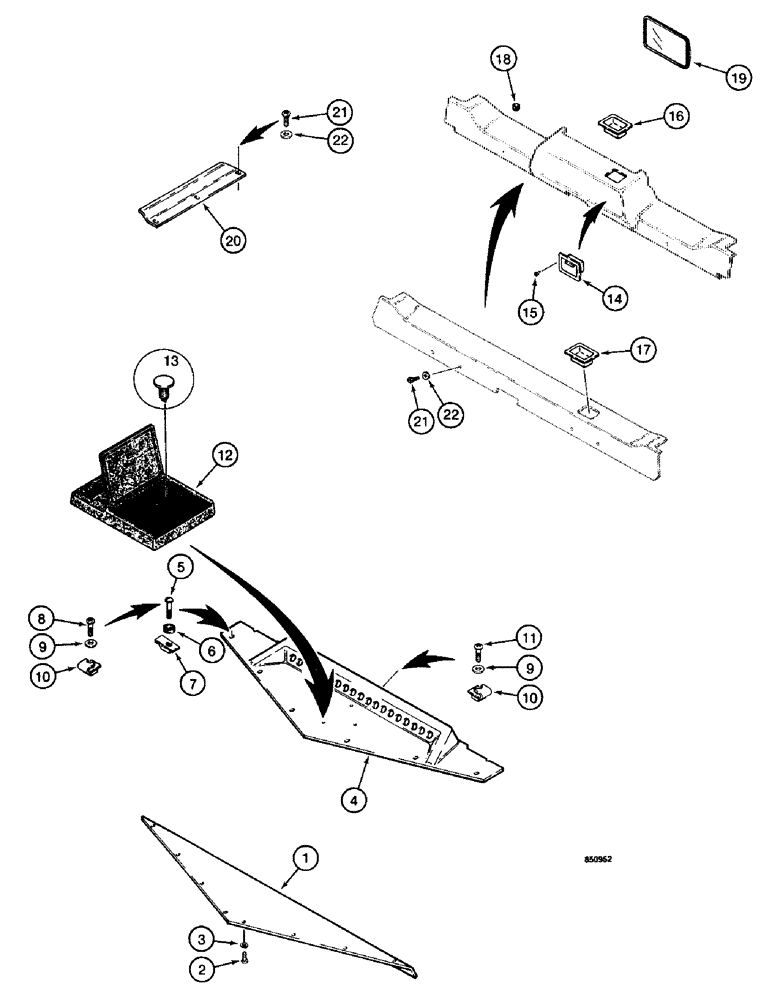

Запчасти Case W14 (602) - CAB CLOSURE PANELS AND ACCESSORIES (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
D71527
PANEL
- floor plate, with 8 mounting slots, if used
1шт.
1
D78392
PANEL
- floor plate, with 6 mounting slots, if used
1шт.
2
187-582
SELF-TAP SCREW,0.19"-32 x 1/2"
SCREW - hex head, self-tapping, No. 10 - 32 NF x 1/2", plated
6-8шт.
3
192-18
LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND
WASHER, LOCK, #10
6-8шт.
4
L77017
PANEL
- rear shelf, black, if used
1шт.
4
L111761
PANEL
- rear shelf, brown, if used
1шт.
5
187-1906
SELF-TAP SCREW,Cross Oval Hd, #10 x 1"
SCREW - oval Phillips head, self-tapping, No. 10 - 16 NC x 1", black, if used
6шт.
6
F43576
WASHER
- special, black, nylon, if used
6шт.
7
131-642
SPRING NUT,Tinn, U, #10
- U-type, No. 10, if used
6шт.
8
182-559
SCREW,Cross Pan Hd, #10-24 x 3/4"
MACHINE SCREW - pan Phillips head, No. 10 - 24 NC x 3/4", plated, if used
2шт.
9
195-516
WASHER,#12
- flat, 1/4" x 9/16", plated, if used
3шт.
10
131-619
SPRING NUT,J, #10 - 24, 0.031" Thk
- J-type, No. 10 - 24 NC, if used
3шт.
11
182-578
SCREW,Slotted Pan Hd, #10-24 x 1"
MACHINE SCREW - pan Phillips head, No. 10 - 24 NC x 1", plated, if used
1шт.
12
A177376
BOX
- operators manual
1шт.
13
A162364
FASTENER
- manual box
3шт.
14
D71520
ASH TRAY
ASHTRAY - attach to front of panel with screws, if used
1шт.
15
187-1040
SELF-TAP SCREW,Cross Pan Hd, #6 x 3/8"
SCREW - round head, self-tapping, No. 6 - 32 NC x 3/8", plated, if used
2шт.
16
D83138
ASH TRAY
ASHTRAY - self-retaining, top of formed panel, if used
1шт.
17
N9895
ASH TRAY
ASHTRAY - self-retaining, top of flat panel, if used
1шт.
18
A75994
GROMMET,5/16" ID x 3/4" Groove Dia, Str Cut
- 1/4" x 5/16", if used
1шт.
19
L74714
MIRROR
- rear view, includes hardware
1шт.
20
N9857
PLATE
- step, left-hand door, if used
1шт.
21
182-559
SCREW,Cross Pan Hd, #10-24 x 3/4"
MACHINE SCREW - pan Phillips head, No. 10 - 24 NC x 3/4", plated
5шт.
22
195-516
WASHER,#12
- flat, 1/4" x 9/16", plated
5шт.
Выбрано товаров: 24
