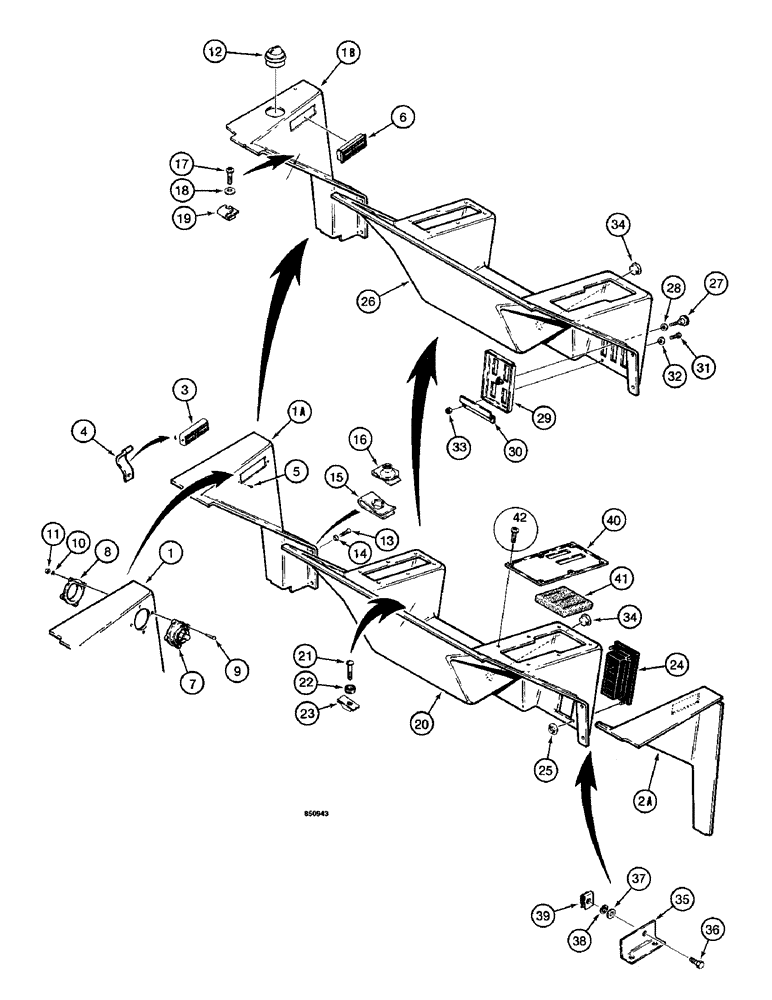

Запчасти Case W14 (598) - CAB VENTILATION PANELS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

PANEL - left-hand, black, with on bolt-on ball-type louver, no longer available, order Refs. 1A (Black or brown) and 3-5

1шт.

1a

L74562

PANEL

- left-hand, black, with one bolt-on rectangular louver, if used

1шт.

1a

L111762

PANEL

- left-hand, brown, with one bolt-on rectangular louver, if used

1шт.

1b

L115317

PANEL

- left-hand, brown, with self-retaining ball-type and rectangular louvers, if used

1шт.

2

REF

INSTRUCTION

PANEL - right-hand, black, with one bolt-on ball-type louver, not shown, no longer available, order Refs. 2A (Black or brown) and 3-5

1шт.

2a

L74567

PANEL

- right-hand, black, with one bolt-on rectangular louver, if used

1шт.

2a

L111763

PANEL

- right-hand, brown, with one bolt-on rectangular louver, if used

1шт.

2b

L115316

PANEL

- right-hand, brown, with self-retaining ball-type and rectangular louvers, if used, not shown

1шт.

3

F89673

GUARD

LOUVER - rectangular, bolt-on, if used

2шт.

4

A42575

CLIP

- louver retaining, if used

4шт.

5

151-502

RIVET,Pop, 1/8" x 5/16"

- dome head, 1/8" x 13/32"

4шт.

6

N9887

VENT (AIR)

LOUVER - rectangular, self-retaining, if used

2шт.

7

F63777

BALL

LOUVER - ball-type, bolt-on, if used

2шт.

8

D72734

LOCK ASSY

RETAINER - ball-type louver, bolt-on, if used

2шт.

9

182-48

SCREW,Sl Pan Hd, #6 - 32 x 3/4"

MACHINE SCREW - pan head slotted, No. 6 - 32 NC x 3/4", if used

8шт.

10

192-105

LOCK WASHER,#6

WASHER - light lock, No. 6, if used

8шт.

11

129-15

NUT,#6-32

If used #6-32

8шт.

12

N9886

STEERING KNUCKLE

LOUVER - ball-type, self-retaining, if used

2шт.

13

187-1906

SELF-TAP SCREW,Cross Oval Hd, #10 x 1"

SCREW - oval Phillips head, self-tapping, No. 10 - 16 x 1", black, if used

14шт.

14

F43576

WASHER

- countersunk, black, nylon, if used

14шт.

15

131-642

SPRING NUT,Tinn, U, #10

- U-type, No. 10, if used

8шт.

16

131-645

NUT,Tinn, U, #10

- U-type, No. 10, if used

4шт.

17

182-559

SCREW,Cross Pan Hd, #10-24 x 3/4"

MACHINE SCREW - pan Phillips head, No. 10 - 24 NC x 3/4", plated, if used

11шт.

18

195-516

WASHER,#12

- flat, 1/4" x 9/16", plated, if used

11шт.

19

131-619

SPRING NUT,J, #10 - 24, 0.031" Thk

- J-type, No. 10 - 24 NC, if used

16шт.

20

F43500

PANEL

- center, black, with stationary louvers (Ref. 24), if used

1шт.

20

L111749

PANEL

- center, brown, with stationary louvers (Ref. 24), if used

1шт.

21

187-1099

SELF-TAP SCREW,Cross Oval Hd, #10 x 1 1/4"

SCREW - oval Phillips head, No. 10 x 1-1/4", black, if used

5шт.

22

F43576

WASHER

- countersunk, black, nylon, if used

5шт.

23

131-642

SPRING NUT,Tinn, U, #10

- U-type, No. 10, if used

5шт.

24

F43507

PLATE

LOUVER - center panel, stationary, if used

2шт.

25

131-423

NUT,3/16", Twist

NUT - special, 3/16", louver retaining

8шт.

26

L115315

PANEL

- center, brown, with sliding air vents, if used

1шт.

27

L79129

KNOB

- air vent slide plate, if used

2шт.

28

195-518

WASHER,1/4", SAE

- flat, 1/4", plated, if used

2шт.

29

N9889

PLATE

- vented, sliding, if used

2шт.

30

N9888

BRACKET

- slide, vent plate, if used

4шт.

31

182-559

SCREW,Cross Pan Hd, #10-24 x 3/4"

MACHINE SCREW - pan Phillips head, No. 10 - 24 NC x 3/4", plated, if used

8шт.

32

195-516

WASHER,#12

- flat, No. 10, plated, if used

8шт.

33

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated, if used

8шт.

34

353-416

PLUG,Dome, 1.750" hole, Nylon

- nylon, 1-3/4" diameter

1шт.

35

L102827

BRACKET

- support, center panel, lower right-hand edge, if used

1шт.

36

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, If used

1шт.

37

195-103

WASHER,5/16"

- flat, , plated, if used 5/16"

1шт.

38

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , If used 5/16"

1шт.

39

131-641

NUT

- U-type, 5/16"-18 NC, if used

1шт.

40

L116108

PANEL

- control cover, 2 spool, includes foam seal, Includes: Ref. 41

1шт.

40

L116109

PANEL

- control cover, 3 spool, includes foam seal, not shown, Includes: Ref. 41

1шт.

41

L116105

SEAL

- foam, control cover

1шт.

42

187-1923

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - oval Phillips head, self-tapping, self-locking, No. 10 - 16 x 3/4", Teflon coated

6шт.

345-44

ADHESIVE

- for attaching foam pads to metal surfaces, spray can, 19-1/2 fluid ounces

1шт.
