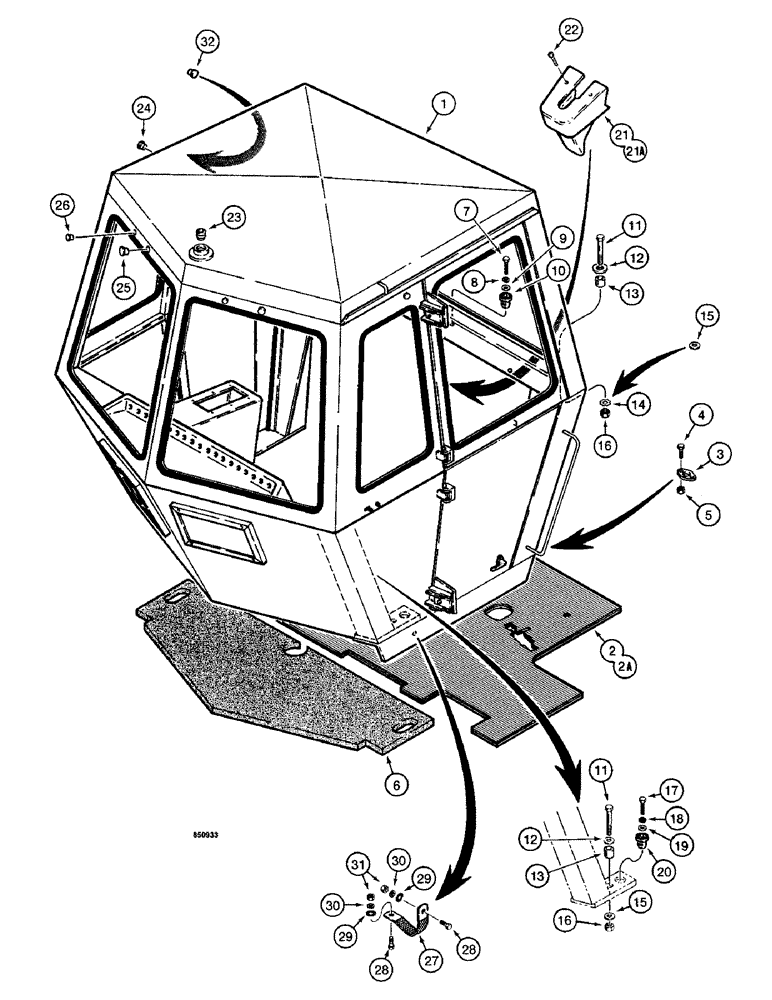

Запчасти Case W14 (596) - CAB MOUNTING (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CAB - ROPS, black, machinery item, see figure 2 for ordering

1шт.

1

REF

INSTRUCTION

CAB - ROPS, brown, with or without lower right-hand door, machinery item, see figure 2 for ordering

1шт.

2

NSS

NOT SOLD SEPARAT

FLOORMAT - without cutout for horn valve, no longer available, order L114266 floormat (Ref. 2A) and L36282 kit (Refs. 3-5)

1шт.

2a

L114266

CARPET

FLOORMAT - with cutout for horn valve

1шт.

L36282

KIT

- horn valve spacer, use with L114266 floormat, Includes: Ref. 3 - 5

1шт.

3

L114090

SPACER

- horn valve, dust seal

1шт.

4

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

5

131-2

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4"-20 NC

2шт.

6

L71329

SEAL

- floor, rear, attach with adhesive listed below

1шт.

7

L113554

BOLT

BOLT - hex head, 1/2"-13 NC x 3-1/4", special high strength

1шт.

8

92-8

LOCK WASHER,1/2"

1шт.

9

D25022

WASHER

- flat, 1-3/4" OD, used before Sims cab SN 21953

1шт.

9

195-2054

WASHER,17/32" x 2" x .238"

- flat, 2" OD, used on Sims cab SN 21953 and after

1шт.

10

N8800

RUBBER MOUNTING

INSULATOR - rubber, cab mounting, front, center

1шт.

11

26-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 8

- hex head, 3/4"-10 NC x 4", grade 8

4шт.

12

F42895

WASHER

- flat, 2-1/4" OD

4шт.

13

F42895

WASHER

SPACER - cab mounting

4шт.

14

L74506

WASHER

- external tooth lock, 3/4", hardened, front cab mounting, no longer used, order L79179 washer (Ref. 15)

2шт.

15

L79179

WASHER

- flat, hardened, 3/4" x 1-1/2" OD, front and rear cab mounting

4шт.

16

129-572

NUT,3/4"-10, G8

4шт.

17

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

2шт.

18

92-8

LOCK WASHER,1/2"

2шт.

19

195-2055

WASHER,17/32" x 2 1/4" x .180"

- flat, 1/2" x 2-1/4" OD

2шт.

20

D74445

RUBBER MOUNTING

INSULATOR - rubber, cab mounting, rear

2шт.

21

L105615

COVER ASSY

COVER - steering column, black, if used

1шт.

21a

L111753

COVER

- steering column, brown, if used

1шт.

22

182-542

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

MACHINE SCREW - pan head slotted, 1/4"-20 NC x 1/2", black

2шт.

23

353-679

PLUG,Hex Soc, 1"-11 1/2 NPT

- pipe, hex socket, 1" NPT, plastic

1шт.

24

353-405

PLUG,Dome, .562" hole, Nylon

- nylon, 9/16"

2шт.

25

353-406

PLUG,Dome, .625" hole, Nylon

- nylon, 5/8"

2шт.

26

353-421

PLUG,Dome, .187" hole, Nylon

2шт.

27

D120366

STRAP

- ground

1шт.

28

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

29

193-72

LOCK WASHER

- internal-external tooth lock, 3/8", plated

2шт.

30

92-6

LOCK WASHER,3/8"

2шт.

31

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

32

353-407

PLUG,Dome, .687" hole, Nylon

- nylon, 11/16" (18 mm) diameter, in plastic formed headliner inside cab, if used

2шт.

33

N9062

INSULATOR

SEAL - rubber, adhesive-backed, cab to tractor, under windshield, if used, not shown

1шт.

B17560

GLUE

ADHESIVE - vinyl, Scotchgrip No. 1099, 1 qt

1шт.
