Запчасти Case W14 (586) - L46484, L77247, AND D124790 SEAT ASSEMBLIES (09) - CHASSIS/ATTACHMENTS

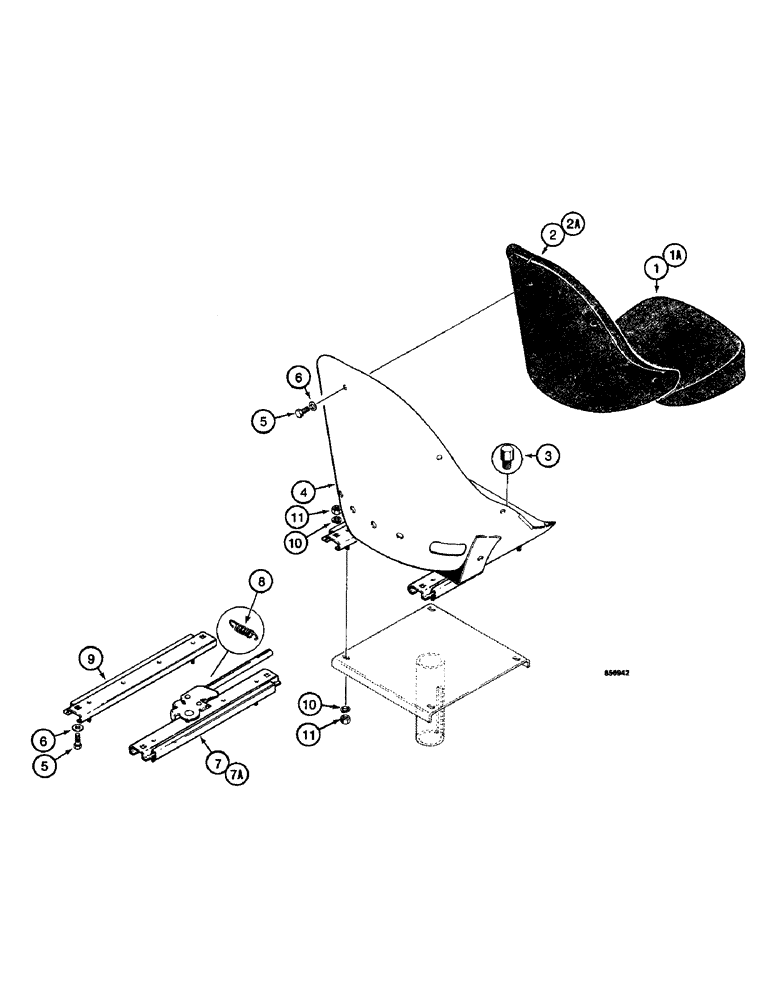

Схема запчастей Case W14 - (586) - L46484, L77247, AND D124790 SEAT ASSEMBLIES (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

L46484

SEAT

ASSEMBLY - black, side adjustment lever, no longer available, order D124790 seat, Includes: Ref. 1 - 11

1шт.

L77247

SEAT

ASSEMBLY - black, front adjustment lever, no longer available, order D124790 seat, Includes: Ref. 1 - 11

1шт.

D124790

SEAT

ASSEMBLY - brown, side adjustment lever, Includes: Ref. 1 - 11

1шт.

1

D52470

CUSHION

- seat, black, if used

1шт.

1a

N8761

CUSHION

- seat, brown, if used

1шт.

2

A42747

BACKREST

CUSHION - backrest, black, if used

1шт.

2a

N8762

CUSHION

- backrest, brown, if used

1шт.

3

D77386

PIN

- cushion alignment

2шт.

4

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

5

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

9шт.

6

195-103

WASHER,5/16"

- flat, , plated 5/16"

9шт.

7

D59688

SLIDE

- right-hand, with 9" handle, L46484 or L77247 seat

1шт.

7a

D83178

ADJUSTER

SLIDE - right-hand, with 3-1/2" handle, D124790 seat, Includes: Ref. 8

1шт.

8

L35503

SPRING

- adjusting lever, D59688 or D83178 slide

1шт.

9

L35272

ADJUSTER

SLIDE - left-hand

1шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

11

129-122

NUT,5/16"-24, G5

6шт.

Выбрано товаров: 17
