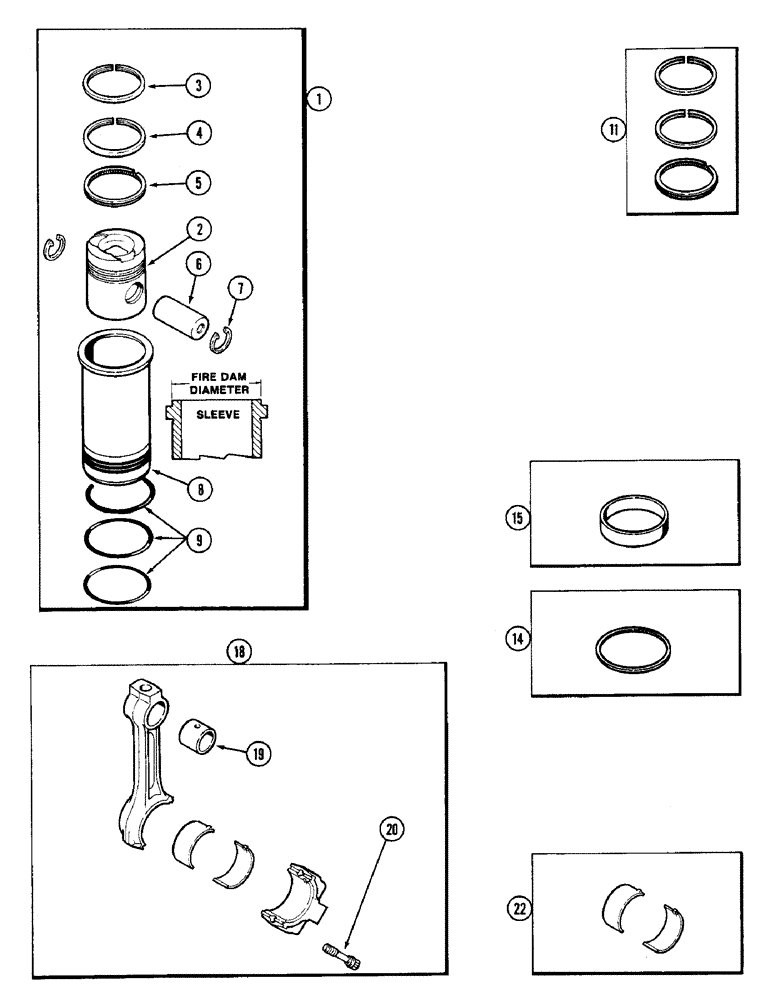

Запчасти Case W14 (038) - PISTONS AND SLEEVES, W/ 5.189 INCH - 5.194 INCH FIRE DAM DIA. SLEEVE, 336BD & 336BDT DIESEL ENGINE (02) - ENGINE

1

A166134

SET

PISTON AND SLEEVE ASSEMBLY - engine (Replaces A156931), Includes: Ref. 2 - 9

1шт.

First used on engine serial number 10344275 and after. Engines prior to with A66531 part number stamped on top, all four pistons must be replaced with A166122.

1шт.

1 Set Per Cylinder

1шт.

2

A166122

PISTON

PISTON - cylinder (Replaces A66531)

1шт.

First used on engine serial number 10344275 and after. Engines prior to with A66531 part number stamped on top, all four pistons must be replaced with A166122.

1шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, top groove (Order Ref. 11)

1шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, second groove (Order Ref. 11)

1шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control, third groove (Order Ref. 11)

1шт.

6

A140607

PISTON PIN,41.27mm OD x 93.34mm L

PIN - piston

1шт.

7

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, , piston pin 1.625", Int, #162

2шт.

8

A153638

SLEEVE CYLINDER

SLEEVE - cylinders, with 3 grooves

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE - cylinder, 2 groove (Order 3 groove sleeve A153638)

1шт.

9

A144667

O-RING,4.734" ID x 5.012" OD x 0.0139"

O-RING - sleeve

3шт.

11

A48320

SET

RING KIT - piston re-ring (Set of 1) (Replaces A44060)

4шт.

14

A148553

SHIM

SHIM - sleeve, 0.010 inch (0.254 mm) (Repairs Only)

1шт.

14

A148554

SHIM

SHIM - sleeve, 0.005 inch (0.127 mm) (Repairs Only)

1шт.

15

A150327

BUSHING,129.06mm ID x 133.49mm OD x 30.15mm L

BUSHING - sleeve (Repairs Only)

1шт.

A150328

ADHESIVE

LOCTITE - tube (Not Shown)

1шт.

18

A62954

ROD, CONNECTING

ROD ASSEMBLY - connecting, Includes: Ref. 19 and 20

4шт.

18

AR62954

REMAN-CONNECTING ROD

Remanufactured, Connecting Rod

4шт.

18

AC62954

CORE-ROD CONNECTING

Core Connecting Rod Return Part Number

4шт.

19

A61241

BUSHING,40.75mm ID x 44.56mm OD x 34.54mm L

BUSHING - piston pin, connecting rods

1шт.

20

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - connecting rod bearing cap, connecting rods

2шт.

22

A43173

BEARING LINER

INSERT KIT - rod bearing, (Standard) (Set of 2), connecting rods

4шт.

22

A43174

BEARING LINER

INSERT KIT - rod bearing, 0.002 inch (0.051 mm) undersize (Set of 2), connecting rods

4шт.

22

A43175

BEARING LINER,70.25mm ID x 74.32mm OD x 40.54mm W

INSERT KIT - rod bearing, 0.010 inch (0.254 mm) undersize (Set of 2), connecting rods

4шт.

22

AR65032

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

4шт.

22

AC65032

CORE-ROD CONNECTING

Core Connecting Rod Return Part Number

4шт.

22

A43176

BEARING LINER,70mm ID x 74.32mm OD x 40.54mm W

INSERT KIT - rod bearing, 0.020 inch (0.508 mm) undersize (Set of 2), connecting rods

4шт.

22

A43177

BEARING LINER

INSERT KIT - rod bearing, 0.030 inch (0.762 mm) undersize (Set of 2), connecting rods

4шт.
