Запчасти Case W14 (582) - SEAT AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

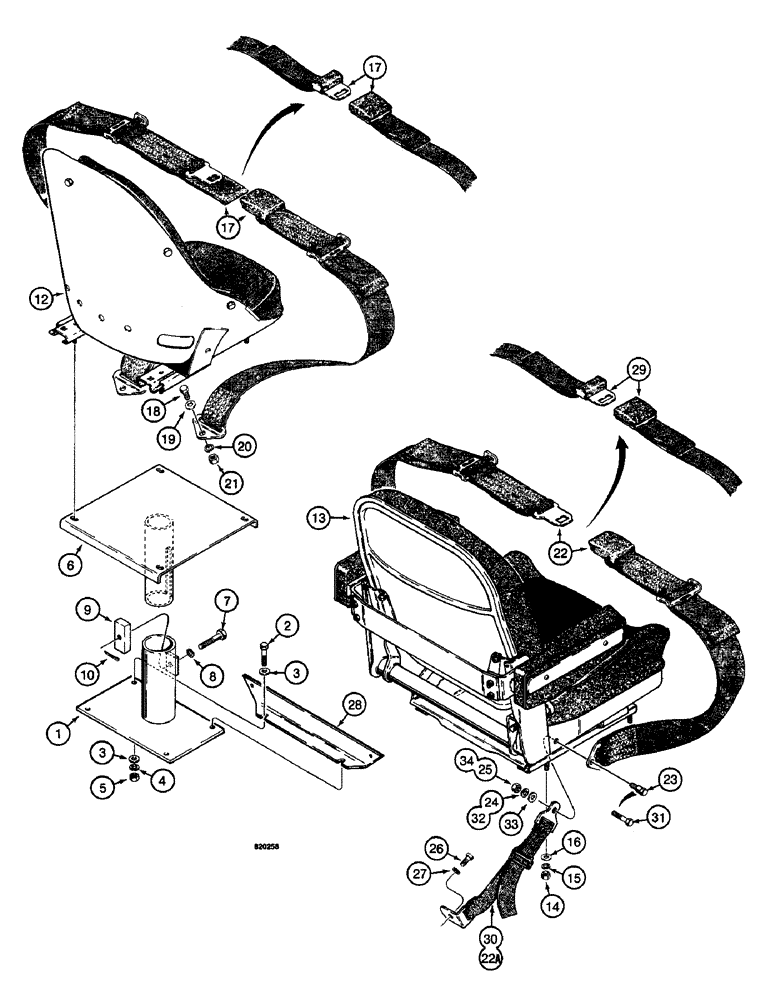

Схема запчастей Case W14 - (582) - SEAT AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

L59942

BRACKET

SUPPORT - seat, lower

1шт.

2

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

3

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

6

L59946

BRACKET

SUPPORT - seat, upper

1шт.

7

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

8

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

9

L59950

NUT

- special

1шт.

10

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), , If used 1/8" x 1"

1шт.

11

L109872

SEAT

ASSEMBLY - black, side adjustment lever, with 6" slide, if used, not shown, parts list figure 588

1шт.

11

L111748

SEAT

ASSEMBLY - black, side adjustment lever, with 5" slide, not shown, no longer available, order L108783 seat, parts list figure 588

1шт.

11

L108783

SEAT

ASSEMBLY - brown, side adjustment lever, with 5" slide, not shown, parts list figure 588

1шт.

12

L46484

SEAT

ASSEMBLY - black, side adjustment lever, no longer available, order D124790 seat, parts list figure 586

1шт.

12

L77247

SEAT

ASSEMBLY - black, front adjustment lever, no longer available, order D124790 seat, parts list figure 586

1шт.

12

D124790

SEAT

ASSEMBLY - brown, side adjustment lever, parts list figure 586

1шт.

13

L73447

SEAT

ASSEMBLY - suspension, black, canopy models, if used, parts list figure 590

1шт.

13

L112057

SEAT ASSY.

SEAT ASSEMBLY - suspension, brown, canopy models, if used, parts list figure 590

1шт.

13

L73448

SEAT ASSY.

SEAT ASSEMBLY - suspension, black, cab models, if used, parts list figure 590

1шт.

13

L112058

SEAT ASSY.

SEAT ASSEMBLY - suspension, brown, cab models, if used, parts list figure 590

1шт.

14

9635082

NUT,5/16" - 18, Gr 5

4шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

16

195-103

WASHER,5/16"

- flat, , plated 5/16"

4шт.

17

D83760

SAFETY BELT

SEAT BELT - 3" (76 mm) wide, used with Ref. 11 or 12 seat, if used

1шт.

17

L117001

SAFETY BELT ,1.80" W

Used with Ref. 11 or 12 seat,If used (Replaces D75428) 1.80" W

1шт.

18

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

19

95-8

WASHER,1/2"

flat 1/2"

2шт.

20

92-8

LOCK WASHER,1/2"

2шт.

21

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

L70502

SAFETY BELT

SAFETY BELT, 3" (76 mm) wide, Used with Ref. 13 suspension seat, If used, Includes Ref. 22 - 25

1шт.

22

NSS

NOT SOLD SEPARAT

SEAT BELT - operator retaining, 3" (76 mm) wide

1шт.

22a

NSS

NOT SOLD SEPARAT

BELT - tether, Serial Range: seat-support

2шт.

23

A32042

STEP BOLT

BOLT - shoulder, 7/16"-14 NC x 1-1/2", grade 8

2шт.

24

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

25

129-104

NUT,7/16"-14, G5

2шт.

26

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

27

92-8

LOCK WASHER,1/2"

2шт.

28

L71330

RETAINER

ANGLE - stiffener

1шт.

29

D75997

SAFETY BELT ,1.80" W

Used with Ref. 13 suspension seat, If used 1.80" W

1шт.

30

L78471

SAFETY BELT

SAFETY BELT, Serial Range: Seat-support

2шт.

31

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

2шт.

32

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

33

195-105

WASHER,7/16"

- flat, , plated 7/16"

2шт.

34

129-104

NUT,7/16"-14, G5

2шт.

Выбрано товаров: 44
