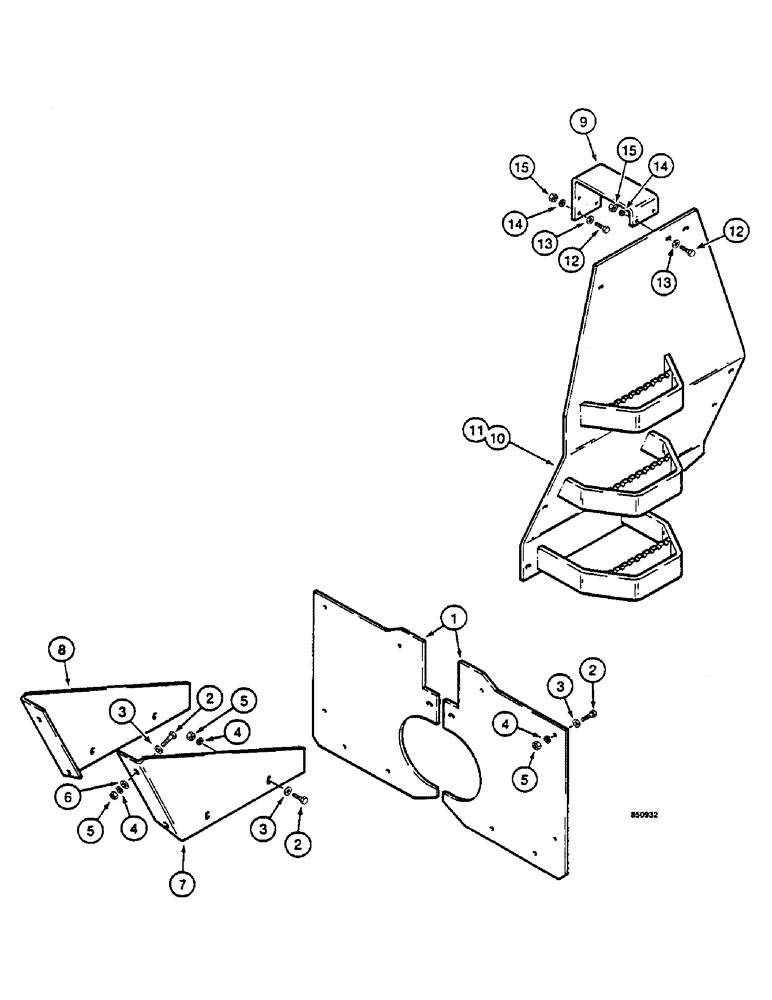

Запчасти Case W14 (580) - GUARDS - ENGINE FRONT, TRANSMISSION REAR, AND STEPS, FORESTRY MODELS ONLY (09) - CHASSIS/ATTACHMENTS

1

L72911

GUARD

- transmission rear, some models have nuts welded to these guards, service guards do not have nuts welded to them, order nuts (Ref. 5) as required

2шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

19шт.

3

95-6

WASHER,3/8"

- flat, 3/8"

22шт.

4

92-6

LOCK WASHER,3/8"

17шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

7шт.

6

F12215

WASHER

- special

2шт.

7

L70632

GUARD

- engine front, right-hand

1шт.

8

L70633

GUARD

- engine front, left-hand

1шт.

9

L70546

BRACKET

- mount

2шт.

10

L72313

GUARD AND STEP - left-hand

1шт.

11

L72312

GUARD

AND STEP - right-hand

1шт.

12

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex head, 3/8"-16 NC x 1-1/4"

20шт.

13

95-6

WASHER,3/8"

- flat, 3/8"

28шт.

14

92-6

LOCK WASHER,3/8"

20шт.

15

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

20шт.
