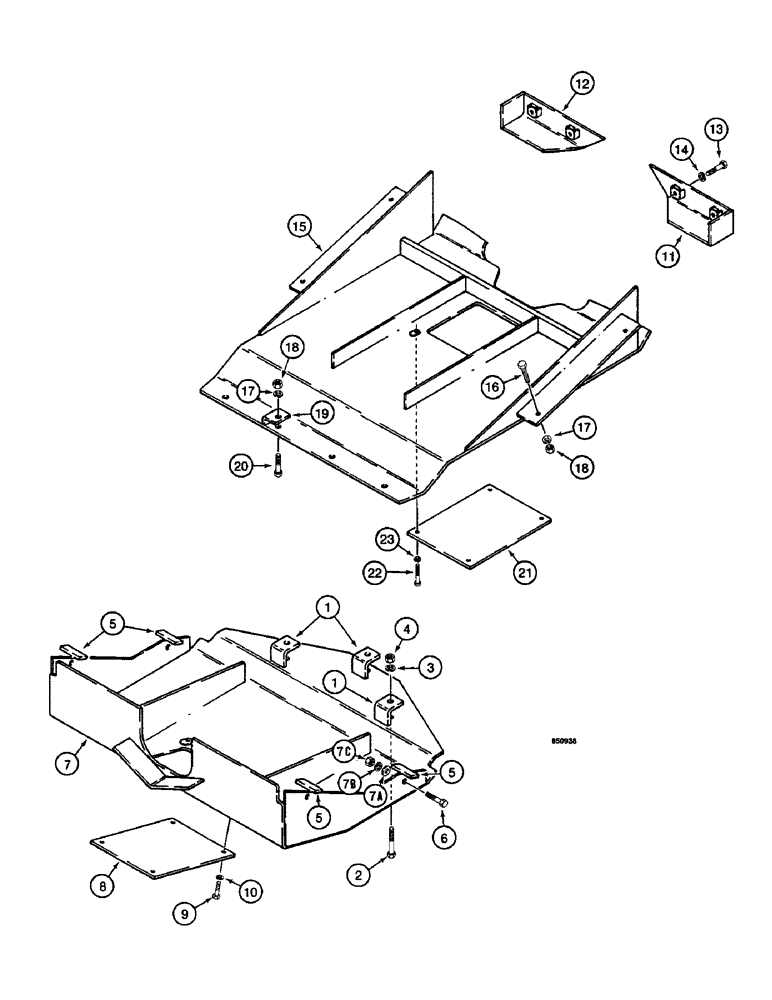

Запчасти Case W14 (578) - UNDERCARRIAGE GUARDS (09) - CHASSIS/ATTACHMENTS

1

L51202

CLAMP

- guard mounting

3шт.

2

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

- hex head, 5/8"-18 NC x 3-1/4"

3шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

4

25-1010

NUT,5/8"-11, G5

- hex, 5/8"-18 NC

3шт.

5

L59922

BLOCK

- welded

4шт.

6

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

7

L73864

GUARD

- rear drive line

1шт.

7a

95-8

WASHER,1/2"

flat 1/2"

4шт.

7b

92-8

LOCK WASHER,1/2"

4шт.

7c

25-108

NUT,1/2"-13, G5

- hex, 1/2"-13 NC

4шт.

8

L51205

COVER

- guard access

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

L52592

ANGLE

- guard, right-hand

1шт.

12

L52590

ANGLE

- guard, left-hand

1шт.

13

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

14

92-8

LOCK WASHER,1/2"

4шт.

15

L78679

GUARD

- front drive line

1шт.

16

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

17

92-8

LOCK WASHER,1/2"

8шт.

18

25-108

NUT,1/2"-13, G5

- hex, 1/2"-13 NC

8шт.

19

L53708

SPECIAL CLAMP

CLAMP - guard mounting

1шт.

20

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

21

L51205

COVER

- guard access

1шт.

22

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

23

92-6

LOCK WASHER,3/8"

4шт.
