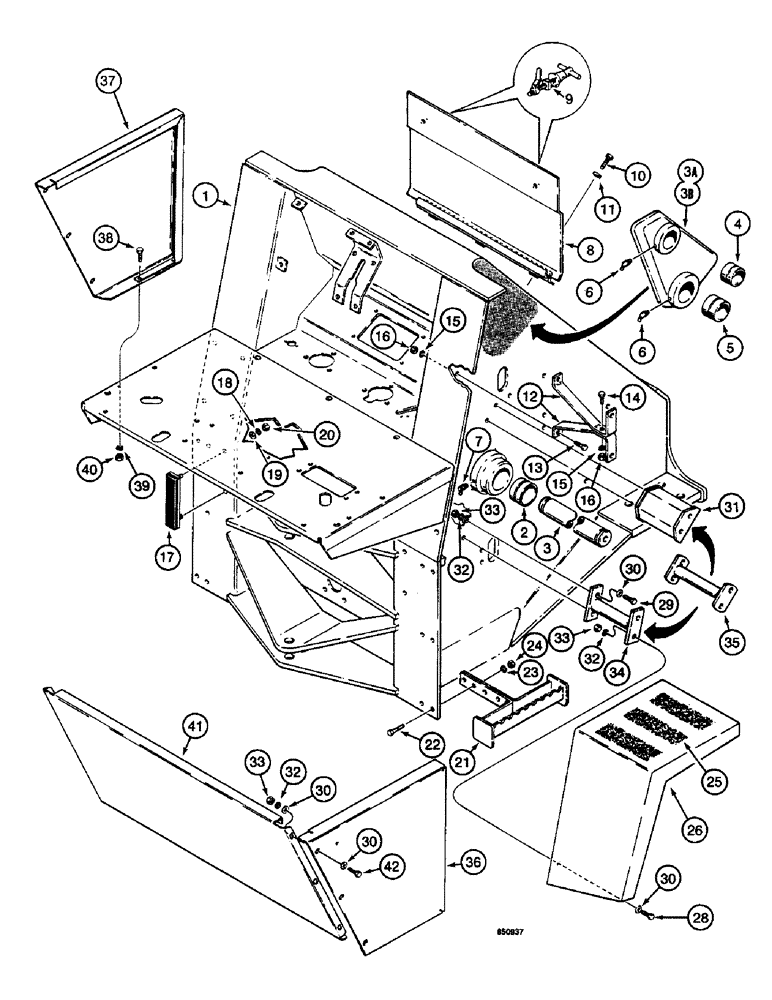

Запчасти Case W14 (574) - FRONT FRAME AND FENDERS (09) - CHASSIS/ATTACHMENTS

L116368

CHASSIS

FRAME ASSEMBLY - standard, Includes: Ref. 1 - 5

1шт.

L106914

CHASSIS

FRAME ASSEMBLY - forestry model, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME ASSEMBLY - articulated loader

1шт.

2

L55873

BUSHING,63.75mm ID x 76.22mm OD x 50mm L

- lift cylinder

2шт.

3

L50515

SHAFT

- pivot, lift cylinder

1шт.

3a

L78554

CASTING

PIVOT CASTING - right-hand, Includes: Ref. 4 and 5

1шт.

3b

L78555

CASTING

PIVOT CASTING - left-hand, Includes: Ref. 4 and 5

1шт.

4

L55874

BUSHING

- tilt cylinder

1шт.

5

L55873

BUSHING,63.75mm ID x 76.22mm OD x 50mm L

- lift frame

1шт.

6

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 45 degree, 1/8" NPT

4шт.

7

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

8

L78724

DOOR ASSY.

COVER - front, used with Parker loader control valve

1шт.

8

L107901

DOOR

COVER - front, used with Hydreco loader control valve, not shown

1шт.

9

L48438

HANDLE

ASSEMBLY - front cover

1-2шт.

10

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

11

95-4

WASHER,1/4"

- flat, 1/4"

3шт.

12

L47787

SUPPORT

BRACKET - lamp mounting, for lamp mounting brackets see figure 158, Serial Range: -9154965

4шт.

12

L47787

SUPPORT

BRACKET - lamp mounting, for lamp mounting brackets see figure 158, Start Serial: 9154965

4шт.

13

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8"-16 NC x 1-1/2"

4шт.

14

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

15

92-6

LOCK WASHER,3/8"

6шт.

16

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

6шт.

17

L47997

ELASTIC STOP

STOP - front to rear frame

2шт.

18

92-6

LOCK WASHER,3/8"

4шт.

19

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

20

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

4шт.

21

L77602

STEP

- operators compartment access

4-6шт.

22

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

8-12шт.

23

92-8

LOCK WASHER,1/2"

8-10шт.

24

25-108

NUT,1/2"-13, G5

- hex, 1/2"-13 NC

8-10шт.

25

D55216

PAD,2" x 9"

PAD - non-skid

6шт.

26

L48237

FENDER

- front, right-hand

1шт.

27

L48238

FENDER

- front, left-hand, not shown

1шт.

28

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8"-16 NC x 1-1/2"

8шт.

29

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8"-16 NC x 1-1/2"

8шт.

30

95-6

WASHER,3/8"

- flat, 3/8"

16-28шт.

31

L48249

SUPPORT

- fender, upper and lower, use L74731

4шт.

32

92-6

LOCK WASHER,3/8"

16-22шт.

33

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

16-22шт.

34

L51445

SUPPORT

- front fender, use L74731

2шт.

35

L74731

SUPPORT

- fender

4шт.

36

L101294

SIDE ASSY.

PLATE - right-hand

1шт.

37

L101295

SIDE ASSY.

PLATE - left-hand

1шт.

38

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

39

92-8

LOCK WASHER,1/2"

4шт.

40

25-108

NUT,1/2"-13, G5

- hex, 1/2"-13 NC

4шт.

41

L77024

PLATE

- rear

1шт.

42

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

- hex head, 3/8"-16 NC x 1"

6шт.
