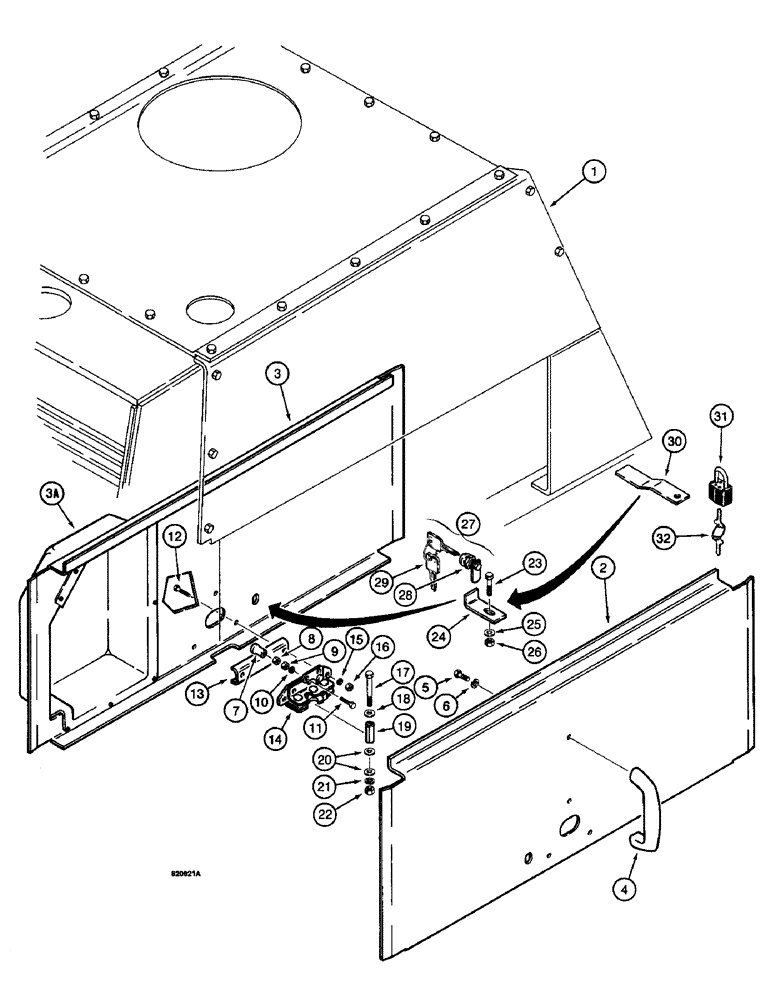

Запчасти Case W14 (572) - REAR FENDERS AND SIDE PANELS WITH METAL LATCHES (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

HOOD - engine, see figures 558, 560, and 562 for related parts

1шт.

2

L103279

PANEL ASSY.

PANEL - engine side, standard, right-hand only on air conditioned models

1-2шт.

3

L103870

PANEL ASSY.

PANEL - engine side, left-hand, used with air conditioner, Includes: Ref. 3A

1шт.

3a

L111754

COVER

- plastic, air conditioner

1шт.

4

A23725

HANDLE

- side panel

2шт.

5

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

6

92-5

LOCK WASHER,5/16"

4шт.

7

L100126

KNOB

- latch

2шт.

8

25-144

JAM NUT,Jam, 1/4"-20, G5

JAM NUT - hex, 1/4"-20 NC

2шт.

9

25-104

NUT,1/4"-20, G5

2шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

12

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.

13

L103277

SPACER

- latch mounting

2шт.

14

R37573

CATCH

LATCH - side panel

2шт.

15

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

16

25-104

NUT,1/4"-20, G5

4шт.

17

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

18

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

2шт.

19

L103278

SPACER

- side panel latch

2шт.

20

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

4шт.

21

92-5

LOCK WASHER,5/16"

2шт.

22

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16"-18 NC

2шт.

23

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8"-16 NC x 1-1/2"

2шт.

24

L103695

BRACKET

- panel lock, used with twist lock only, see Ref. 27

2шт.

25

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

26

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8"-16 NC

2шт.

27

L114879

LOCK ASSY

LOCK - twist type, Eberhard or Wilmont-Breeden, includes keys marked FS880, if used

2шт.

27

L114881

LOCK - twist type, Chicago Lock, includes keys marked 1414, production only, for service order L114789, Includes: Ref. 28 and 29

2шт.

28

NSS

NOT SOLD SEPARAT

LOCK - twist type

1шт.

29

D83205

KEY

S - set of two, for L114879 lock, marked as No. FS880

1шт.

29

N8790

SET OF 2 KEYS

KEYS - set of two, for L114881 lock, marked as No. 1414

1шт.

30

L104187

BRACKET

- panel lock, weld on, used with padlock only, see Ref. 31

2шт.

31

D93753

PADLOCK

- includes keys, if used, Includes: Ref. 32

2шт.

32

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, if used

2шт.

32

R29555

KEY

- for Master padlock only, if used

2шт.

L36215

LATCH ASSY.

KIT - side panel, includes Refs. 7 - 22 above

1шт.
