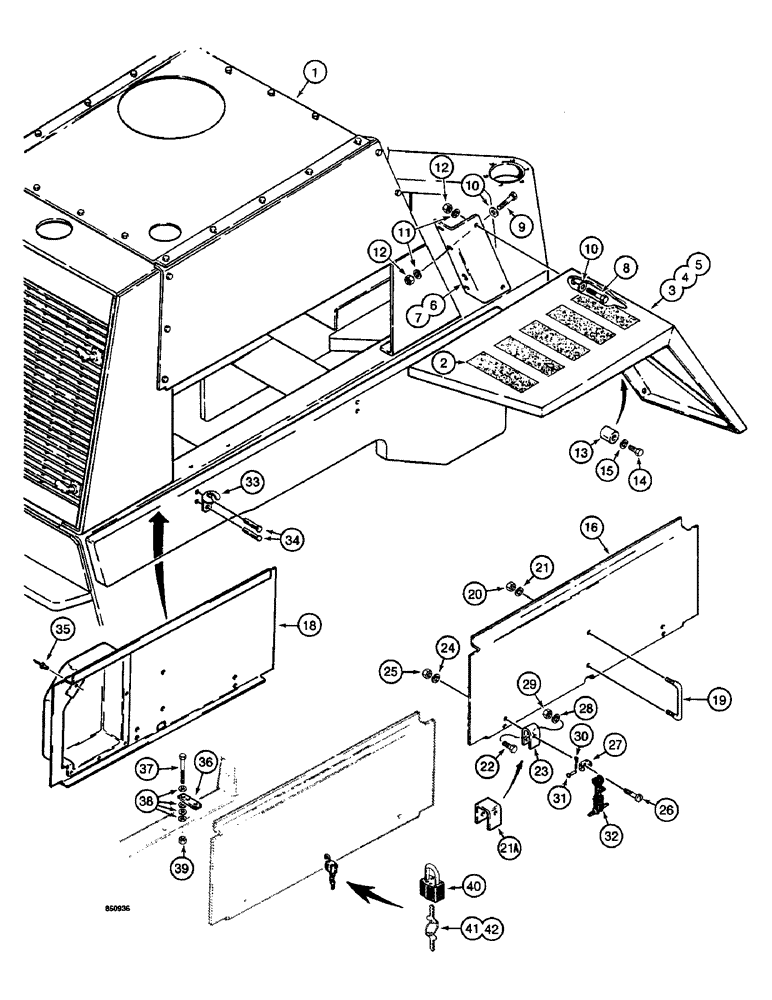

Запчасти Case W14 (570) - REAR FENDERS AND SIDE PANELS WITH RUBBER HOOKS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

HOOD - engine, see figures 562 and 564 for related parts

1шт.

2

D55216

PAD,2" x 9"

PAD - non-skid

10шт.

3

L51462

FENDER

- rear, used on W14 and W14FL

2шт.

4

L58778

FENDER

- rear, right-hand, used on W14H

1шт.

5

L58777

FENDER

- rear, left-hand, used on W14H, not shown

1шт.

6

L57330

BRACE

- rear fender to support, right-hand

1шт.

7

L50867

BRACE - rear fender to support, left-hand

1шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Includes: Ref. 10 - 12 Hex, 3/8"-16 x 1", G5, Full Thd

8шт.

10

95-6

WASHER,3/8"

- flat, 3/8"

14-16шт.

11

92-6

LOCK WASHER,3/8"

14-16шт.

12

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

12-14шт.

13

D33265

NUT

BLOCK - tapped, fender mounting

2шт.

14

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

L59115

PANEL

- engine side, right-hand and left-hand on standard models, right-hand on air conditioned models, order L36215 kit and (1) L103279 panel, see figure 572

1-2шт.

17

L70253

PANEL

- engine side, forestry models, not shown

2шт.

18

L71383

PANEL

- engine, left-hand air conditioned models, if used, order L36215 kit and (1) L103870 panel, see figure 572

1шт.

19

A23725

HANDLE

- side panel

2шт.

20

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16"-18 NC

4шт.

21

92-5

LOCK WASHER,5/16"

4шт.

21a

L55527

BRACKET

- spacer, used with backhoe only

4шт.

22

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

23

L58798

BRACKET

- spacer, used on W14H only

4шт.

24

92-5

LOCK WASHER,5/16"

8шт.

25

9635082

NUT,5/16" - 18, Gr 5

- hex , 5/16"-18 NC

8шт.

26

182-244

BOLT

- slotted pan head, 5/16"-18 NC x 1"

4шт.

27

L47159

BRACKET

- anchor, hood panel

4шт.

28

92-5

LOCK WASHER,5/16"

4шт.

29

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16"-18 NC

4шт.

30

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

4шт.

31

T11232

PIN

- anchor, hood panel

4шт.

32

L47157

HOOK

- hood panel

4шт.

33

L47158

BRACKET

- hook, hood panel

4шт.

34

151-552

RIVET,Pop, 3/16" x .825"

- 3/16" x 5/8"

8шт.

35

151-535

RIVET,Pop, 1/8" x .462"

Panel Pop, 1/8" x .462"

8шт.

36

L52502

BRACKET

BAR - side panel lock

2шт.

37

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex head, 5/16"-18 NC x 1-1/4"

4шт.

38

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

16шт.

39

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16"-18 NC

4шт.

40

D93753

PADLOCK

- includes keys, if used, Includes: Ref. 41 and 42

2шт.

41

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, if used

2шт.

42

R29555

KEY

- for Master padlock only, if used

2шт.
