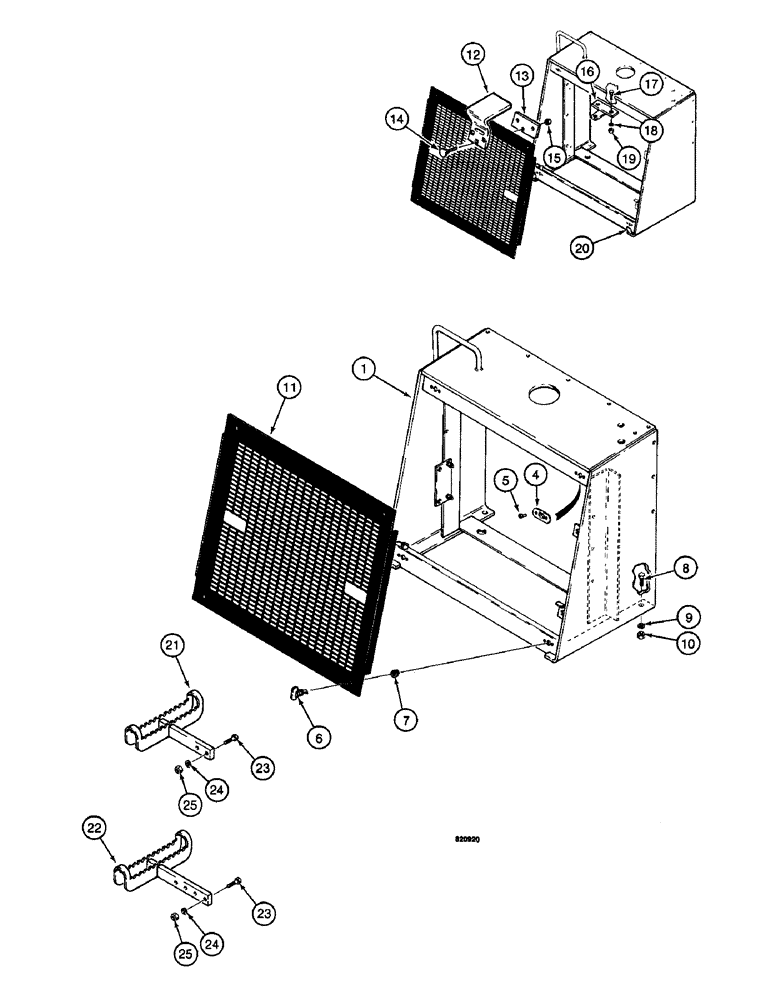

Запчасти Case W14 (568) - STEPS, GRILLE, AND RADIATOR GUARD, BACKHOE MODELS ONLY (09) - CHASSIS/ATTACHMENTS

1

L77421

GUARD

- radiator, 26C backhoe, used with bolt-on lamp bracket

1шт.

2

L77603

GUARD - radiator, 26C backhoe, has welded lamp bracket, not shown

1шт.

3

L116370

GUARD ASSY.

GUARD - radiator, 35 series backhoes, has external bolt-on lamp bracket, not shown

1шт.

4

L48759

CONNECTION,ELECTRIC

CONNECTOR - grille fastener

4шт.

5

151-548

RIVET,Pop, 1/8" x .462"

- blind

8шт.

6

L54938

FASTENER

- wing head

4шт.

7

L48760

WASHER

- fastener

4шт.

8

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

9

92-8

LOCK WASHER,1/2"

4шт.

10

25-108

NUT,1/2"-13, G5

- hex, 1/2"-13 NC

4шт.

11

L73832

GRILLE

- backhoe models

1шт.

12

L57271

COVER

- radiator cap

1шт.

13

L57266

PLATE

- backing, cover mounting

1шт.

14

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

3шт.

15

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, 5/16"-18 NC

3шт.

16

L57270

BAR ASSY.

BAR - grille lock

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

2шт.

20

L57267

STOP

- grille retaining

1шт.

21

L108476

STEP

- backhoe mounting, upper, 35A backhoe only

1шт.

22

L77602

STEP

- backhoe mounting, all backhoe models

1-2шт.

23

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2-4шт.

24

92-8

LOCK WASHER,1/2"

2-4шт.

25

25-108

NUT,1/2"-13, G5

- hex, 1/2"-13 NC

2-4шт.
