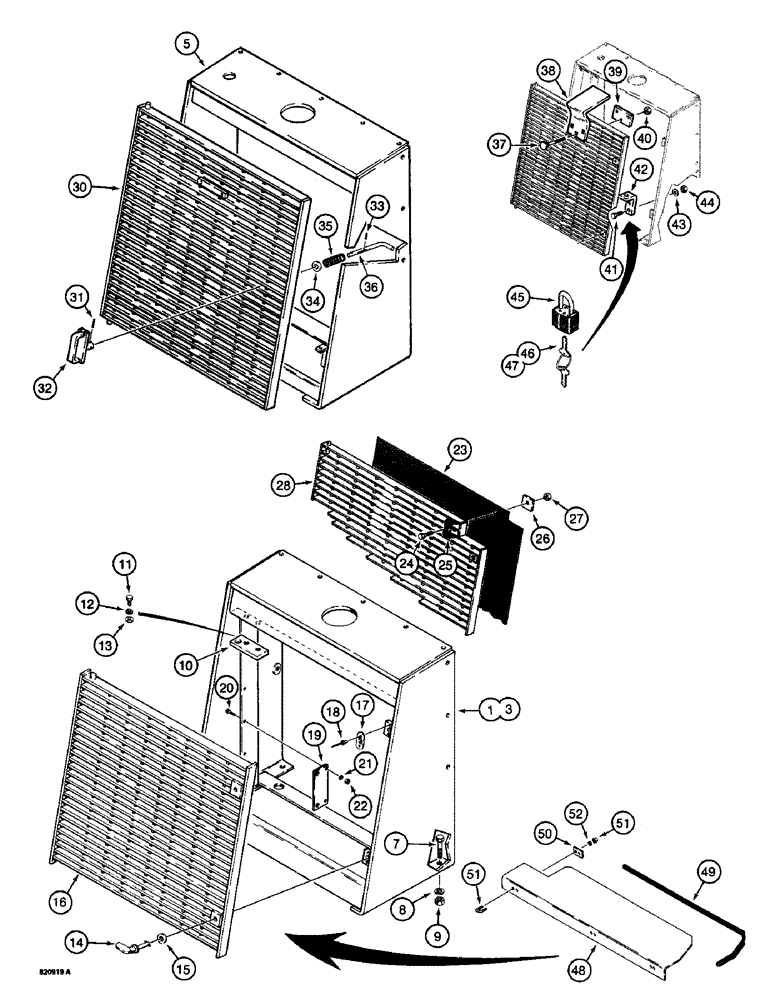

Запчасти Case W14 (564) - GRILLE AND RADIATOR GUARD, MODELS WITHOUT BACKHOE (09) - CHASSIS/ATTACHMENTS

1

L77420

GUARD

- radiator, standard models, used with bolt-on lamp bracket and two grille fasteners

1шт.

2

L77422

GUARD

- radiator, forestry models, used with bolt-on lamp bracket and two grille fasteners, not shown

1шт.

3

L77179

GUARD

- radiator, standard models, has welded lamp bracket and uses two grille fasteners

1шт.

4

L77604

GUARD - radiator, forestry models, has welded lamp bracket and uses two grille fasteners, not shown

1шт.

5

L111055

GUARD

- radiator, standard models, has welded lamp bracket and uses a single grille fastener, Serial Range: -9154965

1шт.

5

L116228

GUARD ASSY.

GUARD - radiator, standard models, has welded lamp bracket and uses a single grille fastener, Start Serial: 9154965

1шт.

6

L106948

GUARD

- radiator, forestry models, has welded lamp bracket and uses a single grille fastener, not shown, Serial Range: -9154965

1шт.

6

L116362

GUARD ASSY.

GUARD - radiator, forestry models, has welded lamp bracket and uses a single grille fastener, not shown, Start Serial: 9154965

1шт.

7

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

If used Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

7

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2"-13 NC x 1-3/4", if used

4шт.

8

92-8

LOCK WASHER,1/2"

3-4шт.

8a

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , Used after PIN 9154965 on LH rear bolt, not shown Ext-Int Tooth, 1/2"

1шт.

9

25-108

NUT,1/2"-13, G5

- hex, 1/2"-13 NC

4шт.

10

L50633

SUPPORT

- grille, upper

1шт.

11

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

14

L55533

RETAINER

- grille, used with Refs. 1, 2, 3, and 4

2шт.

15

L48760

WASHER

- special, grille retainer, used with Refs. 1, 2, 3, and 4

2шт.

16

L101358

GRILLE

- radiator protecting, used with Refs. 1, 2, 3, and 4

1шт.

17

L48759

CONNECTION,ELECTRIC

RECEPTACLE - 1/4 turn, used with Refs. 1, 2, 3, and 4

2шт.

18

151-548

RIVET,Pop, 1/8" x .462"

POP RIVET - used with Refs. 1, 2, 3, and 4

4шт.

19

L59458

BRACKET

- lamp, used with Refs. 1 and 2

1шт.

20

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

21

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

22

25-104

NUT,1/4"-20, G5

2шт.

23

L72190

SCREEN

- grille, used with Refs. 2, 4, and 6

1шт.

24

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

25

D40236

CLAMP

- screen

4шт.

26

L59180

WASHER

- special

4шт.

27

131-651

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16"-18 NC

4шт.

28

L70631

GRILLE

- forestry models, used with Refs. 2 and 4

1шт.

29

L106949

GRILLE

- forestry models, not shown, used with Refs. 6

1шт.

30

L111502

GRILLE

- radiator, used with Ref. 5

1шт.

31

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, , Used with refs. 5 and 6 1/8" x 3/4", Slotted

1шт.

32

L73738

HANDLE

- grille latch, used with Refs. 5 and 6

1шт.

33

138-55

LOCK PIN,1/8" x 5/8", Slotted

PIN, , Used with Refs. 5 and 6 1/8" x 5/8", Slotted

1шт.

34

195-25

WASHER,3/8"

- flat, 7/8", used with Refs. 5 and 6

1шт.

35

L76665

SPRING

- latch, used with Refs. 5 and 6

1шт.

36

L73742

ROD

- latch, used with Refs. 5 and 6

1шт.

37

11-528

BOLT,Short NK, 5/16"-18 x 1 3/4", G2

CARRIAGE, 5/16"-18 x 1 3/4", G2, If used

3шт.

38

L52467

COVER

- radiator cap access hole, if used

1шт.

39

L50932

PLATE

- cover mounting, if used

1шт.

40

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16"-18 NC, if used

3шт.

41

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

If used Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

42

L52473

BRACKET

- grille lock, if used

1шт.

43

95-6

WASHER,3/8"

- flat, , if used 3/8"

2шт.

44

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8"-16 NC, if used

2шт.

45

D93753

PADLOCK

- includes keys, if used, Includes: Ref. 46 and 47

1шт.

46

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, if used

2шт.

47

R29555

KEY

- for Master padlock only, if used

2шт.

48

L114486

PLATE

- radiator baffle, lower, Start Serial: 9154754

1шт.

49

REF

INSTRUCTION

TRIM - plate edge 35" (889" mm) long, cut from D52812, see below

1шт.

Part of trim, P/N D52812

1шт.

50

L114529

PLATE

- baffle retainer

3шт.

51

H381269

U-BOLT

- includes nuts

3шт.

52

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

D52812

RUBBER STRIP

TRIM - bulk length, 83", 2108 mm, long, Includes: Ref. 49

1шт.
