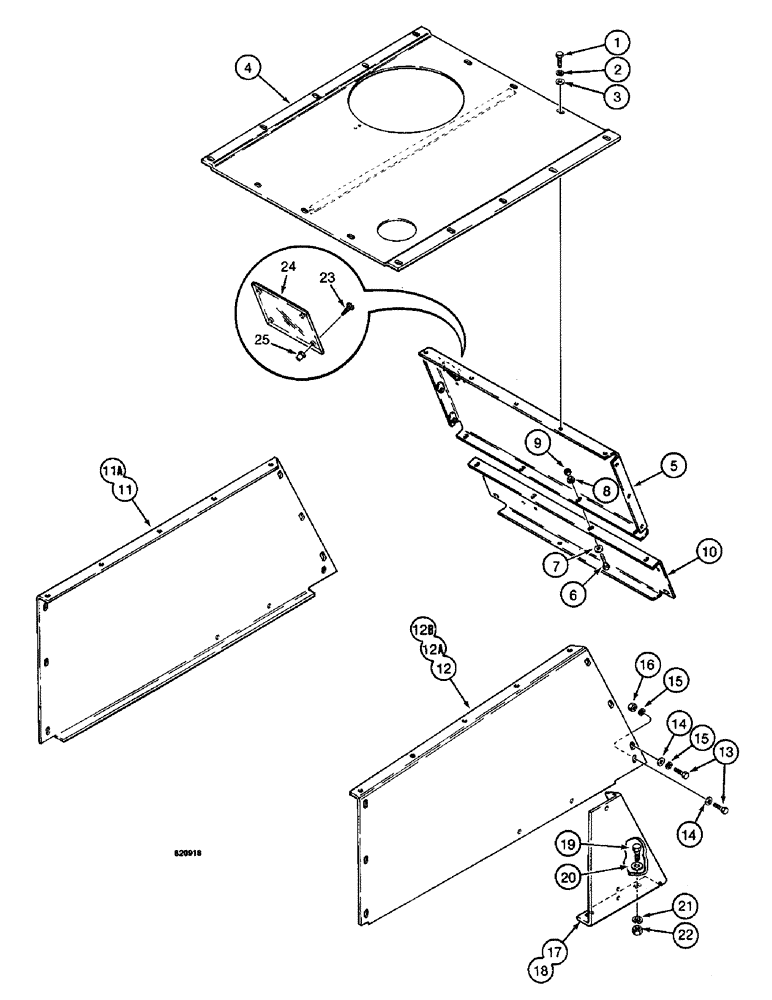

Запчасти Case W14 (562) - HOOD AND FRONT PANEL (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
16шт.
2
92-6
LOCK WASHER,3/8"
16шт.
3
95-6
WASHER,3/8"
- flat, 3/8"
16шт.
4
L50692
HOOD
TOP - hood, standard
1шт.
4a
L55949
TOP - hood, forestry model, not shown
1шт.
4b
L107665
TOP - hood, turbocharged models, not shown
1шт.
4c
L100726
TOP - hood, backhoe models, not shown
1шт.
5
L70050
PANEL
- front, upper
1шт.
6
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
8шт.
7
95-6
WASHER,3/8"
- flat, 3/8"
8шт.
8
92-6
LOCK WASHER,3/8"
8шт.
9
25-106
NUT,3/8"-16, G5
- hex, 3/8"-16 NC
8шт.
10
L114201
PLATE ASSY.
PANEL - front, lower, Serial Range: -9154965
1шт.
10
L114485
STRAP
PANEL - front, lower, Start Serial: 9154965
1шт.
11
L50729
PANEL
SIDE PANEL - hood, left-hand
1шт.
11a
L58383
HOOD
SIDE PANEL - hood, left-hand, used with precleaner, not shown
1шт.
12
L50730
PANEL
SIDE PANEL - hood, right-hand
1шт.
12a
L100854
HOOD
SIDE PANEL - hood, right-hand, 26C backhoe model, if used, not shown
1шт.
12b
L55794
HOOD
SIDE PANEL - hood, right-hand, 26C backhoe model with spark arresting muffler, if used, not shown
1шт.
13
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
14шт.
14
95-6
WASHER,3/8"
- flat, 3/8"
14шт.
15
92-6
LOCK WASHER,3/8"
14шт.
16
25-106
NUT,3/8"-16, G5
- hex, 3/8"-16 NC
2шт.
17
L79102
FILTER ASSY
SUPPORT - hood, right-hand front
1шт.
18
L73122
POST
SUPPORT - hood, left-hand front
1шт.
19
13-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
If used Hex, 1/2"-13 x 1 1/4", G5, Full Thd
4шт.
19
13-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
If used Hex, 1/2"-13 x 1 1/2", G5, Full Thd
4шт.
20
95-8
WASHER,1/2"
flat 1/2"
4шт.
21
92-8
LOCK WASHER,1/2"
4шт.
22
25-108
NUT,1/2"-13, G5
- hex, 1/2"-13 NC
4шт.
23
187-491
SELF-TAP SCREW,Hex Hd, 1/4" x 1"
SCREW - self-tapping, No. 14 - 10 NC x 1", if used
4шт.
24
L54570
COVER
- tachometer, front panel, if used
1шт.
25
L72459
SPACER
- cover, if used
4шт.
Выбрано товаров: 33
