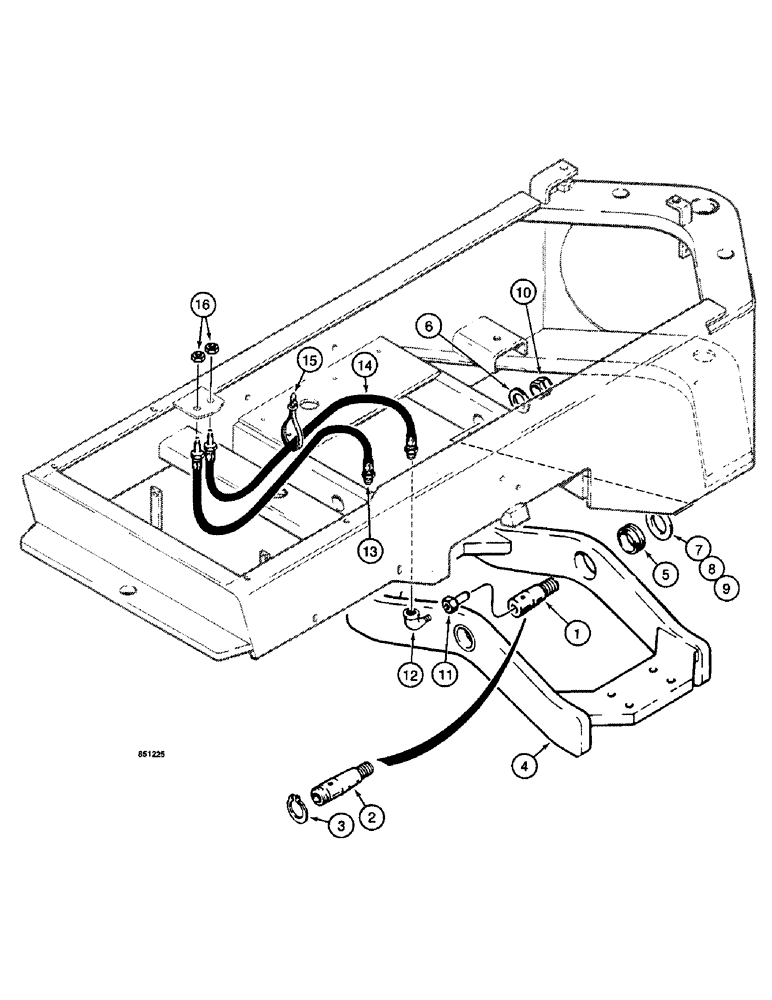

Запчасти Case W14 (561A) - TRUNNION AND LUBRICATION LINES (09) - CHASSIS/ATTACHMENTS

1

L55325

PIN

- trunnion pivot, without snap ring groove, order L73055 pin and (1) D26919 snap ring

2шт.

2

L73055

PIN,50.8mm OD x 142.24mm L

- trunnion pivot, with snap ring groove

2шт.

3

D26919

SNAP RING,#200, Ext

Ring, Snap, , used with L73055 pin only #200, Ext

2шт.

L55328

FUNNEL

TRUNNION ASSEMBLY - rear frame, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

TRUNNION - rear frame

1шт.

5

L71190

BUSHING

- trunnion

2шт.

6

L47224

WASHER

- special

2шт.

7

L60777

WASHER

- special, spacer, 1/8" thick

1шт.

8

L60778

WASHER,51.3mm ID x 114.3mm OD x 4.8mm Thk

- special, spacer, 3/16" thick

1шт.

9

L60776

WASHER

- special, spacer, 1/4" thick

1шт.

10

131-43

LOCK NUT,1 1/2"-12

NUT - hex, self-locking, 1-1/2"-12 NF

2шт.

11

L52499

BOLT

FITTING - special, trunnion greasing

2шт.

12

219-402

ADAPTER,90 Degree, 1/4"-1/8 NPTF

STREET ELBOW - 90 degree, 1/8" NPT

2шт.

13

L54693

HOSE

- grease, rear trunnion pin, 27" (686 mm) long

1шт.

14

L54694

HOSE,4.8mm ID x 1041mm L

- grease, front trunnion pin, 41" (1041 mm) long, for service order Refs. 17 and 18 below

1шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

16

F53473

LOCK NUT,1/8-27 NPSM

- lock

2шт.

17

R45862

HOSE,3.17mm ID x 1041.4mm L, SAE 100R7

- grease, service, 41" (1041 mm) long, not shown

1шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper, Service, Not shown 1/4"-28 NPT x .54" lg

1шт.
