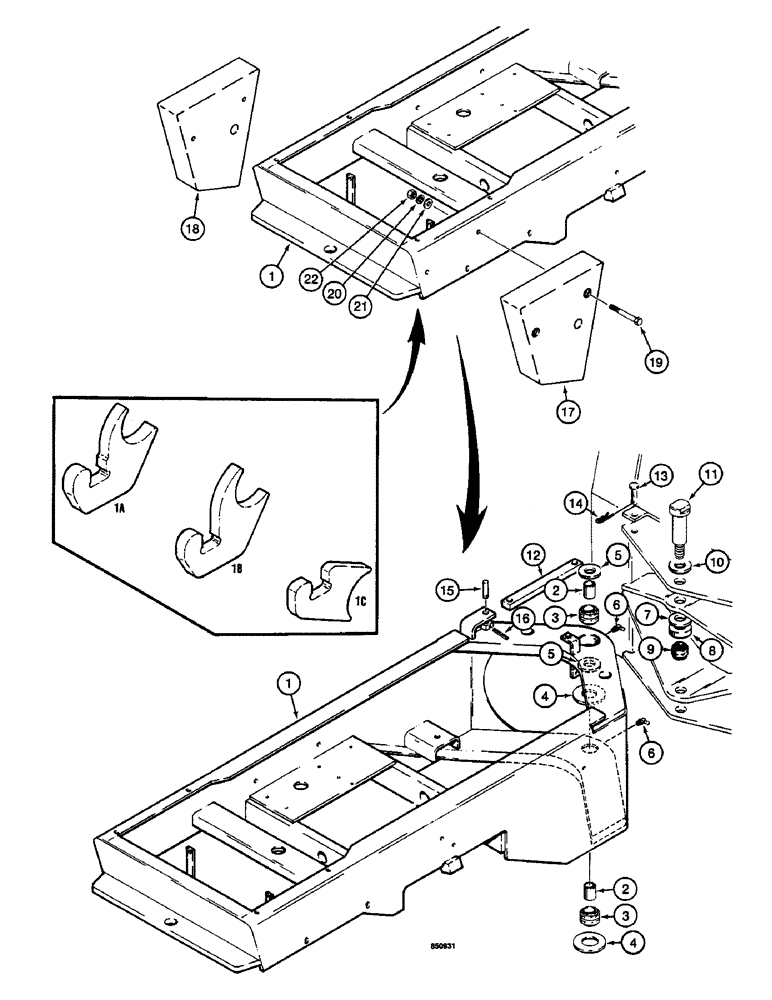

Запчасти Case W14 (560) - REAR FRAME AND TRUNNION, COUNTERWEIGHT (09) - CHASSIS/ATTACHMENTS

1

L103883

CHASSIS

FRAME - W14H only, not shown

1шт.

1

L114874

CHASSIS

FRAME - for units with 35A or 35C backhoe, not shown, must also order Ref. 1A

1шт.

1

L100395

FRAME - for units with 35 backhoe, not shown, must also order Ref. 1B

1шт.

1

L77334

FRAME

- for units with 26C backhoe, not shown, must also order Ref. 1C

1шт.

1

L114351

CHASSIS

FRAME - units without backhoe, W14 and W14FL only

1шт.

1a

L108385

HOOK

- lower, 35A or 35C backhoe mounting, used with L109644 frame

2шт.

1b

L100407

HOOK

- lower, 35 backhoe mounting, used with L100395 frame

2шт.

1c

L55005

HOOK

- lower, 26C backhoe mounting, used with L77334 frame

2шт.

2

L55640

BUSHING,38.1mm ID x 50.75mm OD x 57.15mm L

- rear pivot plate

2шт.

3

D23601

HOUSING

BEARING ASSEMBLY - pivot

2шт.

4

L55851

WASHER,69mm ID x 117mm OD x 6.86mm Thk

- special

2шт.

5

L53964

SEAL

- bearing, upper, 5/16" (8 mm) thick

2шт.

6

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

7

L51472

WASHER,39mm ID x 63.5mm OD x 9.6mm Thk

- special

2шт.

8

L51051

WASHER,26.92mm ID x 63.5mm OD x 12.7mm Thk

- special

2шт.

9

131-19

LOCK NUT,1"-14, GB

NUT - hex, self-locking, 1" - 14 NF

2шт.

10

L79094

WASHER

- hardened

2шт.

11

L74407

PIN,57.15mm OD x 170.69mm L

BOLT - pivot

2шт.

12

L51230

LINK

- safety

1шт.

13

141-16

CLEVIS PIN,3/4" x 3"

- 3/4", safety link

1шт.

14

136-164

COTTER PIN,Int, 5/16" x .120"

HAIR PIN - clevis pin

1шт.

15

L51452

AXLE PIN

PIN - link

1шт.

16

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, 3/16" x 1 1/2", Slotted

1шт.

17

L114184

BALANCER

COUNTERWEIGHT - right-hand, 278 lbs.

1шт.

18

L114185

BALANCER

COUNTERWEIGHT - left-hand, 278 lbs.

1шт.

19

13-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

- hex head, 3/4"-10 NC x 5-1/2", counterweight

4шт.

20

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Counterweight 3/4"

4шт.

21

95-12

WASHER,3/4"

- flat, , counterweight 3/4"

4шт.

22

25-1012

NUT,3/4"-10, G5

Counterweight 3/4"-10, G5

4шт.
