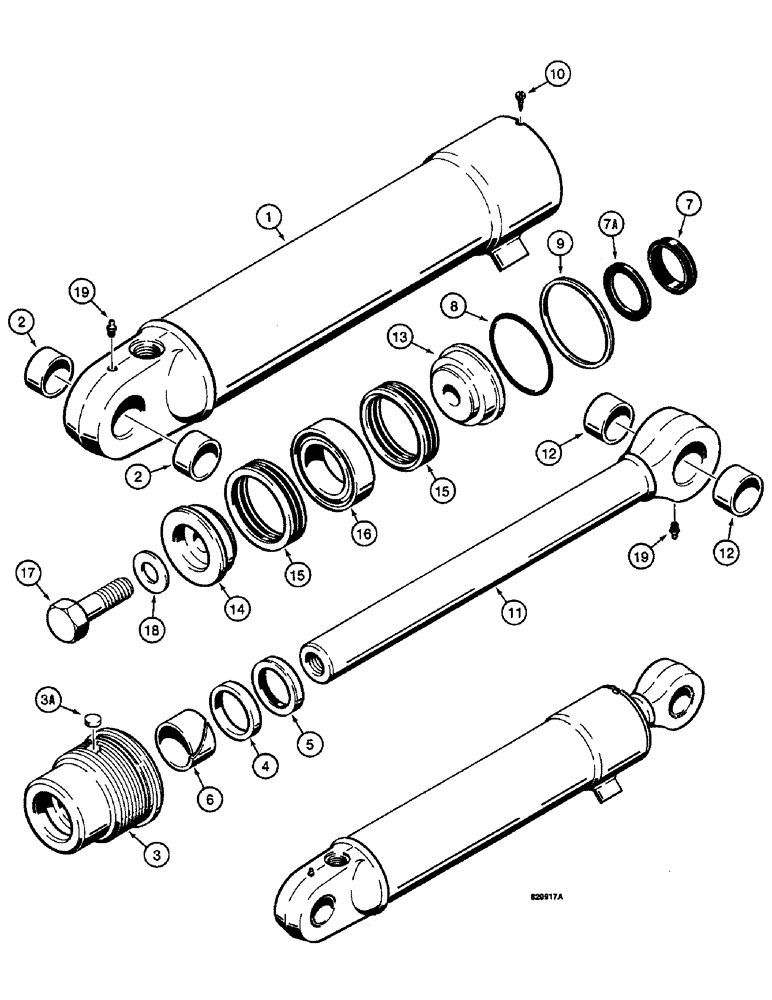

Запчасти Case W14 (556) - G33770 AND G33771 CLAM CYLINDERS, WITH TWO PIECE PISTON (09) - CHASSIS/ATTACHMENTS

G33770

HYDRAULIC CYLINDER

CYLINDER - right-hand, 3" (76 mm) ID x 10-1/2" (266 mm) stroke, no longer available, for complete cylinder assembly order G101226 cylinder, parts list figure 558, Includes: Ref. 1 - 19

1шт.

G33771

CYLINDER BLOCK

CYLINDER - left-hand, 3" (76 mm) ID x 10-1/2" (266 mm) stroke, no longer available, for complete cylinder assembly order G101227 cylinder, parts list figure 558, Includes: Ref. 1 - 19

1шт.

1

D46911

CYLINDER

TUBE ASSEMBLY - cylinder body, right-hand, Includes: Ref. 2

1шт.

1

D46910

TUBE

ASSEMBLY - cylinder body, left-hand, Includes: Ref. 2

1шт.

2

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube

2шт.

G104222

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

4

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer

1шт.

Part of seal kit, P/N G105512

1шт.

6

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center

1шт.

Part of seal kit, P/N G105512

1шт.

7

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, wide, with O-ring

1шт.

Part of seal kit, P/N G105512

1шт.

7

G100776

SEAL

U-CUP SEAL - piston rod, service option - extreme heat or cold

1шт.

7a

G104224

SEAL

- piston rod, narrow, used in addition to Ref. 7 in some glands

1шт.

Part of seal kit, P/N G105512

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of seal kit, P/N G105512

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of seal kit, P/N G105512

1шт.

10

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex head, slotted, self-tapping, No. 8 - 32 NC x 3/8", plated, if used

1шт.

11

G33467

ROD

- piston, 1-1/2" (38 mm) diameter, Includes: Ref. 12

1шт.

12

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

13

G33150

PISTON

- split, rod end

1шт.

14

D28366

PISTON

- split, bolt end, Includes: Ref. 15 and 16

1шт.

G33151

PACKING

ASSEMBLY - piston

1шт.

Part of seal kit, P/N G105512

1шт.

15

NSS

NOT SOLD SEPARAT

PACKING ASSEMBLY - V-type

2шт.

16

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

17

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex head, 3/4"-16 NF x 2-1/2", grade 8

1шт.

18

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

G105512

GASKET KIT

KIT - seal, Includes: Refs. 5, 6, 7, 7A, 8, 9 and P/N G33151, same as G34332 kit

1шт.
