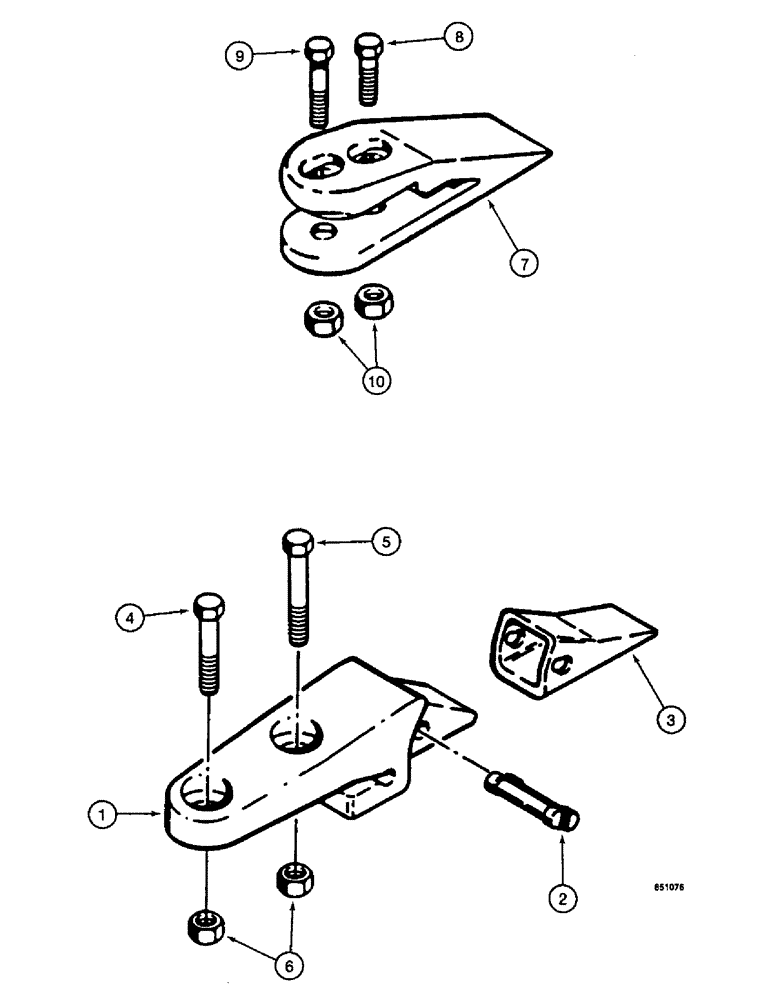

Запчасти Case W14 (550) - BUCKET TEETH, USED ON 84" (2133 MM) WIDE BUCKETS WITH WELD ON CUTTING EDGE (09) - CHASSIS/ATTACHMENTS

D50780

TOOTH

ASSEMBLY - bucket, Includes: Ref. 1 - 3

8шт.

1

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

2

D39094

BUCKET TOOTH KEY

FLEX PIN - tooth

1шт.

3

D51750

BUCKET TOOTH POINT

POINT - tooth

1шт.

4

26-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- hex head, 5/8"-11 NC x 2-1/4", rear

8шт.

5

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex head, 5/8"-11 NC x 2-1/2", front

8шт.

6

129-563

NUT,5/8"-11, G8

- hex, 5/8"-11 NC

16шт.

7

D46885

TOOTH

- bucket, clam

7шт.

8

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Front, clam bucket teeth Hex, 1/2"-13 x 2", G5

7шт.

9

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex head, 1/2"-13 NC x 2-1/4", rear, clam bucket teeth

7шт.

10

25-108

NUT,1/2"-13, G5

- hex, 1/2"-13 NC, clam bucket teeth

14шт.
