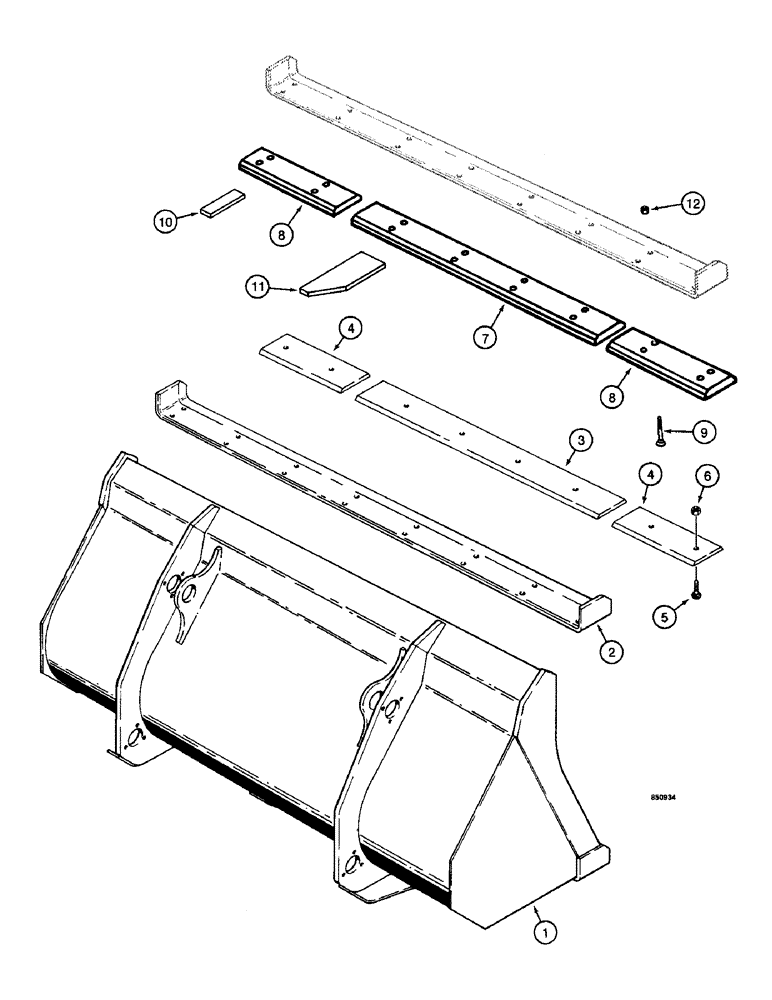

Запчасти Case W14 (548) - LOADER BUCKETS, 1-1/4 CUBIC YARD (.96 CUBIC METRE BUCKET), 1 (09) - CHASSIS/ATTACHMENTS

L50372

BUCKET ASSEMBLY - loader, 84" (2133 mm) wide, machinery item - see figure 2 for ordering, Includes: Ref. 1 and 2

1шт.

L72656

BUCKET ASSEMBLY - loader, 84" (2133 mm) wide, machinery item - see figure 2 for ordering, Includes: Ref. 1 and 2

1шт.

L113258

BUCKET ASSEMBLY - loader, 84" (2133 mm) wide, machinery item - see figure 2 for ordering, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

L112523

EDGE, CUTTING

CUTTING EDGE - bucket, weld on

1шт.

L51926

BUCKET ASSEMBLY - loader, 84" (2133 mm) wide, machinery item - see figure 2 for ordering, Includes: Ref. 1 and 2

1шт.

L72710

BUCKET ASSEMBLY - loader, 84" (2133 mm) wide, machinery item - see figure 2 for ordering, Includes: Ref. 1 and 2

1шт.

L112619

BUCKET ASSEMBLY - loader, 84" (2133 mm) wide, machinery item - see figure 2 for ordering, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

L112523

EDGE, CUTTING

CUTTING EDGE - bucket, weld on

1шт.

L51871

BUCKET ASSEMBLY - loader, 94" (2387 mm) wide, machinery item - see figure 2 for ordering, Includes: Ref. 1 and 2

1шт.

L72699

BUCKET ASSEMBLY - loader, 94" (2387 mm) wide, machinery item - see figure 2 for ordering, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

L112523

EDGE, CUTTING

CUTTING EDGE - bucket

1шт.

L36244

KIT - bolt on cutting edge, service option for 84" (2133 mm) wide buckets with weld on cutting edge, order component parts, Includes: Ref. 3 - 6

1шт.

3

L111777

EDGE

CUTTING EDGE - center, bolt on

1шт.

4

L111778

EDGE

CUTTING EDGE - end, bolt on

2шт.

5

118-427

PLOW BOLT,5/8"-11 x 2 3/4", G8

- 5/8"-11 NC x 2-3/4", grade 8, bolt on cutting edge kit

8шт.

6

129-563

NUT,5/8"-11, G8

- hex, 5/8"-11 NC, grade 8, bolt on cutting edge kit

8шт.

L36291

KIT - bolt on cutting edge, service option for 84" (2133 mm) wide buckets with weld on cutting edge, order component parts, bolt on cutting edge kit, Includes: Ref. 7 - 12

1шт.

7

L115718

EDGE

CUTTING EDGE - center, bolt on

1шт.

8

L115719

EDGE

CUTTING EDGE - end, bolt on

2шт.

9

118-415

PLOW BOLT,5/8"-11 x 2 1/4", G8

- 5/8"-11 NC x 2-3/4", grade 8, bolt on cutting edge kit

16шт.

10

L116632

PLATE ASSY.

PLATE - wear, bucket ear, bolt on cutting edge kit

2шт.

11

L116319

PLATE ASSY.

PLATE - wear, outer, bolt on cutting edge kit

2шт.

12

129-563

NUT,5/8"-11, G8

- hex, 5/8"-11 NC, grade 8, bolt on cutting edge kit

16шт.

There is NO bolt-on cutting edge available through CASE for the 94" wide loader bucket...per note in hard copy catalog

1шт.
