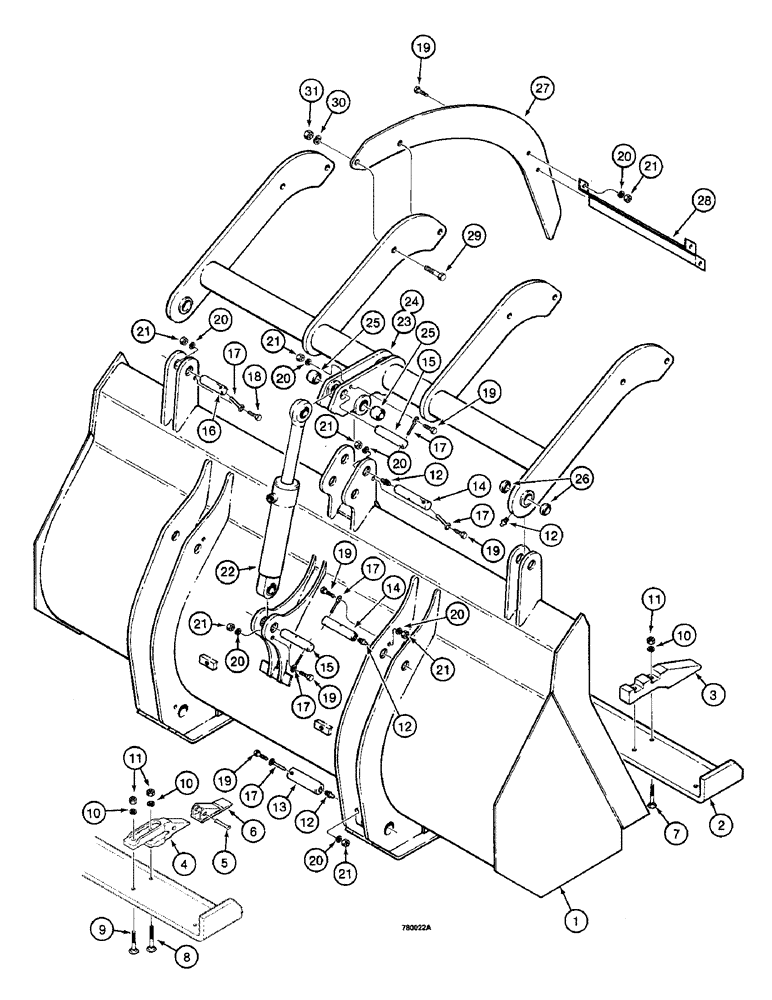

Запчасти Case W14 (546) - GRAPPLE BUCKET (09) - CHASSIS/ATTACHMENTS

L78154

GRAPPLE BUCKET - no longer available, order L108602 grapple bucket, uses Ref. 23, L78027 grapple, Includes: Ref. 1 and 2

1шт.

L108602

GRAPPLE BUCKET - machinery item, see figure 2 for ordering, uses, Ref. 24, L108590 grapple, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - grapple

1шт.

2

L77994

EDGE, CUTTING

CUTTING EDGE - grapple bucket

1шт.

No bolt on edges were released for this grapple bucket.

1шт.

3

L78019

TEETH

TOOTH - no longer available, order, L109023 tooth, see Refs. 4, 5, and 6

8шт.

L109023

TOOTH

- bucket, Includes: Ref. 4 - 6

8шт.

4

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

5

D39448

PIN

FLEX PIN - tooth

1шт.

6

D39090

POINT

- tooth

1шт.

7

19-1052

PLOW BOLT,#3, 5/8" - 11 x 3 1/4", Gr 5

- 5/8"-11 NC x 3-1/4", used with L78019 tooth

16шт.

8

L12992

LINK

PLOW BOLT - front, 5/8"-11 NC x 3-1/2", used with L109423 tooth (replaces 19-1056)

8шт.

9

L126991

BOLT

PLOW BOLT - rear, 5/8"-11 NC x 3", used with L109423 tooth (replaces 19-1048)

8шт.

10

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

11

25-1010

NUT,5/8"-11, G5

16шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

7шт.

13

L79796

AXLE PIN

PIN - bucket, lower

2шт.

14

L50514

PIN

- bucket and grapple

3шт.

15

L74886

PIN

- cylinder

2шт.

16

D51244

AXLE PIN,38.1mm OD x 99.06mm L

PIN - grapple

2шт.

17

R17756

ROD,12.7mm OD x 109.54mm L

PIN - rod eye

9шт.

18

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

19

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2"-13 NC x 1-3/4"

15шт.

20

92-8

LOCK WASHER,1/2"

17шт.

21

25-108

NUT,1/2"-13, G5

- hex, 1/2"-13 NC

17шт.

22

G100723

CYLINDER ASSY.

CYLINDER - grapple, parts list figure 496

1шт.

23

L78027

TONGS

GRAPPLE - used on L78154 bucket, no longer available, see below

1шт.

Part of grapple kit, L36226

1шт.

24

L108590

GRIPPER

GRAPPLE - used on L108602 bucket, Includes: Ref. 25 and 26

1шт.

25

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- used on both Refs. 23 and 24

2шт.

26

D33127

BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L

- used on both Refs. 23 and 24

4шт.

27

L78058

TINE

S - fork

4шт.

28

L78060

SPACER

- tines

3шт.

29

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

8шт.

30

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

31

25-1012

NUT,3/4"-10, G5

8шт.

L36226

ATTACHMENT

KIT - grapple, Includes: ref. nos. 23, 24 and instruction sheet

1шт.
