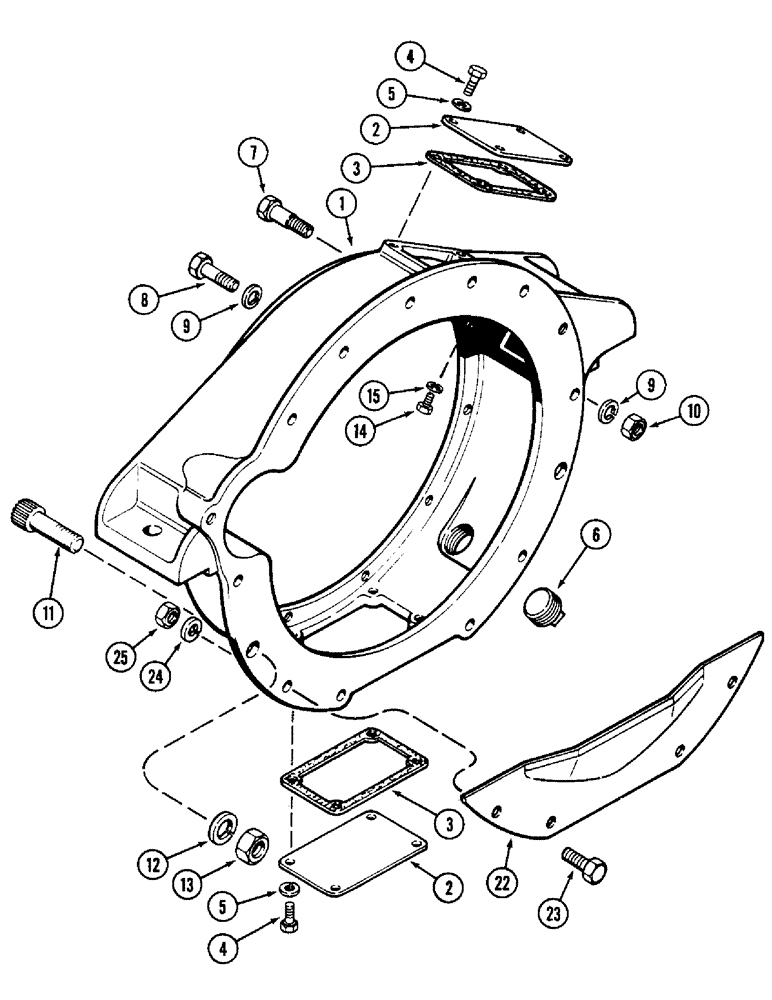

Запчасти Case W14 (034) - FLYWHEEL HOUSING, 336BD AND 336BDT DIESEL ENGINE, PRIOR TO ENGINE S/N 10177925 (02) - ENGINE

1

A153190

HOUSING

ASSEMBLY - flywheel (Replaces A21040), Includes: Ref. 2 - 6

1шт.

2

A22584

COVER

PLATE - hand hole

2шт.

3

A22585

GASKET

- hand hole plate

2шт.

4

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

5

92-5

LOCK WASHER,5/16"

8шт.

6

221-17

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG - square head, 1-1/4 inch PT

1шт.

7

A149764

STEP BOLT

BOLT - shoulder, 3-9/64 inch

1шт.

7

A149765

STEP BOLT

BOLT - shoulder, 2-21/32 inch

1шт.

8

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

3шт.

8

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

1шт.

8

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

2шт.

9

92-8

LOCK WASHER,1/2"

8шт.

10

25-108

NUT,1/2"-13, G5

- hex, 1/2 inch NC

4шт.

11

166-138

12 PT SCREW,Flg, 3/4" - 10 x 3", Gr 8

- 12 point head, 3/4 NC x 3 inch

2шт.

12

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

13

129-137

NUT,3/4"-10, G5

(Replaces 25-1012) 3/4"-10, G5

2шт.

14

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

PLUG - hex, 1/4 NC x 1/2 inch

2шт.

15

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

22

A58931

GUARD

SHIELD - dust

1шт.

23

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

- hex, 1/2 NC x 1-3/8 inch (Replaces 13-820)

4шт.

24

92-8

LOCK WASHER,1/2"

4шт.

25

25-108

NUT,1/2"-13, G5

- hex, 1/2 inch NC

4шт.
