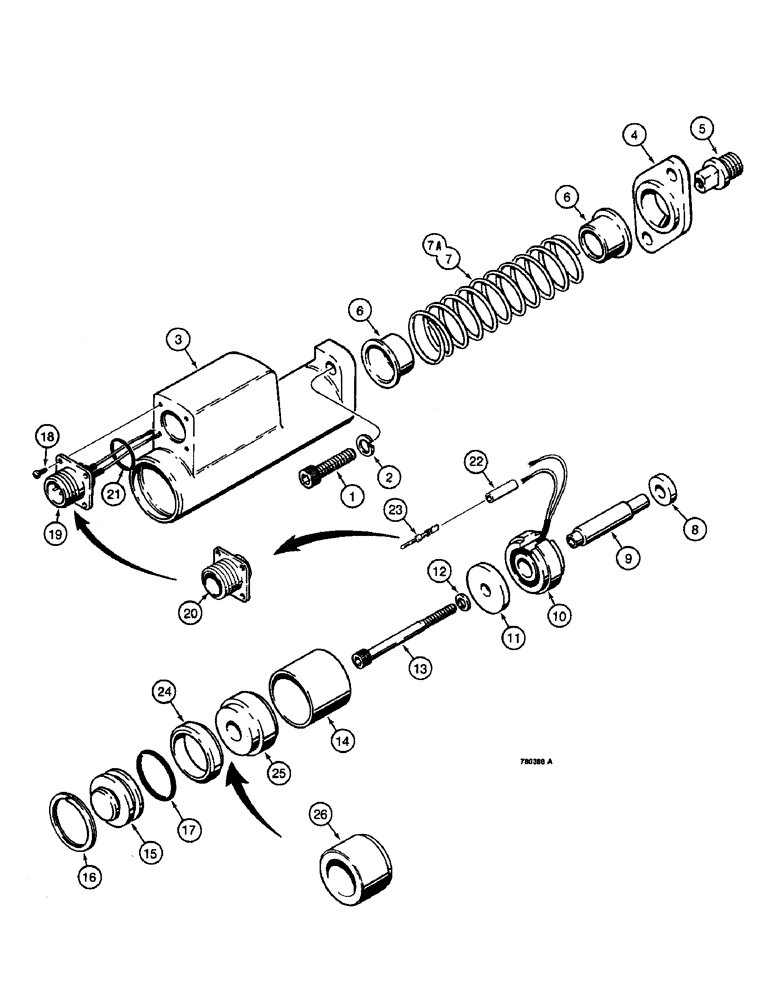

Запчасти Case W14 (522) - HYDRECO BUCKET SPOOL DETENT (08) - HYDRAULICS

N7171

SPOOL

DETENT - bucket spool, used with L104939 and L108365 valves, Includes: Ref. 1 - 26

1шт.

D82928

DETENT

- bucket spool, used with L100003 valve, Includes: Ref. 1 - 26

1шт.

1

61-520

HEX SOC SCREW,5/16"-18 x 1 1/4"

BOLT - hex socket head, 5/16"-18 NC x 1-1/4"

2шт.

2

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

3

N9063

COVER ASSY

COVER - detent

1шт.

4

D80682

PLATE

- retaining

1шт.

5

D80681

PLUG

AND RETAINER - detent

1шт.

6

D24777

COLLAR

RETAINER - spring

2шт.

7

D80692

SPRING

- used on D82928 detent only

1шт.

7a

D24776

VALVE SPRING

SPRING - used on N7171 detent only

1шт.

8

D80685

SPACER

- washer

1шт.

9

D80687

SPACER

- tube

1шт.

10

D82930

COIL

- magnetic

1шт.

11

D80689

ARMATURE

- coil

1шт.

12

D80686

SPACER

- bolt

1шт.

13

61-448

HEX SOC SCREW,1/4"-20 x 3"

BOLT - hex socket head, 1/4"-20 NC x 3"

1шт.

14

D82711

SPACER

- coil

1шт.

15

D80683

PLUG

- cover

1шт.

16

D80691

SNAP RING,#150, 1.567, Int, Spiral

RETAINING RING - plug

1шт.

17

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

- plug

1шт.

18

187-1709

SELF-TAP SCREW,Slotted Pan Hd, #4 x 3/8"

SCREW - self-tapping, No. 4 - 40 NC x 3/8"

4шт.

19

D80694

CONNECTION,ELECTRIC

CONNECTOR - electric receptacle, used on D82928 detent only

1шт.

20

N7172

CONNECTOR, ELEC

CONNECTOR - electric receptacle, used on N7171 detent only

1шт.

21

S16824

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

- connector

1шт.

22

D83095

ELECTRICAL WIRE

CONNECTOR - wire

2шт.

23

N7173

TERMINAL STRIP

CONNECTOR - wire, used on N7171 detent only

2шт.

24

D82713

SPACER

- used on D82928 detent only

1шт.

25

D82712

SPACER

- used on D82928 detent only

1шт.

26

N6601

SPACER

- used on N7171 detent only

1шт.
