Артикул
Название
Примечание
Количество

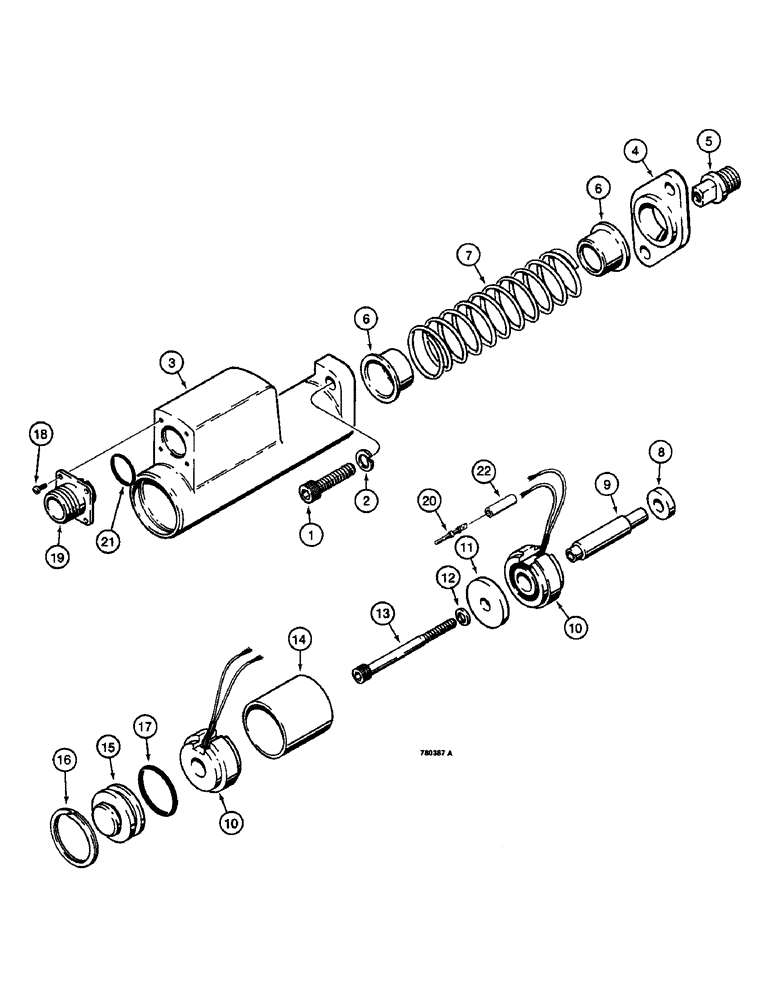

D82929
VALVE
DETENT - lift spool, Includes: Ref. 1 - 22
1шт.
1
61-520
HEX SOC SCREW,5/16"-18 x 1 1/4"
BOLT - hex socket head, 5/16"-18 NC x 1-1/4"
2шт.
2
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
2шт.
3
N9063
COVER ASSY
COVER - detent
1шт.
4
D80682
PLATE
- retaining
1шт.
5
D80681
PLUG
AND RETAINER - detent
1шт.
6
D24777
COLLAR
RETAINER - spring
2шт.
7
D80692
SPRING
- detent
1шт.
8
D80685
SPACER
- washer
1шт.
9
D80687
SPACER
- tube
1шт.
10
D82930
COIL
- magnetic
2шт.
11
D80689
ARMATURE
- coil
1шт.
12
D80686
SPACER
- bolt
1шт.
13
61-448
HEX SOC SCREW,1/4"-20 x 3"
BOLT - hex socket head, 1/4"-20 NC x 3"
1шт.
14
D80684
SPACER
- coil
1шт.
15
D80683
PLUG
- cover
1шт.
16
D80691
SNAP RING,#150, 1.567, Int, Spiral
RETAINING RING - plug
1шт.
17
A27577
O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro
- plug
1шт.
18
187-1709
SELF-TAP SCREW,Slotted Pan Hd, #4 x 3/8"
SCREW - self-tapping, No. 4 - 40 NC x 3/8"
4шт.
19
N8748
CONTAINER
CONNECTOR - electric receptacle
1шт.
20
N7173
TERMINAL STRIP
CONNECTOR - wire, pin type
4шт.
21
S16824
O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro
- connector
1шт.
22
D83095
ELECTRICAL WIRE
CONNECTOR - wire
4шт.
Выбрано товаров: 23
