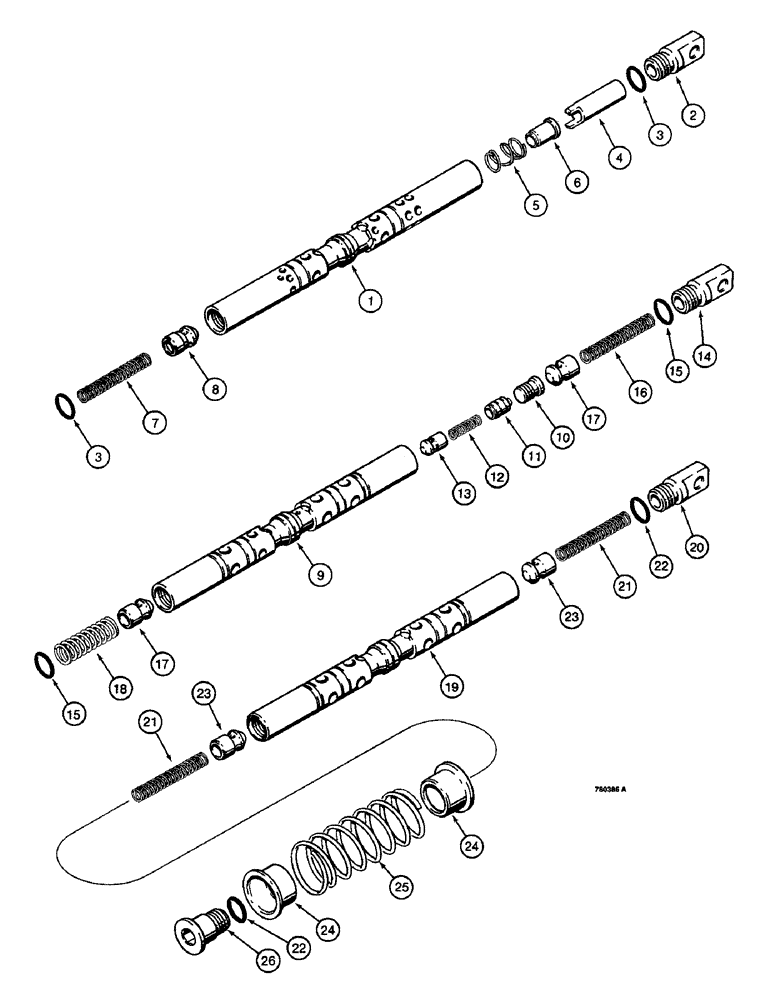

Запчасти Case W14 (518) - HYDRECO VALVES SPOOLS, LIFT SPOOL, BUCKET SPOOL, AUXILIARY (08) - HYDRAULICS

1

NSS

NOT SOLD SEPARAT

SPOOL - lift

1шт.

2

D80672

PLUG

EYE - spool

1шт.

3

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- spool

2шт.

4

D80676

SPACER

- spool

1шт.

5

D80677

SPRING

- spool

1шт.

6

D80678

VALVE

- check

1шт.

7

D24774

SPRING

- check

1шт.

8

D80679

VALVE

- check

1шт.

9

NSS

NOT SOLD SEPARAT

SPOOL - bucket

1шт.

10

N7385

CAP

- check valve, bucket spool

1шт.

11

N7386

PISTON

- check valve, bucket spool

1шт.

12

N7387

SPRING

- check valve, bucket spool

1шт.

13

N7388

VALVE, CHECK

CHECK VALVE - spool, bucket

1шт.

14

D80672

PLUG

EYE - spool, bucket

1шт.

15

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- spool, bucket

2шт.

16

D24774

SPRING

- spool, bucket

1шт.

17

D24785

VALVE

- check, bucket spool

2шт.

18

D80674

SPRING

- check, bucket spool

1шт.

19

NSS

NOT SOLD SEPARAT

SPOOL - auxiliary

1шт.

20

D80672

PLUG

EYE - spool, auxiliary

1шт.

21

D24774

SPRING

- spool, auxiliary

2шт.

22

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- spool, auxiliary

2шт.

23

D24785

VALVE

- check, auxiliary spool

2шт.

24

D24777

COLLAR

RETAINER - spring, auxiliary spool

2шт.

25

D80692

SPRING

- centering, auxiliary spool

2шт.

26

D24780

PLUG

- spool, auxiliary

1шт.
