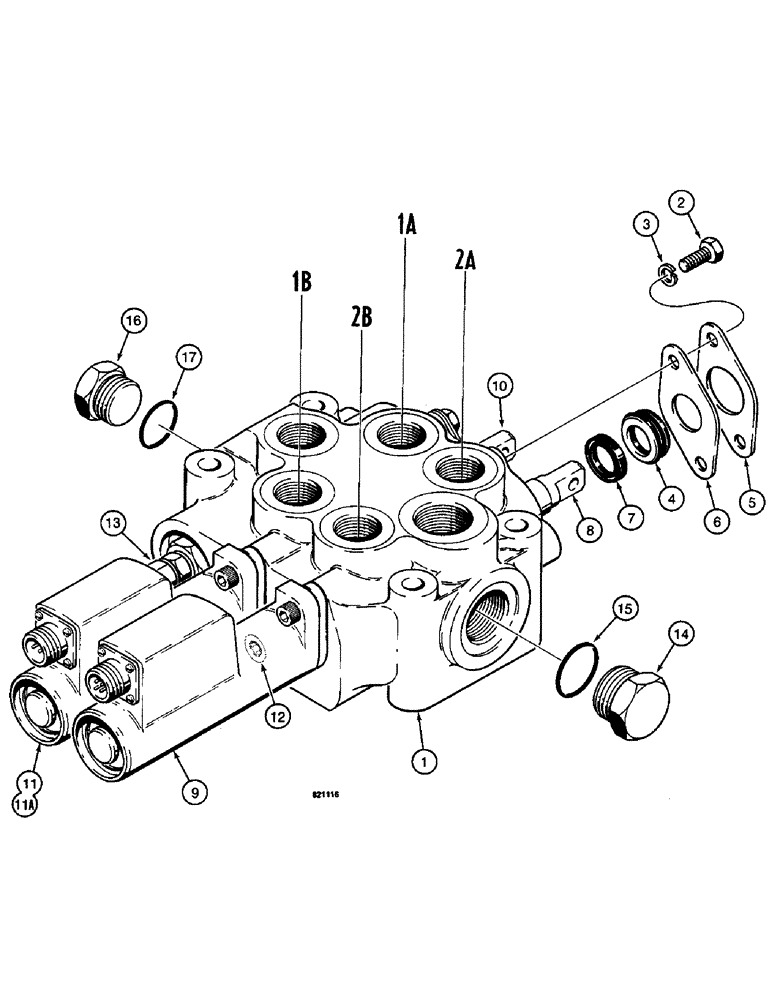

Запчасти Case W14 (514) - HYDRECO TWO SPOOL VALVES (08) - HYDRAULICS

L100003

VALVE

- two spool, Hydreco No. MVT025RF27

1шт.

L104939

VALVE

- two spool, Hydreco No. MVT025RF32

1шт.

L108365

VALVE

- two spool, Hydreco No. MVTO25RF39, Includes: Ref. 1 - 17

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

4

D82728

RING

WIPER - spool

2шт.

5

D82721

PLATE

- retaining, outer

2шт.

6

D82720

PLATE ASSY.

PLATE - retaining, inner

2шт.

7

D82727

SEAL

- spool

4шт.

8

REF

INSTRUCTION

SPOOL ASSEMBLY - lift, parts list figure 518

1шт.

9

D82829

ARM

DETENT ASSEMBLY - lift, parts list figure 520

1шт.

10

REF

INSTRUCTION

SPOOL ASSEMBLY - bucket, parts list figure 518

1шт.

11

D82928

DETENT

ASSEMBLY - bucket, parts list figure 522, L100003 valve

1шт.

11a

N7171

SPOOL

DETENT ASSEMBLY - bucket, parts list figure 522, L104939 and L108365 valves

1шт.

12

REF

INSTRUCTION

CIRCUIT RELIEF VALVE - parts list figure 524

2шт.

13

REF

INSTRUCTION

MAIN RELIEF VALVE - parts list figure 524

1шт.

14

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 15 Hex Hd, 1 5/16"-12 ORB

1шт.

15

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug

1шт.

16

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Includes: Ref. 17 Hex Hd, 1 1/16"-12 ORB

1шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug

1шт.
