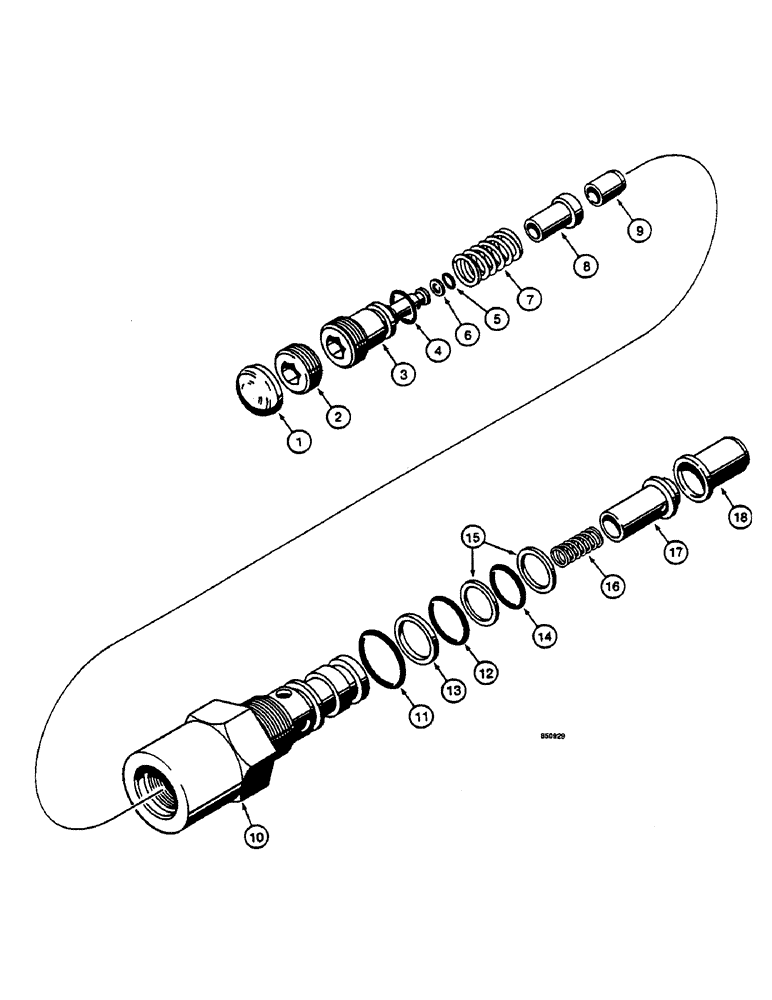

Запчасти Case W14 (512) - L32633 CIRCUIT RELIEF VALVE (PARKER), L33429 CIRCUIT RELIEF VALVE (PARKER) (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
L32633
VALVE
CIRCUIT RELIEF VALVE - used at ports 1A, 1B, and 2B, see figure 502, Includes: Ref. 1 - 18
3шт.
1
41-14
PLUG
- expansion
1шт.
2
L33449
PLUG
- end cap
1шт.
3
D65137
GUIDE
- spring
1шт.
4
A29197
O-RING,0.424" ID x 0.63" OD x 0.103"
- large
1шт.
5
A51274
O-RING,0.145" ID x 0.285" OD
- small
1шт.
6
D54860
RING
BACKUP RING - seal
1шт.
7
D37148
SPRING
- plunger
1шт.
8
D37151
PLUNGER
- relief
1шт.
9
D37075
SEAT
- plunger
1шт.
10
L33448
CAP
BODY - check valve
1шт.
11
A30843
O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro
- large
1шт.
12
F62114
O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro
- medium
1шт.
13
A41346
RING
BACKUP RING - seal
1шт.
14
A7982
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
- small
1шт.
15
G32626
RING
BACKUP RING - O-ring
2шт.
16
D48818
SPRING
- check poppet
1шт.
17
L32622
VALVE POPPET
POPPET - check
1шт.
18
L32631
VALVE
SEAT - check poppet
1шт.
L33429
VALVE
CIRCUIT RELIEF VALVE - used at port 2A, see figure 502, Includes: Ref. 1 - 18
1шт.
1
41-14
PLUG
- expansion
1шт.
2
L33449
PLUG
- end cap
1шт.
3
L33450
GUIDE
- spring
1шт.
4
A29197
O-RING,0.424" ID x 0.63" OD x 0.103"
- large
1шт.
5
D40356
O-RING
- small
1шт.
6
D40357
RING
BACKUP RING - seal
1шт.
7
D37148
SPRING
- plunger
1шт.
8
D37074
PLUNGER
- relief
1шт.
9
D37075
SEAT
- plunger
1шт.
10
L33448
CAP
BODY - check valve
1шт.
11
A30843
O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro
- large
1шт.
12
F62114
O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro
- medium
1шт.
13
A41346
RING
BACKUP RING - seal
1шт.
14
A7982
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
- small
1шт.
15
G32626
RING
BACKUP RING - seal
2шт.
16
D48818
SPRING
- check poppet
1шт.
17
L32622
VALVE POPPET
POPPET - check
1шт.
18
L32631
VALVE
SEAT - check poppet
1шт.
Выбрано товаров: 38
