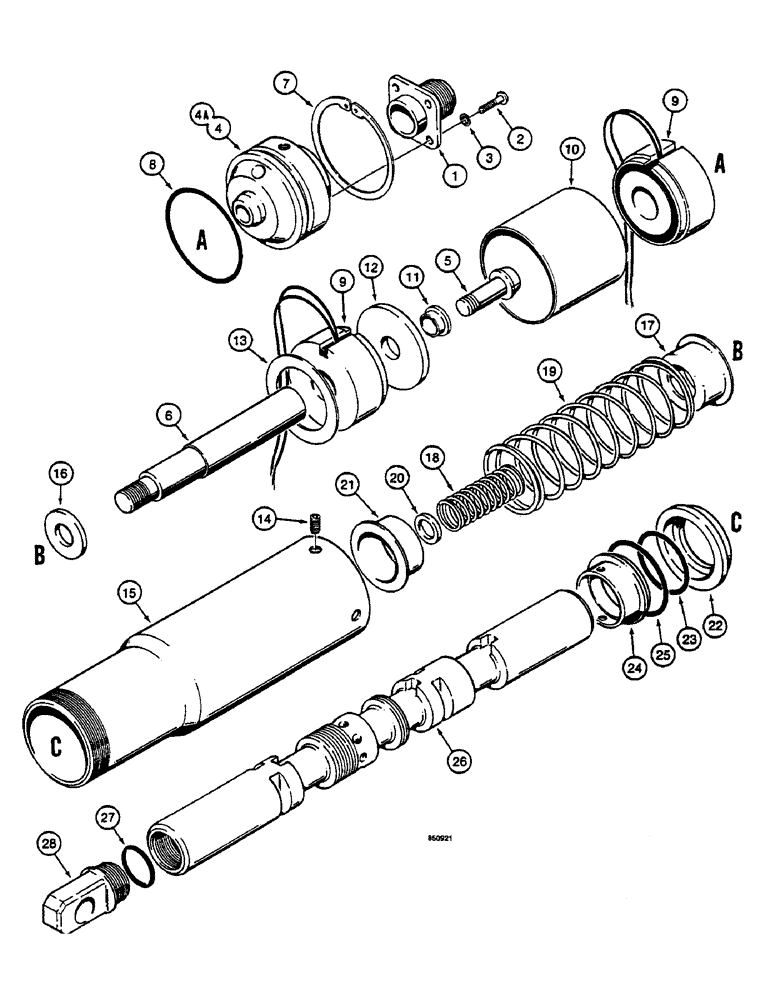

Запчасти Case W14 (506) - D71227 AND D71229 LIFT SPOOL (PARKER) (08) - HYDRAULICS

D71227

SPOOL

ASSEMBLY - lift, L70429 valve, Includes: Ref. 1 - 28

1шт.

D71229

SPOOL

ASSEMBLY - lift, L70430 valve, Includes: Ref. 1 - 28

1шт.

1

R33408

CONNECTOR, ELEC

CONNECTOR - spool

1шт.

2

187-1350

SELF-TAP SCREW,Cross Pan Hd, #4 x 5/16"

SCREW - pan head, No. 4 - 40 NC x 5/16"

4шт.

3

192-53

LOCK WASHER,#4

WASHER, LOCK, #4

4шт.

4

L33768

PLUG

- spool end, D71227 spool

1шт.

4a

D71230

PLUG

- spool end, D71229 spool

1шт.

5

N6776

SCREW

- special

1шт.

6

D56449

STUD

- spool

1шт.

7

L33769

SNAP RING,#187, 1.960", Int, Spiral

- end plug

1шт.

8

A15528

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

O-RING - plug

1шт.

9

L33762

COIL

AND HOLDER ASSEMBLY - magnetic detent

2шт.

10

L33781

SPACER

- coil

1шт.

11

D65130

SPACER

- clapper, if used

1шт.

12

D65129

WASHER

- special, clapper

1шт.

13

L33761

WASHER

- special, coil shim

1шт.

14

178-415

SET SCREW,Hdls Hex Skt, #10 - 24 x 3/8", Flat Pt

- hex socket headless, No. 10 - 24 NC x 3/8"

1шт.

15

L33778

HOUSING

- magnetic detent

1шт.

16

L33777

WASHER

- spring retaining

1шт.

17

A13164

RETAINER,13.49mm ID x 37.31mm OD

SEAT - spring retaining, outer

1шт.

18

L33775

SPRING

- feel, magnetic detent

1шт.

19

L33776

SPRING

- centering

1шт.

20

L33774

RING

WASHER - special

1шт.

21

A16846

CAP

SEAT - spring, inner

1шт.

22

L32640

RETAINER

- O-ring, inner

1шт.

23

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- spool seal, both ends

2шт.

24

L33433

RESTRICTOR

RETAINER - O-ring, outer

1шт.

25

L32613

O-RING

- large

1шт.

26

NSS

NOT SOLD SEPARAT

SPOOL - valve, lift

1шт.

28

L51030

EYE

- spool

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, spool

1шт.
