Запчасти Case W14 (504) - D71228 AND D71231 BUCKET SPOOL (PARKER) (08) - HYDRAULICS

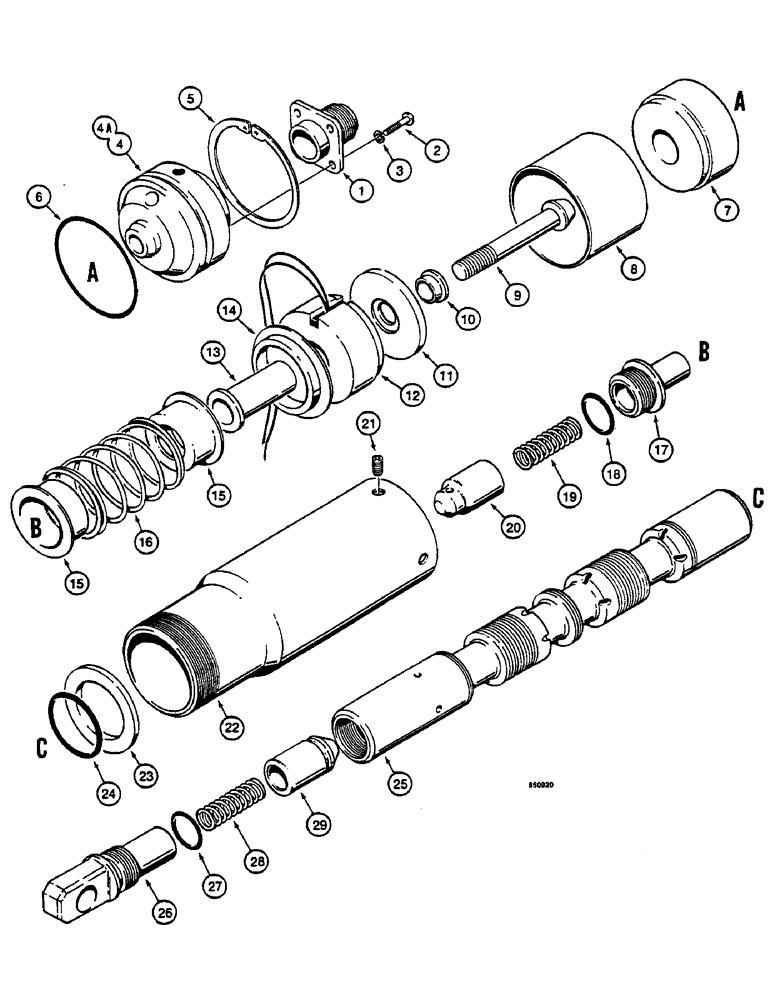

Схема запчастей Case W14 - (504) - D71228 AND D71231 BUCKET SPOOL (PARKER) (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

D71228

SPOOL

ASSEMBLY - bucket, L70430 valve, Includes: Ref. 1 - 29

1шт.

D71231

SPOOL

ASSEMBLY - bucket, L70429 valve, Includes: Ref. 1 - 29

1шт.

1

L36043

CONNECTOR, ELEC

CONNECTOR - spool

1шт.

2

187-1350

SELF-TAP SCREW,Cross Pan Hd, #4 x 5/16"

SCREW - pan head, No. 4 - 40 NC x 5/16"

4шт.

3

192-53

LOCK WASHER,#4

WASHER, LOCK, #4

4шт.

4

D71230

PLUG

- end, D71228 spool

1шт.

4a

L33768

PLUG

- end, D71231 spool

1шт.

5

L33769

SNAP RING,#187, 1.960", Int, Spiral

- end plug

1шт.

6

A15528

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

O-RING - plug

1шт.

7

L33767

BUSHING

SPACER - dummy coil, magnetic detent

1шт.

8

L33766

SPACER

- coil

1шт.

9

L35331

SCREW,3/8" - 16 x 2 1/2", Gr 5

- special, magnetic detent

1шт.

10

L33764

SPACER

- magnetic detent

1шт.

11

L35330

WASHER

- special, clapper

1шт.

12

L33762

COIL

AND HOLDER ASSEMBLY - magnetic detent

1шт.

13

L35329

TUBE

SPACER TUBE - magnetic detent

1шт.

14

L33761

WASHER

- special, coil shim

1шт.

15

A13164

RETAINER,13.49mm ID x 37.31mm OD

SEAT - spring

2шт.

16

L33758

VALVE SPRING

SPRING - centering

1шт.

17

L35328

PLUG

- spool, end, internal

1шт.

19

L35327

SPRING

- restrictor

1шт.

20

L35326

VALVE POPPET

POPPET - restrictor

1шт.

21

178-415

SET SCREW,Hdls Hex Skt, #10 - 24 x 3/8", Flat Pt

- hex socket headless, No. 10 - 24 NC x 3/8"

1шт.

22

L33759

HOUSING

- magnetic detent

1шт.

23

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

RETAINER - O-ring, outer

1шт.

24

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- spool seal, both ends

2шт.

25

NSS

NOT SOLD SEPARAT

SPOOL - valve, bucket

1шт.

26

L35768

EYE

- spool

1шт.

28

L35324

SPRING

- spool eye end

1шт.

29

L35325

SPOOL

POPPET - spool eye end

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, plug

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, spool eye end, small

1шт.

Выбрано товаров: 32
