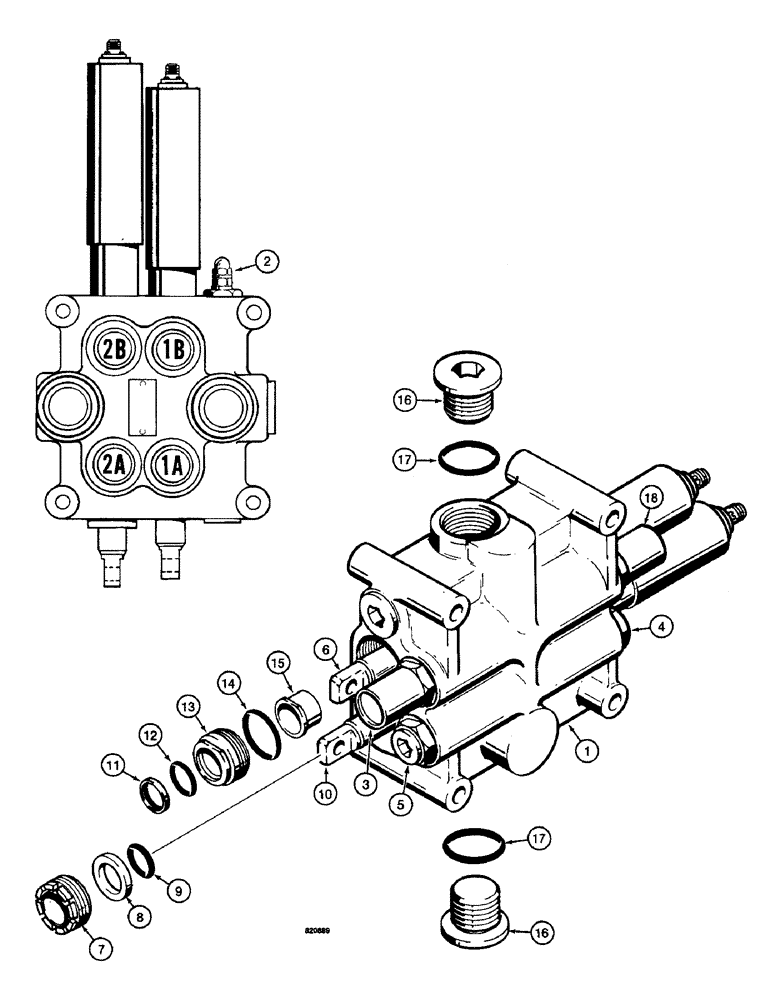

Запчасти Case W14 (500) - L70429 LOADER CONTROL VALVE (2 SPOOL PARKER) (08) - HYDRAULICS

L70429

VALVE

CONTROL VALVE - loader, 2 spool, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

L32614

VALVE

MAIN RELIEF VALVE - parts list figure 508

1шт.

3

L35386

VALVE

CIRCUIT RELIEF VALVE - used at port 1A, parts list figure 510

1шт.

4

L35320

VALVE

LOAD CHECK VALVE - used at port 2B, parts list figure 510

1шт.

5

L35321

VALVE

ANTICAVITATION AND LOAD CHECK VALVE - regeneration, used at port 2A, parts list figure 510, Includes: Ref. 6 - 18

1шт.

6

D71231

SPOOL

- bucket, parts list figure 504

1шт.

L32607

SEAL

ASSEMBLY - bucket spool, Includes: Ref. 7 and 8

1шт.

7

L32608

RETAINER

AND WIPER - spool

1шт.

8

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

RETAINER - seal

1шт.

9

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- special

1шт.

10

D71227

SPOOL

- lift, parts list figure 506

1шт.

L32610

SEAL

ASSEMBLY - lift spool, Includes: Ref. 11 - 15

1шт.

11

A28211

OIL SEAL

WIPER - spool

1шт.

12

N6577

O-RING

- small

1шт.

13

L32612

RETAINER

- seal

1шт.

14

L32613

O-RING

- large

1шт.

15

L32611

SLEEVE

- spool

1шт.

16

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

- hex socket head, 5/8"-12 NF, Includes: Ref. 17

2шт.

17

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- plug

1шт.

18

L35319

VALVE

CIRCUIT RELIEF VALVE - used at port 1B, parts list figure 510

1шт.
