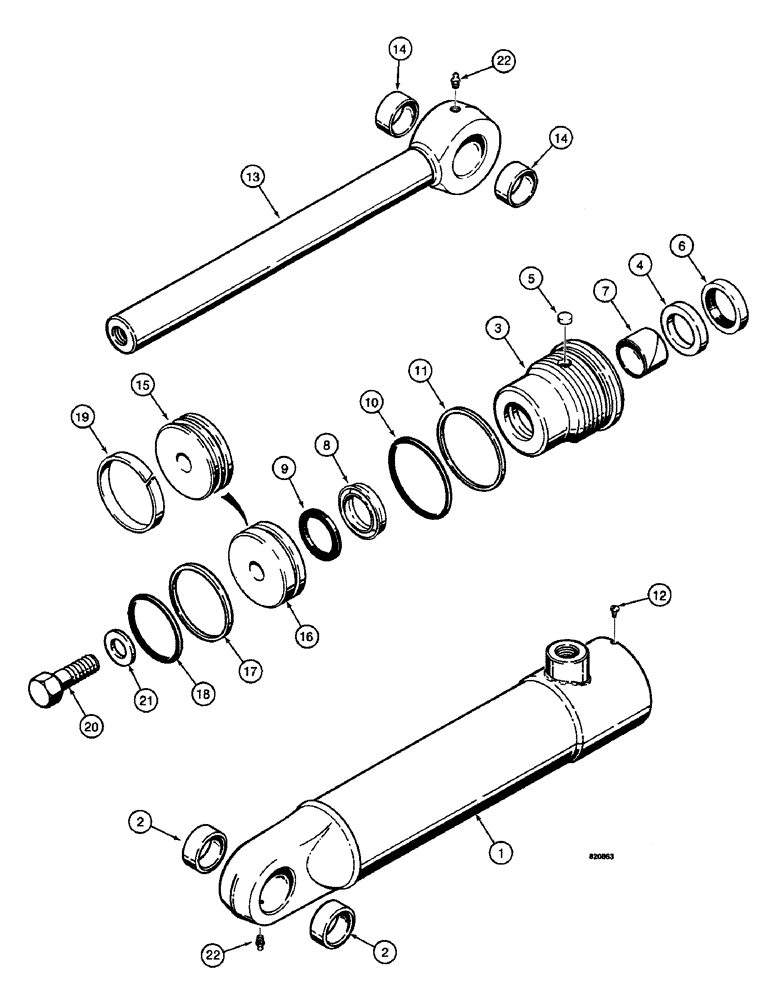

Запчасти Case W14 (496) - G100723 GRAPPLE CYLINDER (08) - HYDRAULICS

G100723

CYLINDER ASSY.

CYLINDER - 3" (76 mm) diameter x 10-1/2 (266 mm) stroke, Includes: Ref. 1 - 22

1шт.

1

G100677

TUBE,18.13" L

- cylinder, Includes: Ref. 2

1шт.

2

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- tube

2шт.

G104222

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 11

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

5

G102569

PLUG

- nylon, thread locking, gland

1шт.

6

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer

1шт.

Part of seal kit, P/N G105502

1шт.

7

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center

1шт.

Part of seal kit, P/N G105502

1шт.

8

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, wide, with O-ring

1шт.

Part of seal kit, P/N G105502

1шт.

8

G100776

SEAL

U-CUP SEAL - piston rod, service option - severe heat or cold

1шт.

9

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

- piston rod, narrow, used in addition to Ref. 8 in some glsnds

1шт.

Part of seal kit, P/N G105502

1шт.

10

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland seal

1шт.

Part of seal kit, P/N G105502

1шт.

11

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

BACKUP RING - gland

1шт.

Part of seal kit, P/N G105502

1шт.

12

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, No. 8 - 32 x 3/8", if used

1шт.

13

G100679

ROD

- piston, 1-1/2" (38 mm) diameter, Includes: Ref. 14

1шт.

14

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- piston rod

2шт.

15

G33747

PISTON

- cylinder, double groove, if used, order with (1) G100449 wear ring, if used, order Ref. 16

1шт.

16

G104108

PISTON

- cylinder, single groove, replaces G33747 piston, if used

1шт.

17

G32034

RING

BACKUP RING - piston

1шт.

Part of seal kit, P/N G105502

1шт.

18

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- piston

1шт.

Part of seal kit, P/N G105502

1шт.

19

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear, used with L33747 double grooved piston only

1шт.

Part of seal kit, P/N G105502

1шт.

20

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

21

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

G105502

SEAL

KIT - seal, Includes: Refs. 6, 7, 8, (G107921), 9, 10, 11, 17, 18, 19, same as G34656 kit

1шт.
