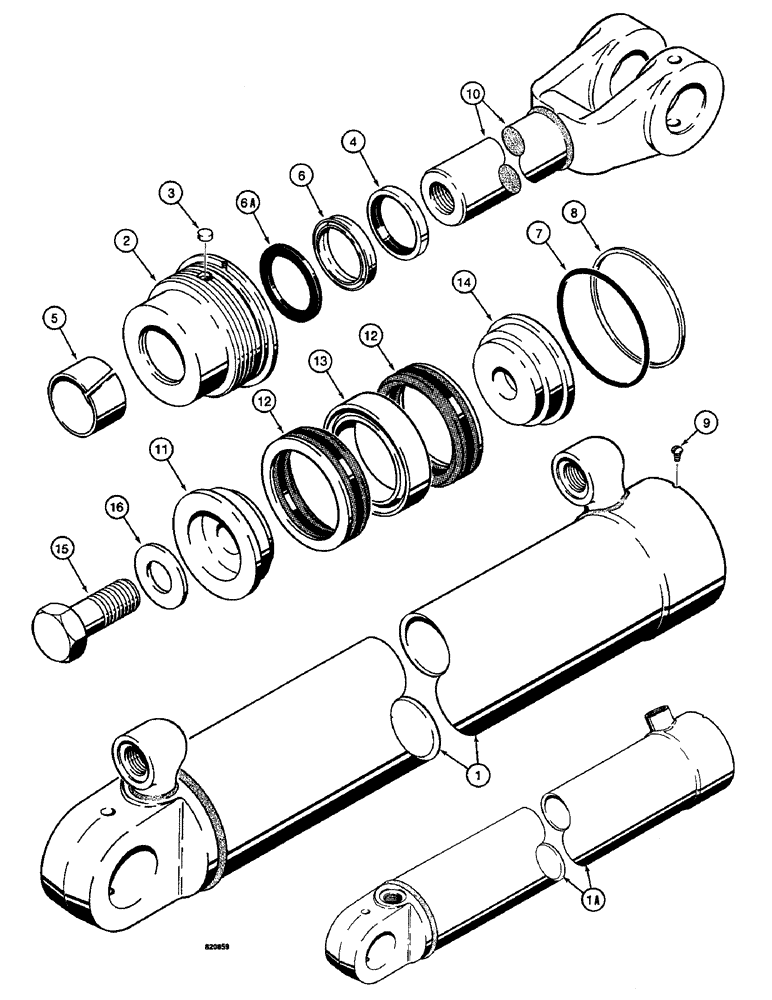

Запчасти Case W14 (488) - G101720, G101721, G33864, AND G33865 LIFT CYLINDERS (08) - HYDRAULICS

G33864

LIFT CYLINDER

CYLINDER - right-hand, 4-1/2" (114 mm) diameter x 25-3/8" (645 mm) stroke, 90 degree ports

1шт.

G33865

CYLINDER

- left-hand, 4-1/2" (114 mm) diameter x 25-3/8" (645 mm) stroke, 90 degree ports

1шт.

G101720

CYLINDER

- right-hand, 4-1/2" (114 mm) diameter x 25-3/8" (645 mm) stroke, straight ports

1шт.

G101721

CYLINDER

- left-hand, 4-1/2" (114 mm) diameter x 25-3/8" (645 mm) stroke, straight ports, Includes: Ref. 1 - 16

1шт.

1

G33866

TUBE

- G33864 cylinder, 90 degree ports

1шт.

1

G33867

TUBE ASSY.

TUBE - G33865 cylinder, 90 degree ports

1шт.

1a

G101722

TUBE

- G101720 cylinder, straight ports

1шт.

1a

G101723

TUBE

- G101721 cylinder, straight ports

1шт.

G104950

GLAND

ASSEMBLY - cylinder, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

4

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod

1шт.

Part of seal kit, P/N G105520

1шт.

5

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

- Center

1шт.

Part of seal kit, P/N G105520

1шт.

6

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, wide, with O-ring

1шт.

Part of seal kit, P/N G105520

1шт.

6

G100779

SEAL

U-CUP SEAL - piston rod, service option - severe heat or cold

1шт.

6a

G109086

RING

SEAL - piston rod, narrow, used in addition to Ref. 6 in some glands

1шт.

Part of seal kit, P/N G105520

1шт.

7

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

- gland seal

1шт.

Part of seal kit, P/N G105520

1шт.

8

G32284

BACK-UP RING

BACKUP RING - gland

1шт.

Part of seal kit, P/N G105520

1шт.

9

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self tapping, No. 8 - 32 NC x 3/8", if used

1шт.

10

G33870

ROD

- piston, 2-1/4" (57 mm) diameter

1шт.

11

D46931

PISTON

- split, bolt half

1шт.

12

D47205

PACKING

ASSEMBLY - piston, V-type

2шт.

Part of seal kit, P/N G105520

1шт.

13

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

SPACER - packing

1шт.

14

D46425

PISTON

- split, rod half

1шт.

15

28-2052

BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8

- hex head, 1-1/4"-12 NF x 3-1/4", grade 8

1шт.

16

G32351

WASHER

- hardened

1шт.

G105520

GASKET KIT

KIT - seal, Includes: Refs. 4, 5, 6, 6A, 7, 8, 12, same as G34628 kit

1шт.
