Запчасти Case W14 (482) - L56060 RELIEF VALVE (08) - HYDRAULICS

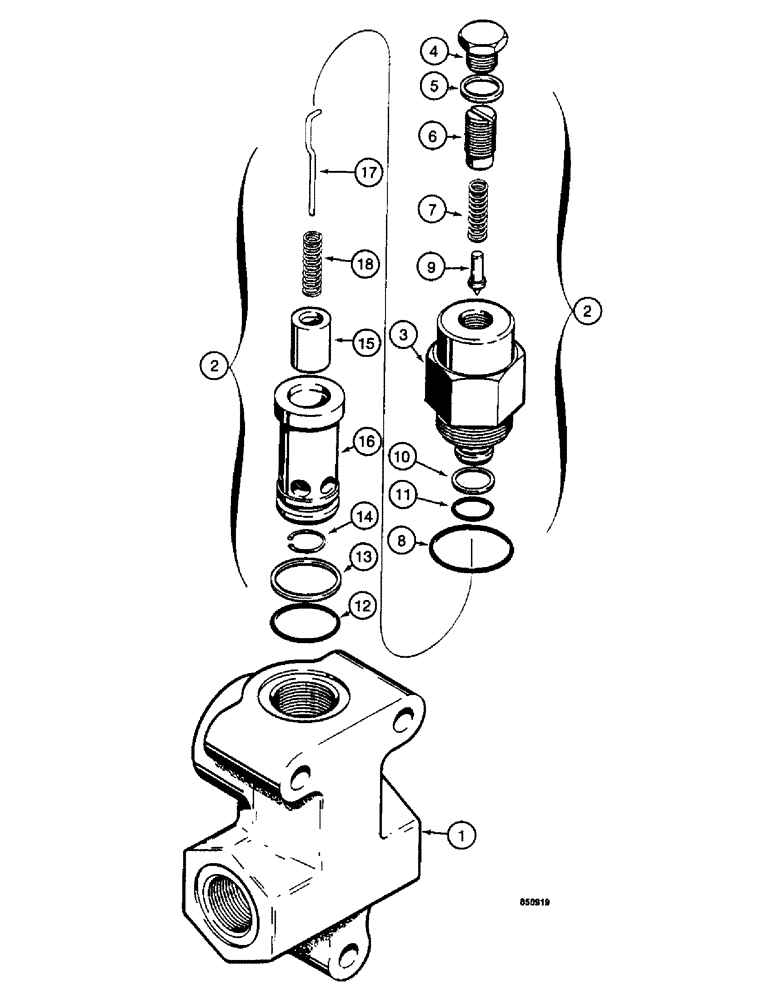

Схема запчастей Case W14 - (482) - L56060 RELIEF VALVE (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

L56060

VALVE

RELIEF VALVE ASSEMBLY - 35 backhoe, Includes: Ref. 1 - 18

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - relief valve

1шт.

2

N9260

CARTRIDGE

RELIEF VALVE - 35 backhoe, not preset, refer to Service Manual for correct pressure settings and set accordingly, Includes: Ref. 3 - 18

1шт.

3

L35648

BODY

- cage assembly

1шт.

4

L35645

CAP

- cage assembly

1шт.

5

L35646

GASKET

- cap

1шт.

6

L35647

SCREW - adjusting

1шт.

7

L35649

VALVE SPRING

SPRING - poppet

1шт.

8

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- body to housing

1шт.

9

L35650

VALVE POPPET

POPPET - cage

1шт.

10

L35403

RING

WASHER - backup

1шт.

11

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- inner and outer case assemblies

1шт.

12

D51516

O-RING

- cylinder

1шт.

13

D51530

RING

WASHER - backup

1шт.

14

G46147

SNAP RING,0.625", Int, #62

Ring, Snap, , piston 0.625", Int, #62

1шт.

L35967

KIT

- repair, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

PISTON - cage assembly

1шт.

16

NSS

NOT SOLD SEPARAT

CYLINDER - cage assembly

1шт.

17

L35643

PIN

- relief

1шт.

18

L35642

VALVE SPRING

SPRING - piston

1шт.

Выбрано товаров: 20
