Запчасти Case W14 (480) - SELECTOR VALVE AND CONTROL (08) - HYDRAULICS

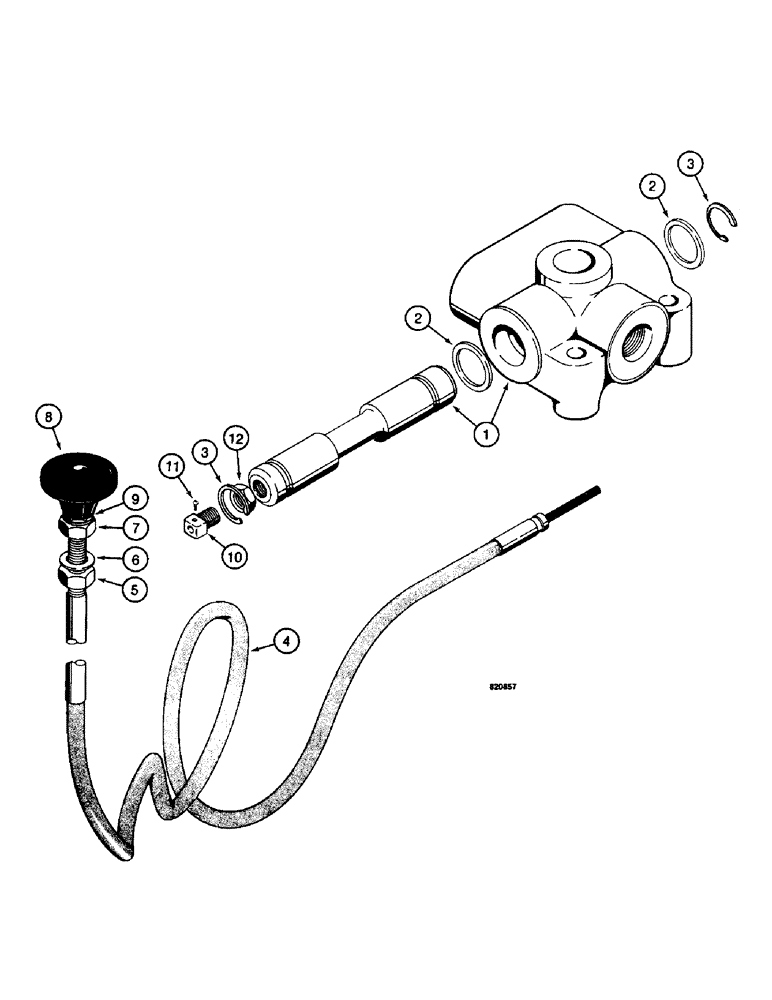

Схема запчастей Case W14 - (480) - SELECTOR VALVE AND CONTROL (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

L55038

VALVE

- selector, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - selector valve

1шт.

2

R24866

RING

SEAL - quad ring, spool

2шт.

3

D23692

SNAP RING,#100, Ext, Crescent

Ring, Snap, , spool #100, Ext, Crescent

2шт.

L55748

CABLE

ASSEMBLY - selector valve, Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

CABLE - selector valve

1шт.

5

87016560

JAM NUT,Jam, 3/8"-16, G5

- hex, 3/8"-24 NF

1шт.

6

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

7

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex, 3/8"-24 NF

1шт.

8

L35895

KNOB

- selector

1шт.

9

129-141

JAM NUT,Jam, 1/4"-20, G5

1шт.

10

L55199

SCREW,3/8" - 16 x 1"

- special

1шт.

11

169-73

SCREW,Fil Hd, #8 - 32 x 1/4"

- fillister head, No. 8 - 32 NC x 1/4"

1шт.

12

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex, lock, 3/8"

1шт.

Выбрано товаров: 14
