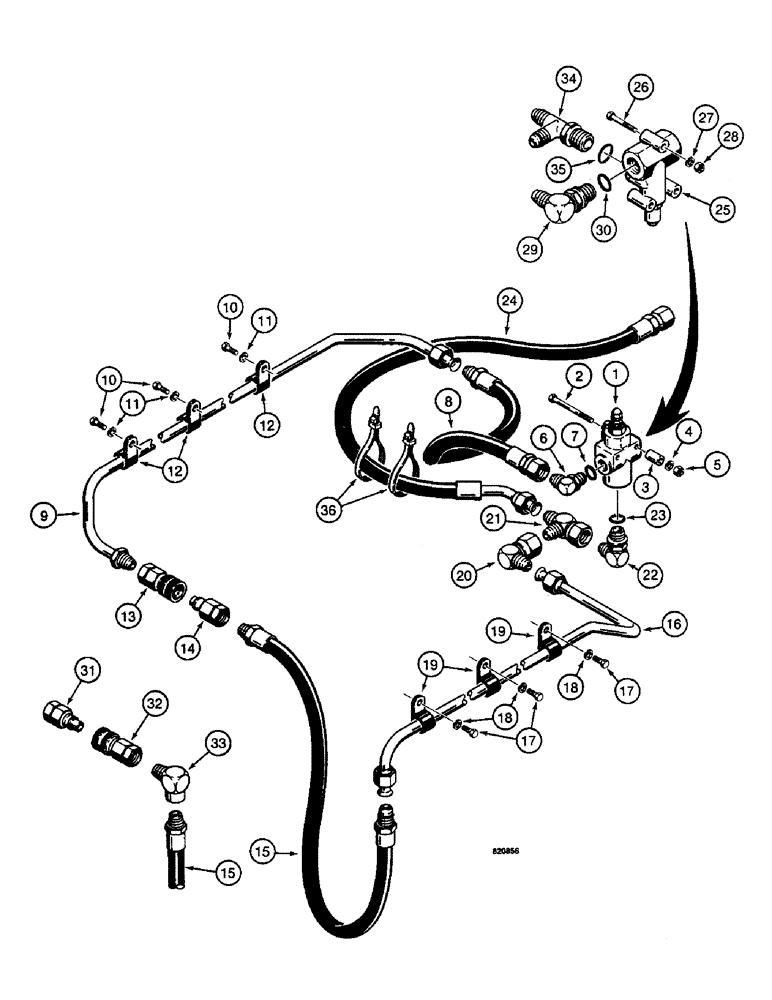

Запчасти Case W14 (478) - BACKHOE HYDRAULIC CIRCUIT, RELIEF VALVE TO BACKHOE RETURN (08) - HYDRAULICS

1

L104049

VALVE

RELIEF VALVE - 35A and 35C backhoe, parts list figure 484

1шт.

2

13-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16"-18 NC x 3-1/2"

2шт.

3

D34089

SPACER

- relief valve

2шт.

4

92-5

LOCK WASHER,5/16"

2шт.

5

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16"-18 NC

2шт.

6

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, 35A and 35C backhoe, Includes: Ref. 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

8

D31794

HOSE ASSY.

HOSE - backhoe supply

1шт.

9

L104775

TUBE ASSY.,0.75" OD

TUBE - backhoe supply

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

11

92-6

LOCK WASHER,3/8"

3шт.

12

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- tube

3шт.

13

D52800

COUPLING, QUICK, FEM

COUPLING - female, 35A and 35C backhoe, parts list figure 486

1шт.

14

D52694

QUICK MALE COUPLING

COUPLING - male, 35A and 35C backhoe, parts list figure 486

1шт.

15

L100420

HOSE,0.75" ID x 45.00"

Backhoe 0.75" ID x 45.00"

1шт.

16

L104777

TUBE ASSY.,0.75" OD

TUBE - backhoe return

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

18

92-6

LOCK WASHER,3/8"

3шт.

19

59858

SPARE PART

CLAMP - tube

3шт.

20

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

21

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

Backhoe return, 35A and 35C backhoe 37º, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

22

L114091

FITTING

ELBOW - 90 degree, 35A and 35C backhoe, Includes: Ref. 23

1шт.

23

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow, 35A backhoe

1шт.

24

L107666

HOSE ASSY.

HOSE - to manifold, 35A and 35C backhoe

1шт.

25

L56060

VALVE

RELIEF VALVE - 35 backhoe, parts list figure 482

1шт.

26

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex head, 3/8"-16 NC x 2-1/2"

3шт.

27

92-6

LOCK WASHER,3/8"

3шт.

28

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

3шт.

29

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, 35 backhoe, Includes: Ref. 30

1шт.

30

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow, 35 backhoe

1шт.

31

D52694

QUICK MALE COUPLING

COUPLING - male, 35 backhoe, parts list figure 486

1шт.

32

D52800

COUPLING, QUICK, FEM

COUPLING - female, 35 backhoe, parts list figure 486

1шт.

33

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

35 backhoe 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

34

218-5585

TEE,37 Degree, 1 1/16"-12, 1 5/16"-12 O-Ring Run, 1 1/16"-12

- special, 35 backhoe, Includes: Ref. 35

1шт.

35

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- tee, 35 backhoe

1шт.

36

L18337

CABLE TIE,9.95"-12.1" lg

TIE STRAP - hose to fill tube, 35 backhoe

2шт.
