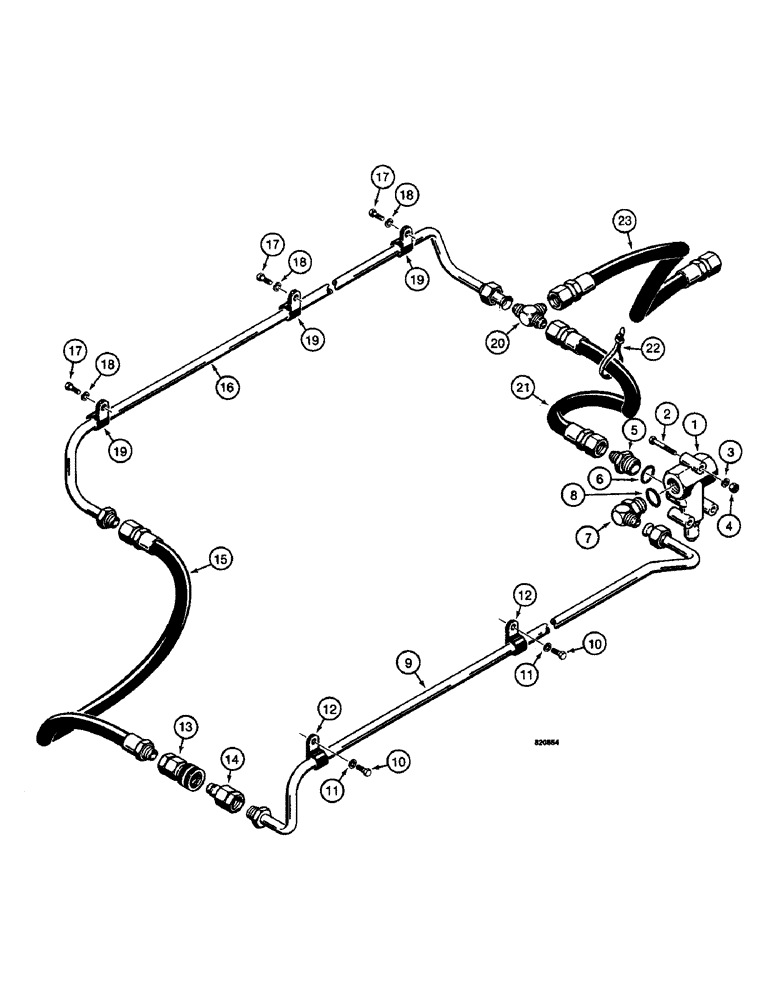

Запчасти Case W14 (474) - BACKHOE HYDRAULIC CIRCUIT, RELIEF VALVE TO BACKHOE RETURN (08) - HYDRAULICS

1

L56060

VALVE

RELIEF VALVE - backhoe, parts list figure 482

1шт.

2

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex head, 3/8"-16 NC x 2-1/2"

3шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

3шт.

5

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, Incl. Ref. 6

1шт.

6

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

7

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, adjustable, Includes: Ref. 8 and 9

1шт.

8

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

9

L55519

TUBE,0.75" OD

- backhoe supply

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- tube

2шт.

13

D52800

COUPLING, QUICK, FEM

COUPLING - female, parts list figure 486

1шт.

14

D52694

QUICK MALE COUPLING

COUPLING - male, parts list figure 486

1шт.

15

36232

HOSE ASSY.

HOSE - backhoe

1шт.

16

L55523

TUBE,0.75" OD

- backhoe return

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

18

92-6

LOCK WASHER,3/8"

3шт.

19

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- tube

3шт.

20

218-596

TEE,1 1/16"-12 37 Degree

- backhoe return

1шт.

21

L54982

HOSE

- relief valve

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

23

L55004

HOSE

, Serial Range: --manifold

1шт.
